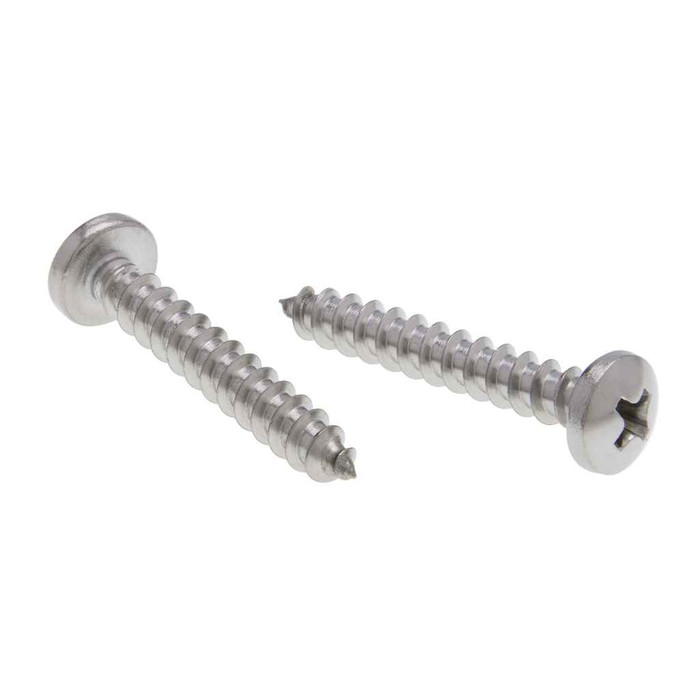

Metallics JSTSP13 8 x 1/2 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

Metallics #8 x 1/2 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel, 100 Pack

(No reviews yet) Write a Review

Model: JSTSP13
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Metallics #8 x 1/2 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel

Professional Grade Stainless Steel Fasteners for Electrical Applications

Metallics delivers professional-grade Type A tapping screws engineered for reliable fastening in electrical, plumbing, and HVAC applications. These #8 x 1/2 in. pan head Phillips screws feature 18-8 stainless steel construction with gimlet point design for secure attachment to aluminum or steel substrates. Manufactured to ASME B18.6.3-2013 dimensional standards with 15 threads per inch for consistent performance.

Professional Features & Benefits

  • 18-8 Stainless Steel Construction: Provides excellent corrosion resistance and durability for long-term electrical installations.
  • Type A Tapping Design: Self-tapping capability eliminates pre-drilling requirements, reducing installation time and labor costs.
  • Pan Head Phillips Drive: Standard #2 Phillips driver compatibility ensures easy installation with common tools.
  • Gimlet Point: Sharp point design penetrates materials cleanly for secure threading and reduced splitting.
  • ASME B18.6.3-2013 Compliance: Meets dimensional standards for consistent fit and professional installation quality.
  • 39 lb-in Minimum Torsional Strength: Engineered strength rating ensures reliable holding power under operational stress.
  • 15 Threads Per Inch: Fine thread pitch provides superior grip and resistance to loosening in vibration environments.

Technical Specifications

  • Arra Compliant: N
  • Buy American Compliant: No
  • Country Of Origin: MUL
  • Department: Electrical
  • Dimensional Standard: ASME B18.6.3-2013
  • Division: Electrical H1
  • Drive Type: Phillips
  • Driver Size: #2
  • Fastener Head Height: 0.105 - 0.115 in.
  • Fastener Head Type: Pan
  • Fastener Head Width: 0.306 - 0.322 in.
  • Fastener Length: 2-Jan
  • Field Application: Electrical, Plumbing, Heating and Air Conditioning Industries
  • Height: 2.15 in
  • Language Code: EN
  • Material: 18-8 Stainless
  • Neurspe: https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
  • Order Minimum Imperial: 100
  • Order Minimum Uom Imperial: JR
  • Pack Type: Jar
  • Phillips Recess Depth: 0.108
  • Phillips Recess Diameter: 0.169 - 0.182
  • Phillips Recess Width: 0.03
  • Product Details: Type A Tapping Screw
  • Product Family: Electrical Supplies
  • Product Group: Fasteners
  • Product Height: 54.61 MM
  • Product Length: 3 in
  • Product Subgroup: Screws
  • Product Type: Type A Tapping Screw
  • Product Weight: 177 g
  • Product Width: 76.2 MM
  • Screw Point Type: Gimlet Point
  • Series: JSTSP
  • Sub Division: Electrical-E H2
  • Thread Per Inch: 15
  • Thread Standard: ASME B18.6.4
  • Torsional Strength: 39 lb-in minimum
  • Type2: Type A Tapping Screw
  • Weight: 0.39 lbs
  • Width: 3 in

Professional Applications

  • Electrical Panel and Enclosure Assembly
  • HVAC Equipment Installation
  • Plumbing System Components
  • Commercial Building Maintenance
  • Industrial Equipment Mounting
  • Residential Electrical Projects
  • Professional Service and Repair

Why Choose Metallics Quality?

Metallics fasteners deliver consistent performance with precision manufacturing to ASME dimensional standards. The 18-8 stainless steel construction provides long-term corrosion resistance, while the engineered torsional strength rating ensures reliable holding power in demanding electrical applications. Professional contractors trust Metallics for quality fastening solutions that meet industry requirements.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.105 - 0.115 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.306 - 0.322 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.108
Phillips Recess Diameter:
0.169 - 0.182
Phillips Recess Width:
0.03
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.39 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.4
Torsional Strength:
39 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTSP
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTSP13 – Frequently Asked Questions

1) Do I need to pre-drill for Metallics #8 x 1/2 in. Type A tapping screws?
Type A tapping screws thread their own way in. The gimlet point on the Metallics JSTSP13 cuts into sheet metal or thin stock without a pilot hole in most cases, which is why they show up in panel and enclosure work. In heavier steel you'll still want a pilot to protect the screw, since torsional strength is rated at 39 lb-in minimum and over-torquing a #8 head snaps it.
2) Will 18-8 stainless tapping screws hold up in a damp or outdoor electrical enclosure?
18-8 stainless is the material on the JSTSP13, so corrosion resistance is far better than a plated carbon steel tapper in humid, washdown, or coastal-adjacent conditions. Stainless also avoids the galvanic problem you get running zinc-plated screws into aluminum enclosures, which matters given these are pointed at electrical, plumbing, and HVAC work.
3) Will a Metallics #8 x 1/2 in. tapping screw hold in thick steel, or is it for sheet metal only?
At 1/2 in. long, you get very little engagement once you allow for the head bearing and material thickness, so these are for sheet metal, thin plate, strut accessories, and enclosure hardware rather than structural or heavy plate work. Thread pitch is 15 per inch, which is what lets a short screw pick up enough turns in thin stock. For thicker assemblies step up to a longer screw in the same series.
4) Do Metallics JSTSP13 screws qualify for a Buy American or ARRA job?
No. These are flagged not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic-content requirement on fasteners, these will not satisfy it and you need a domestically sourced screw instead.
5) What size driver bit do these Metallics pan head Phillips screws take?
A #2 Phillips. The recess is dimensioned at 0.169 to 0.182 in. diameter and 0.108 in. deep, so a standard #2 bit seats fully. Stainless cams out more readily than hardened steel, so use a sharp bit and steady pressure rather than high speed.
6) Are these screws made to a recognized dimensional standard for spec submittals?
Yes. The JSTSP13 is built to ASME B18.6.3-2013 for dimensions, with threads to ASME B18.6.4. That gives a submittal reviewer a named standard for head geometry, recess, and thread form instead of a house spec, which is usually what an institutional or government job wants on the fastener line.
7) Type A tapping screw vs. self-drilling Tek screw: which do I want for an electrical enclosure?
A Type A like the JSTSP13 has a gimlet point that forms threads but does not drill its own hole, so it suits thin sheet, soft aluminum, or an existing punched hole. A self-drilling screw carries a drill tip and is the one you reach for when you have to get through heavier gauge steel in one pass. For attaching accessories to a punched enclosure or panel, the Type A is the cleaner, less aggressive choice.
8) How are these tapping screws packaged and what is the minimum I can buy?
They come in a jar of 100, and 100 is the minimum order quantity. The jar weighs 0.39 lbs, so a service van can carry several sizes without much penalty. For repeat MRO stocking this is the practical unit; there is no smaller break.
9) Will these stainless screws work loose from vibration on HVAC equipment?
The 15 threads per inch pitch gives more thread engagement per inch of penetration than a coarse tapper, which helps resistance to backing out under vibration. On rotating or blower-mounted equipment, still pair them with a lock washer or thread locker if the assembly sees continuous vibration; thread pitch alone is not a locking feature.
