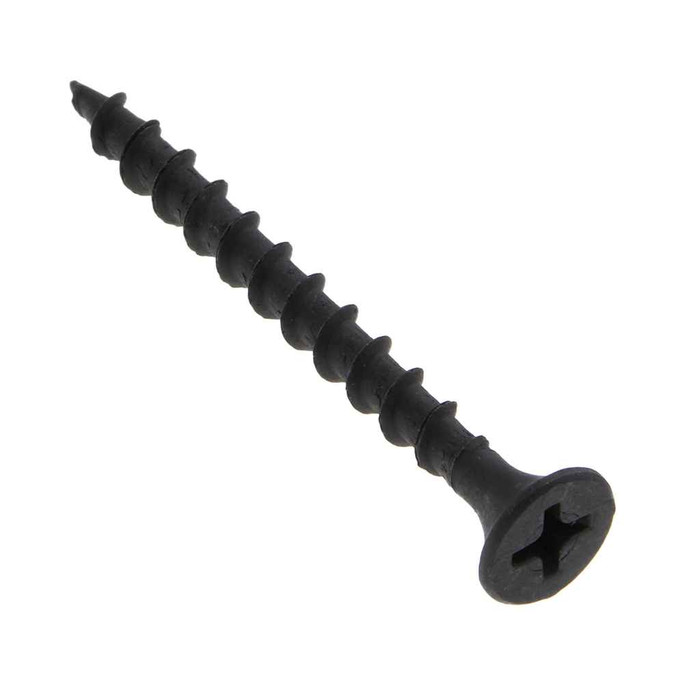

Metallics JDWC101C 8 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - 100qty

Metallics JDWC101C 8 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - Each

(No reviews yet) Write a Review

Model: JDWC101C
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.26
$0.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - 100qty

  • Features

    • 8 Diameter, 2" Length
    • Coarse Threads
    • Bugle Head with Phillips Drive
    • Steel Black Phosphate Material

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.039 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.363 in.
Fastener Length:
2
Hardness:
Rockwell C45-64
Language Code:
EN
Material Standard:
AISI 1018
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
8 to 10
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
JDWC and DWC
Product Finish:
Black Phosphate/Galvanized
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics JDWC101C – Frequently Asked Questions

1) Do Metallics JDWC drywall screws qualify for Buy American or ARRA projects?
No. These screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your federal, state, or institutional contract carries a domestic-content clause, these will not satisfy it and you will need a domestically produced fastener instead.
2) What size Phillips bit do I need to drive these Metallics drywall screws?
A #2 Phillips bit. The recess is 0.124 inch deep and 0.176 to 0.201 inch across, which is the standard PH2 geometry. Load a #2 insert bit in your screw gun or collated driver and set the depth stop so the bugle head dimples the paper without tearing it.
3) Will a bugle head screw sit flush enough to tape and mud over?
That is what the bugle head is for. The head on the JDWC101C measures 0.315 to 0.363 inch wide with a head height of only 0.020 to 0.039 inch, so the tapered underside pulls into the face paper and leaves a shallow dimple rather than a proud ring. Drive it just below the surface and joint compound covers it in two coats.
4) How many screws come in a jar, and is there an order minimum?
These ship in a jar with a minimum order of 100 count. One jar is the base buying unit, so plan quantities in multiples of 100 rather than by the piece.
5) Are these drywall screws hard enough that the heads won't snap off when I drive them?
The JDWC101C is case hardened to Rockwell C45-64 and made from AISI 1018 steel, which is the standard hardness band for drywall screws driven with a gun. That hardness is what lets the thin bugle head and #2 recess take torque without cam-out, but it also means the screw is brittle in shear, so it is not a structural or framing fastener.
6) Is the thread pitch on these #8 coarse screws consistent enough to hold in softwood?
Thread count runs 8 to 10 threads per inch on this coarse UNC screw. That wide spacing is what clears chips and grips in softwood framing or OSB without stripping. In hardwood blocking, pre-drill to avoid snapping the shank.
7) Will the head size vary between boxes of these drywall screws?
Expect minor variation. Metallics states outright that there is no single industry standard for drywall screw or bugle head dimensions, so the published head width of 0.315 to 0.363 inch and head height of 0.020 to 0.039 inch are ranges rather than fixed values. Practically this never matters for taping, but if you are matching a collated gun strip or a tight depth setting, run a test driver.
