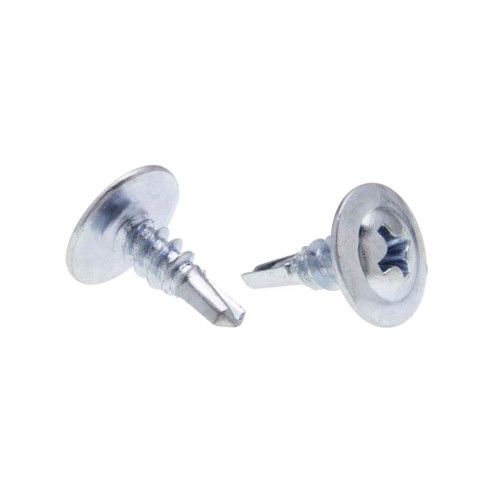

8 x 3/4 in. Wafer Head Phillips Drywall Screws - Steel Zinc - 100qty
Features
- Steel Zinc Material
- 8 Diameter, 3/4" Length
- Wafer Head with Phillips Drive
- Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
Additional Notes
- Other sizes and quantities available by request | There is no single standard for Wafer head dimensions. These values are offered as a guide; deviations from these specifications may occur. | This table is only a guide and does not constitute a warranty of any type .
Manufacturer Resources
Product Specs
- All Self Drilling Screws Offer Economical Benefits:
- reduces labour and tooling costs; reduces or eliminates drill bits and taps
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Collection Folder:
- JWDS2C
- Country Of Origin:
- MUL
- Division:
- Electrical H1
- Drive Type:
- Phillips
- Driver Size:
- #2
- Fastener Head Type:
- Wafer
- Fastener Head Width:
- 0.359 - 0.38 in.
- Fastener Length:
- 4-Mar
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Finish:
- Zinc
- Hardness:
- Rockwell C32-40
- Height:
- 2.15 in
- Igcc:
- 2756
- Language Code:
- EN
- Length:
- 3 in
- Material:
- Steel Zinc
- Material Standard:
- AISI 1016 - 1024
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Wafer_Hd_Phil_Self-Drill_Tap_Dry_Scr.pdf
- Npd Date Electrical:
- 2005-01-05T00:00:00.000Z
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Panel Thickness:
- 0.350 - 0.100 IN
- Phillips Recess Depth:
- 0.255
- Phillips Recess Diameter:
- 0.176 - 0.189
- Product Family:
- Electrical Supplies
- Product Height:
- 54.61 MM
- Product Length:
- 76.2 MM
- Product Series:
- WDS
- Product Weight:
- 254 g
- Product Width:
- 76.2 MM
- Screw Point Type:
- Drill Point
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 18
- Thread Standard:
- SAE J78 - 2013
- Thread Type:
- UNF
- Torsional Strength:
- 42 lb-in minimum
- Type:
- Type BSD Self-Drilling & Tapping Drywall Screw
- Wafer Thickness:
- 0.025 - 0.035 IN
- Weight:
- 0.56 lbs
- Width:
- 3 in
- Product Type:
- Self-Drilling & Tapping Screw
