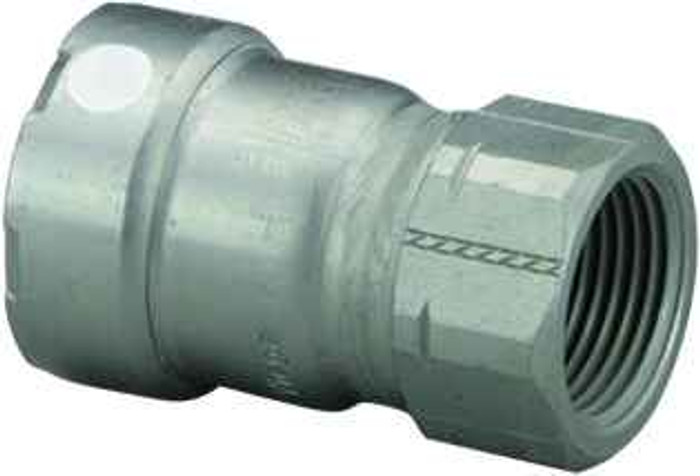

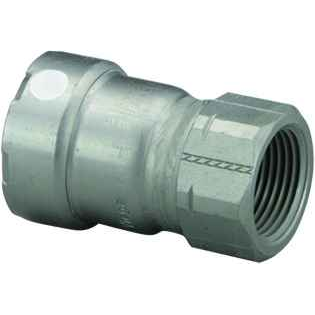

84275 Viega MegaPress adapter Smart Connect technology Carbon steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Tee
- Product Length:
- 2.291"
- Product Height:
- 1.264"
- Product Weight:
- 0.251 lbs
- Product Width:
- 1.264"
- Product Material:
- Carbon steel
Viega 84275 – Frequently Asked Questions
1) What connections does the Viega MegaPress 84275 adapter have?
The Viega 84275 MegaPress adapter is P x FPT: one press end and one female NPT thread, both 1/2 inch. The press side goes onto 1/2 inch carbon steel pipe with a MegaPress jaw; the threaded side accepts a 1/2 inch male NPT nipple, valve, gauge, or sensor.
2) Can I use the Viega 84275 MegaPress fitting on copper or PEX?
No. The 84275 is a carbon steel MegaPress fitting, made for black iron or carbon steel pipe. Copper needs a ProPress copper fitting and PEX needs a PureFlow fitting; the sealing element and press profile are not interchangeable.
3) How much room do I need around the 84275 MegaPress adapter to get the press jaw in?
The body is compact: 2.291 inches long and 1.264 inches across in both height and width. Allow clearance beyond that footprint for the press jaw to close squarely around the press end, which is the usual constraint in tight mechanical rooms and ceiling spaces.
4) What is the Viega MegaPress carbon steel adapter actually used for on a job?
It is the transition piece between pressed carbon steel pipe and anything threaded, 1/2 inch to 1/2 inch. Typical uses are tying a gauge, ball valve, drain, or branch takeoff into a black steel line without breaking out a threader, common on hydronic and compressed air retrofits in occupied buildings where hot work permits are a problem.
5) Is the Viega 84275 a tee with three openings?
No, treat it as a two-end adapter: one 1/2 inch press connection and one 1/2 inch female threaded connection. If you need a three-way branch in pressed carbon steel, you want a MegaPress tee instead.
6) What is the Viega part number and weight for the 1/2 inch MegaPress P x FPT adapter?
Order by Viega part 84275. It weighs 0.251 lbs and is made in Germany, which matters for procurement packages that require country of origin on submittals.
