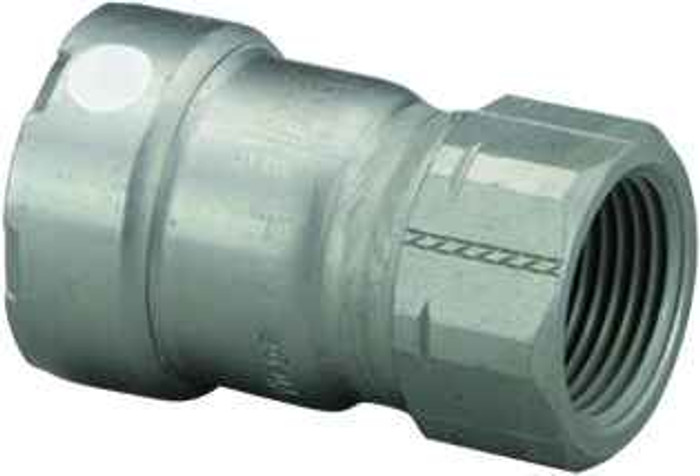

84750 Viega MegaPress adapter Smart Connect technology Carbon steel, 3/4'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Adapter
- Product Length:
- 2.425"
- Product Height:
- 1.494"
- Product Weight:
- 0.306 lbs
- Product Width:
- 1.494"
- Product Material:
- Carbon steel
Viega 84750 – Frequently Asked Questions
1) What connections does the Viega MegaPress 84750 adapter have?
The 84750 is a press x female threaded adapter: a 3/4 inch MegaPress press end that goes onto black iron or carbon steel pipe, and a 1/2 inch FPT female thread on the other side. So it takes you from pressed pipe to a male-threaded component like a gauge, valve tailpiece, or sensor well without welding or cutting threads on site.
2) Do I need a press tool for the Viega 84750, or can I thread it on?
Only one side threads. The 1/2 inch FPT end accepts a male thread by hand, but the 3/4 inch end is a press connection and has to be crimped with a press tool and the correct MegaPress jaw or ring for 3/4 inch. There is no threaded or soldered option on that end.
3) Will the Viega 84750 fit 1/2 inch pipe on the press side?
No. The press end is sized for 3/4 inch pipe only; the 1/2 inch figure is the female thread size. For a 1/2 inch press end you need a different MegaPress adapter size.
4) Is the Viega 84750 MegaPress fitting carbon steel or stainless?
Carbon steel. That matches it to black iron and carbon steel pipe systems, which is where MegaPress is normally used. If your line is stainless, you need a stainless press fitting instead, not this one.
5) What does Smart Connect mean on a Viega MegaPress fitting?
Smart Connect is Viega's feature that deliberately leaks a small amount at an unpressed connection during pressure testing, so an installer can spot a joint that was missed before the system is put into service. On a job with dozens of presses in a ceiling, that is how you find the one that didn't get crimped.
