Metallics RSDS5B 9 x 2-1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.21
$0.21
Metallics RSDS5B 9 x 2-1/2 in. Bugle Head Star Drive Deck Screws - Steel Yellow Zinc - Type 17 - Threads - 1190qty

Metallics RSDS5B 9 x 2-1/2 in. Bugle Head Star Drive Deck Screws - Steel Yellow Zinc - Type 17 - Threads - Each

(No reviews yet) Write a Review

Model: RSDS5B
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.21
$0.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
9 x 2-1/2 in. Bugle Head Star Drive Deck Screws - Steel Yellow Zinc - Type 17 - Threads - 1190qty

  • Additional Notes

    • Other sizes and quantities available by request | In the absence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable.

  • Features

    • Steel Yellow Zinc Material
    • Bugle Head with Star Drive Drive
    • The deeper thread design offers greater resistance to pull-out forces.
    • 9 Diameter, 2-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
1190 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Star (Flat Six-Lobe)
Driver Size:
T25
Fastener Head Height:
0.124 - 0.124 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.316 - 0.358 in.
Fastener Length:
2/1/02
Language Code:
EN
Material Standard:
AISI 1018 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Star_Drive_Type_17_Deck_Screw.pdf
Order Minimum Imperial:
1190
Order Minimum Uom Imperial:
TH
Pack Type:
Box
Product Group:
Fasteners
Product Height:
6 in
Product Length:
7.25 in
Product Weight:
14.28 lbs
Product Width:
6.25 in
Screw Point Type:
Type 17
Sub Division:
Electrical-E H2
The Chip Cavity Or Auger Point Enables The Fastener To Drive Especially In Denser Woods:
without pre-drilling a pilot hole.
Thread Per Inch:
9
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Deck Screw
Type2:
Deck Screw
Series:
RSDS
Product Finish:
Yellow Zinc Dichromate
Product Details:
Deck Screw
Product Material:
Steel Yellow Zinc

Metallics RSDS5B – Frequently Asked Questions

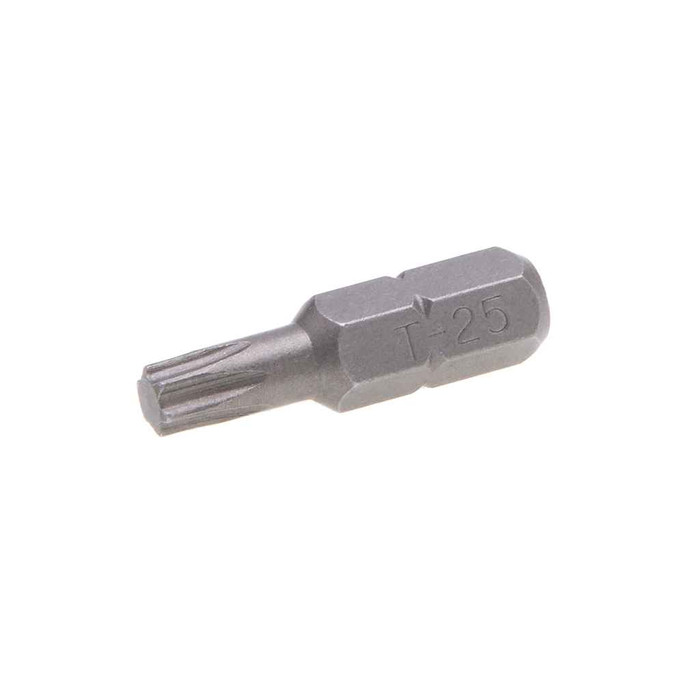

1) What driver bit do I need for the Metallics RSDS5B deck screws?
A T25 star bit. The RSDS5B uses a flat six-lobe (star) recess, so a T25 Torx-style driver seats fully and resists cam-out when you are sinking the bugle head flush into decking.
2) Do I have to pre-drill for these #9 x 2-1/2 inch deck screws in hardwood?
No. The RSDS5B has a Type 17 auger point, and the chip cavity lets the screw drive even in denser woods without a pilot hole. In very brittle or thin stock near an edge you may still want a pilot to avoid splitting, but the point is designed to cut its own.
3) Are yellow zinc deck screws OK for pressure-treated lumber outdoors?
The RSDS5B is carbon steel with a yellow zinc dichromate finish. That coating handles general exterior deck and framing work, but it is not stainless. For coastal exposure, standing moisture, or direct contact with the newer copper-based treated lumber over a long service life, a stainless or heavy polymer-coated deck screw is the safer call.
4) How many Metallics RSDS5B screws come in a box?
They ship as a box of 1,190 pieces, which is also the order minimum. There is no smaller split pack on this item.
5) Will the bugle head countersink itself or do I need to counterbore?
It self-countersinks in wood. The head measures 0.316 to 0.358 inch across and only 0.124 inch high, so the tapered bugle underside draws itself flush into softwood or composite-free decking as you drive. No counterbore needed.
6) Do Metallics RSDS5B deck screws qualify for a Buy American or ARRA job?
Metallics lists the RSDS5B as both Buy American compliant and ARRA compliant. Country of origin is listed as multiple, so if a specific project spec requires documented domestic melt and manufacture, ask for the mill paperwork on the lot you receive.
7) What steel are these Metallics deck screws made from?
AISI 1018 to 1022 low-carbon steel, finished in yellow zinc dichromate. That is the standard grade for a case-hardened wood screw, which is what gives the Type 17 point enough hardness to cut without the shank being brittle.
8) How much does a box of 1,190 of these deck screws weigh for shipping or carrying up a ladder?
About 14.28 lbs per box. Worth knowing if you are staging material on a roof deck or a balcony job where you are carrying by hand.
