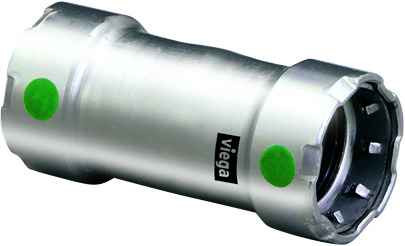

90315 Viega MegaPress coupling No stop Smart Connect technology 316 stainless steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Tee
- Product Length:
- 3.012"
- Product Height:
- 1.496"
- Product Weight:
- 0.291 lbs
- Product Width:
- 1.496"
- Product Material:
- 316 stainless steel
Viega 90315 – Frequently Asked Questions
1) What does the "no stop" mean on the Viega 90315 MegaPress coupling, and when would I use one?
No stop means there is no internal shoulder in the middle of the coupling, so the pipe can slide all the way through. That is what you want on a repair or a tie-in where both pipe ends are already fixed in place and you cannot spring them apart. You slide the coupling fully onto one side, bring the second pipe in, then center the coupling and press both ends. On a standard coupling with a stop, the pipe bottoms out and you would have to cut the line open to get it in.
2) Is the Viega 90315 coupling actually a tee?
No. Despite how it can get filed, the 90315 is a straight two-end coupling, 3/4 inch to 3/4 inch, press by press. There is no branch outlet. If you need a 3/4 inch branch off a run, you need a MegaPress tee, not this part.
3) What is Smart Connect on the Viega 90315 and why does it matter on a punch list?
Smart Connect is Viega's unpressed-connection feature: a fitting that has been left unpressed will leak visibly during pressure test rather than hiding until the walls are closed. On a job with dozens of 3/4 inch joints, that is how you find the one the installer missed before drywall goes up.
4) What is the Viega part number for the 3/4 inch 316 stainless no-stop MegaPress coupling?
Order Viega 90315. That number covers the 3/4 inch by 3/4 inch no-stop coupling in 316 stainless with Smart Connect.
