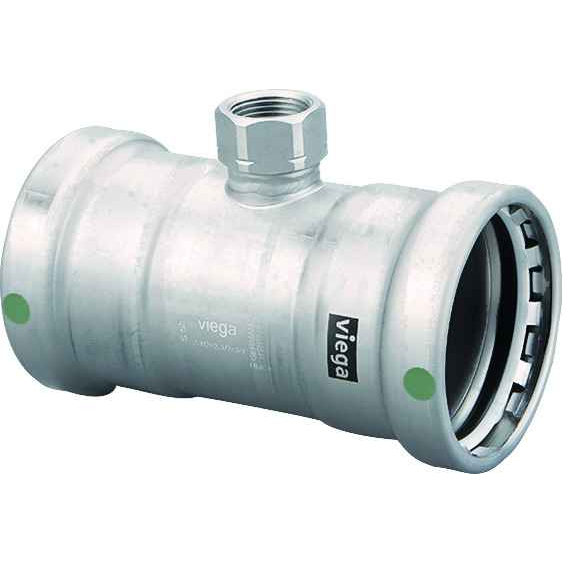

90630 Viega MegaPress tee Smart Connect technology 316 stainless steel, 4'' x 4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 4'' x 4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.449"
- Product Height:
- 5.193"
- Product Weight:
- 4.595 lbs
- Product Width:
- 5.941"
- Product Material:
- 316 stainless steel
Viega 90630 – Frequently Asked Questions
1) What are the three connections on the Viega 90630 MegaPress tee?
The 90630 is a 4 inch x 4 inch x 3/4 inch tee with a P1 x P2 x FPT configuration: the two 4 inch run ends are press connections, and the 3/4 inch branch is female pipe thread. So the run presses onto 4 inch pipe and the branch takes a male-threaded nipple, valve, or gauge adapter.
2) How much room do I need to fit the Viega 90630 tee into an existing 4 inch line?
Allow for a fitting measuring 9.449 inches long, 5.941 inches wide and 5.193 inches high. That is the envelope you need clear around the pipe, and it also tells you how much pipe to cut out of an existing run. At 4.595 lbs it is heavy enough that you will want the run supported on both sides of the tee before pressing.
3) Can I use the 3/4 inch branch on this MegaPress tee for a drain, gauge, or sensor takeoff?
Yes. The 3/4 inch branch is female pipe thread, so it accepts any male NPT nipple, ball valve, gauge adapter, or sensor well in that size. That makes the 90630 a common way to add a drain-down point, air vent, or instrument tap to a 4 inch stainless run without welding a boss.
4) What is Smart Connect on the Viega 90630 and why does it matter on a large press fitting?
Smart Connect is the feature designed into the MegaPress sealing element so an unpressed connection leaks visibly during pressure testing instead of passing inspection and failing later. On a 4 inch fitting with two press ends that matters more than usual, because a large-diameter press that is not fully cycled is easy to miss on a crowded rack.
