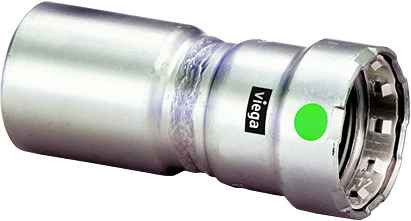

90860 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 1-1/4'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/4'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Tee
- Product Length:
- 4.008"
- Product Height:
- 1.78"
- Product Weight:
- 0.694 lbs
- Product Width:
- 1.78"
- Product Material:
- 316 stainless steel
Viega 90860 – Frequently Asked Questions
1) What does FTG x P mean on the Viega 90860 MegaPress reducer?
FTG x P means one end is a fitting (street) end sized to slip into another MegaPress fitting socket, and the other end is a press end that goes over the pipe. That matters on the order: you cannot press two pipes with this part, one side has to land in a mating fitting.
2) Is the Viega 90860 reducer suitable for a corrosive or washdown environment?
It is built in 316 stainless steel, the alloy specified where chloride exposure, washdown, or coastal air would pit lesser grades. That is the same body material through the fitting, not a plating.
3) Can I use the 90860 MegaPress reducer on carbon steel pipe, or does it need stainless pipe?
Mixing matters here. The 90860 is a 316 stainless steel MegaPress fitting, which is the stainless line, and stainless fittings are meant to be pressed onto stainless pipe. For black or galvanized carbon steel pipe, use the carbon steel MegaPress fittings instead so you are not setting up a dissimilar-metal joint.
4) Do I need a special press tool jaw for a 1-1/4 inch MegaPress stainless fitting?
Yes. Press fittings are pressed with a jaw or ring matched to the nominal size, so a 1-1/4 inch jaw is required for the large end of the 90860 and a 1 inch jaw for the reduced end. Confirm your tool has both sizes in the kit before you take this one to the job.
5) What is Smart Connect on Viega MegaPress fittings and does it change how I install the 90860?
Smart Connect is the feature designed into the sealing element so an unpressed connection leaks visibly during pressure testing rather than hiding until the system is in service. It does not add an install step, it just means your pressure test will find a missed press before the ceiling closes.
