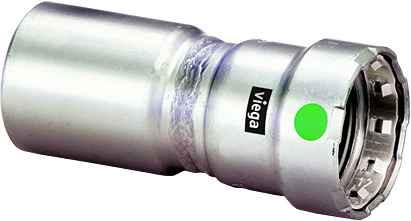

90865 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 1-1/2'' x 1-1/4"
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/4"
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Length:
- 4.543"
- Product Height:
- 2.205"
- Product Weight:
- 0.926 lbs
- Product Width:
- 2.205"
- Product Material:
- 316 stainless steel
Viega 90865 – Frequently Asked Questions
1) What does FTG x P mean on the Viega MegaPress 90865 reducer?
FTG x P describes the two ends of the Viega 90865 reducer. The FTG (fitting) end is sized to slip into the press socket of another 1-1/2 inch MegaPress fitting, and the P end is a 1-1/4 inch press socket that receives pipe. So it steps you from 1-1/2 inch down to 1-1/4 inch without needing an extra coupling.
2) Does the Viega 90865 have Smart Connect, and what does that do for me on the job?
Yes, the 90865 uses Viega's Smart Connect feature. It is a deliberate geometry in the sealing element that lets an unpressed connection leak visibly during pressure testing, so you find the joint you missed at test instead of after the wall closes up.
3) What part number do I order for the Viega 1-1/2 x 1-1/4 stainless MegaPress reducer?
Order Viega part number 90865. That is the 316 stainless MegaPress reducer in 1-1/2 inch by 1-1/4 inch, made in Germany.
4) What are the dimensions and weight of the Viega 90865 reducer?
The 90865 reducer measures 4.543 inches long with a 2.205 inch height and 2.205 inch width, and weighs 0.926 lbs. Worth checking the 4.543 inch length against your available space when you are pressing in a tight chase, since the press tool jaw needs clearance around the socket as well.
