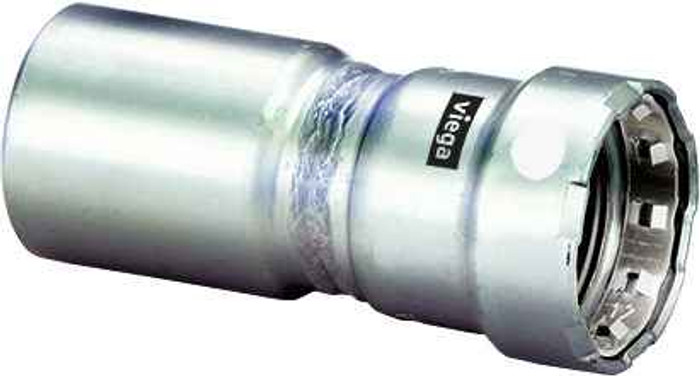

91320 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 1-1/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Tee
- Product Length:
- 4"
- Product Height:
- 1.669"
- Product Weight:
- 0.601 lbs
- Product Width:
- 1.669"
- Product Material:
- 316 stainless steel
Viega 91320 – Frequently Asked Questions
1) What size pipe does the Viega 91320 MegaPress reducer fit?
The 91320 is a 1-1/4 inch x 3/4 inch reducing fitting. Its connection type is FTG x P, meaning the 1-1/4 inch end is a fitting (male) end that slips into another press socket, and the 3/4 inch end is a press socket that receives pipe.
2) Is the Viega 91320 MegaPress fitting suitable for carbon steel or black iron pipe?
The 91320 is made of 316 stainless steel, so it is the stainless version of MegaPress rather than the carbon steel one. Use it where the system piping is stainless or where corrosion resistance drives the spec. For black iron or carbon steel schedule pipe runs, the standard carbon steel MegaPress fittings are the match.
3) Is the Viega 91320 a tee or a straight reducer?
Despite being grouped with tees, the 91320 is a two-end reducing fitting, 1-1/4 inch FTG by 3/4 inch press. It steps a line down in size; it does not branch. For a branch takeoff you need a reducing tee with three connections.
4) Does the MegaPress 91320 have the leak detection feature before pressing?
Yes. The 91320 uses Viega's Smart Connect technology, which leaves an unpressed connection detectably leaking during pressure testing so an installer can find and press any joint that was missed before the system is put into service.
5) How much room do I need to install the Viega 91320 reducer in a tight chase?
Plan on 4 inches of length and 1.669 inches of height and width for the fitting body itself, plus clearance for the press jaw to close around the socket. The 0.601 lb weight means it needs no separate support beyond normal pipe hangers.
6) Where is the Viega 91320 MegaPress fitting manufactured?
Made in Germany. Buyers standardizing a stainless press system across a facility often need the country of origin for submittal or procurement paperwork, and this one is German-made.
