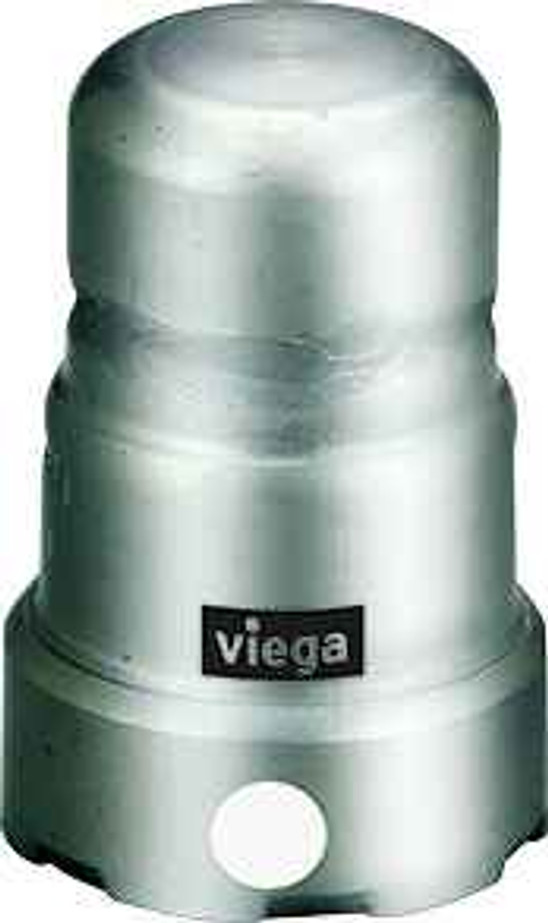

95825 Viega MegaPress cap Smart Connect technology 304 stainless steel, 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 2.992"
- Product Height:
- 2.244"
- Product Weight:
- 0.599 lbs
- Product Width:
- 2.244"
- Product Material:
- 304 stainless steel
Viega 95825 – Frequently Asked Questions
1) What size pipe does the Viega 95825 MegaPress cap fit?
The Viega 95825 MegaPress cap is a 1-1/4 inch press fitting. It presses onto 1-1/4 inch pipe to dead-end a run, so the pipe size on the open end you are capping has to match exactly.
2) Is the Viega 95825 MegaPress cap carbon steel or stainless?
It is 304 stainless steel, not carbon steel. If your run is black iron or carbon steel pipe and the spec calls for matching carbon steel MegaPress fittings, this is the stainless version of the cap.
3) What does Smart Connect technology on this MegaPress cap actually do for me on the job?
Smart Connect is Viega's unpressed-connection feature. It lets a fitting that was assembled but never pressed leak visibly during pressure testing, so an unpressed 1-1/4 inch cap shows up on the test instead of after the wall is closed. You still need the matching MegaPress press tool and jaw for the 1-1/4 inch size to make the joint.
4) Do I need to thread or weld pipe to cap a 1-1/4 inch line with this Viega fitting?
No threading, no welding, no flame. The 95825 is a press-connect cap, so you cut the pipe square, deburr, mark depth, slide the cap on and press it with the proper jaw. That matters in occupied buildings where a hot work permit is the bottleneck.
5) How much room do I need around a 1-1/4 inch MegaPress cap in a tight chase?
The cap measures 2.992 inches long by 2.244 by 2.244 inches and weighs 0.599 lbs. Keep in mind the press jaw needs clearance around the fitting body beyond those dimensions, so plan the chase or ceiling access for the tool, not just the part.
6) Can I use a 304 stainless MegaPress cap to permanently abandon a branch line?
Yes, that is the normal use. Pressing the 1-1/4 inch cap onto the cut end of an abandoned branch seals it as a permanent dead end, and the 304 stainless body suits it for service where a carbon steel cap would corrode. It is a sealed cap, not a cleanout, so there is no way to reopen the line short of cutting the fitting off.
