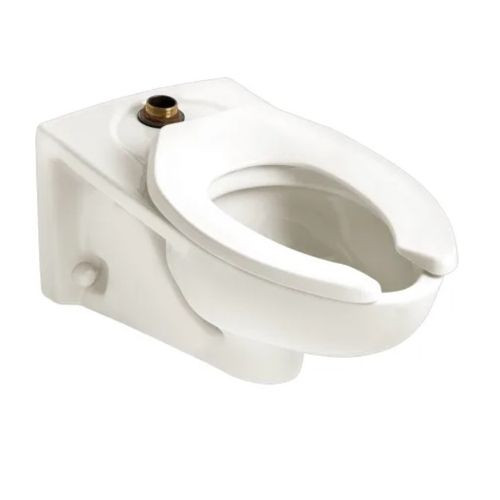

American Standard Afwall Millennium 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Top Spud Elongated Wall-Hung EverClean Bowl With Bedpan Lugs - AMS-3352101

No. The Afwall Millennium 3352101 is the elongated wall-hung bowl only, shipped less seat. It's a flushometer bowl, so you also need a flush valve sized for 1.1 to 1.6 gpf, plus the carrier and mounting hardware for the wall. Budget for the seat, the valve and a spud coupling on top of the bowl itself.

Top spud, 1-1/2 inch (38 mm) inlet. The flush valve comes down the wall and connects to the top of the bowl, so pair it with a 1-1/2 inch flushometer. If your rough-in is set up for a back spud bowl, this one will not work without changing the valve arrangement.

It runs anywhere in the 1.1 to 1.6 gpf (4.2 to 6.0 Lpf) range, so a 1.28 gpf valve is within spec. American Standard rates it at a MaP score of 1,000 grams across that whole range, which is the top of the MaP scale, so you don't give up bulk waste removal by specifying the lower flush volume.

Bedpan lugs are raised pads on the bowl rim that hold a bedpan clear of the water while it's rinsed, and this Afwall Millennium bowl has them. Hospitals, skilled nursing and behavioral health rooms commonly spec them. If you're outfitting an office or school restroom you don't need lugs, and the plain Afwall Millennium bowl is the one to order.

Direct-fed siphon jet flush with a 2-1/8 inch (54 mm) fully glazed trapway and a 2 inch (51 mm) minimum ballpass. The glazing on the full length of the trapway is what keeps paper from catching, and the 2 inch ballpass is the industry benchmark for commercial bowls. Combined with the 1,000 gram MaP rating, it's built for institutional traffic.

Elongated. It's a wall-hung flushometer bowl that mounts to a standard chair carrier, so if you're swapping out an existing elongated wall-hung commercial bowl of the same top spud arrangement, the carrier normally stays. Check that the outgoing bowl was also top spud with a 1-1/2 inch inlet; a back spud replacement means reworking the valve.

EverClean is an antimicrobial fired into the glazed surface of the bowl, not a coating you apply. It inhibits growth of the bacteria, mold and mildew that cause stains and odors on the surface. It doesn't sanitize the room or replace cleaning, but for a facility on a stretched janitorial schedule it slows down how fast the bowl looks dirty between cleanings.

The trapway is concealed and includes a condensation channel, which routes surface condensation rather than letting it drip onto the floor behind the fixture. That matters in humid climates and in rooms on cold supply water. It's a drainage detail, not insulation, so it manages condensation rather than preventing it.

White only, ordered as part number 3352101.02. The .02 suffix is American Standard's white china code, so if a submittal calls for 3352101.02 that's this bowl.
