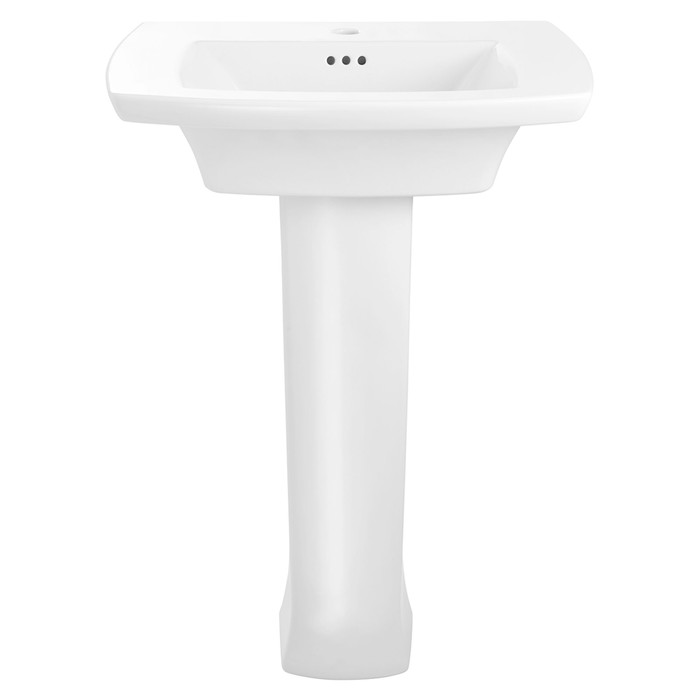

Edgemere Center Hole Only Pedestal Sink Top and Leg Combination
- Lavatory plus Pedestal (White)
- Center hole only
- Faucet/soap/accessory ledge with generous shelf area
- Rear overflow
- Supplied with mounting kit
- Design coordinates with Edgemere toilets
- Right Height for greater comfort during use
- Fine fireclay construction
- Bowl size: 17-1/8" (435 mm) wide, 12" (305 mm) front to back, 5-1/4" (133 mm) deep
Manufacturer Resources
Product Specs
- Product Type:
- Pedestal Sink
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Sinks
- Department:
- Plumbing
American Standard 445100.02 – Frequently Asked Questions
1) Will the American Standard Edgemere pedestal sink work with a widespread or 4-inch centerset faucet?
No. The Edgemere 445100 pedestal top is drilled center hole only, so it takes a single-hole faucet. A widespread or 4-inch centerset needs three holes and will not mount on this top. If you're set on a spread faucet, you need a different Edgemere top drilling, not this one.
2) Do I have to buy the pedestal leg separately for the Edgemere 445100?
No, 445100 is sold as a top and leg combination, lavatory plus pedestal in white. You get both pieces plus a mounting kit. What you still need to supply is the faucet, the drain assembly, the P-trap and the supply stops.
3) How big is the bowl on the Edgemere pedestal lavatory, and is there room for a soap dispenser?
The bowl runs 17-1/8 inches (435 mm) wide, 12 inches (305 mm) front to back, and 5-1/4 inches (133 mm) deep. The top has a faucet, soap and accessory ledge with a shelf area behind the bowl, so a deck soap dispenser sits on the ledge rather than crowding the faucet.
4) Is the Edgemere pedestal sink taller than a standard lavatory?
Yes. It's built to American Standard's Right Height, which sets the rim higher than a conventional pedestal lav for easier use standing. Worth knowing if you're replacing an older pedestal in a fleet of units, since the supply and trap rough-in will sit at a different elevation than the sink you pulled out.
5) Does the Edgemere pedestal sink have an overflow?
It has a rear overflow, so pair it with an overflow-type lavatory drain (a standard grid drain with no overflow ports will block the channel). That matters in hospitality and multi-family work where an unattended running faucet is a real claim.
6) Should I use a pedestal sink or a wall-hung lav with an exposed trap in a commercial restroom?
A pedestal like the Edgemere hides the trap and supplies behind the leg, which is why it reads residential and suits hotel guest baths and apartment units. It still needs the wall carrier or backing the wall-hung lav needs, since the leg supports weight but the top is anchored with the supplied mounting kit. Where you need clear knee space under the bowl for accessible use, a wall-hung lav with an offset trap is the better call, because the pedestal leg occupies that space.
7) What is the Edgemere pedestal sink made of, and will it hold up in a commercial restroom?
Fine fireclay, which is a denser, higher-fired vitreous body than standard china and takes cleaning chemicals and daily traffic well. It's a common choice for hotel guest baths and multi-family units where the fixture is exposed and gets wiped down constantly.
