American Standard Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15" Height Top Spud Elongated Bowl With Bedpan Lugs - AMS-2623001

American Standard Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15" Height Top Spud Elongated Bowl With Bedpan Lugs - AMS-2623001

(No reviews yet) Write a Review

Model: 2623001.02
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

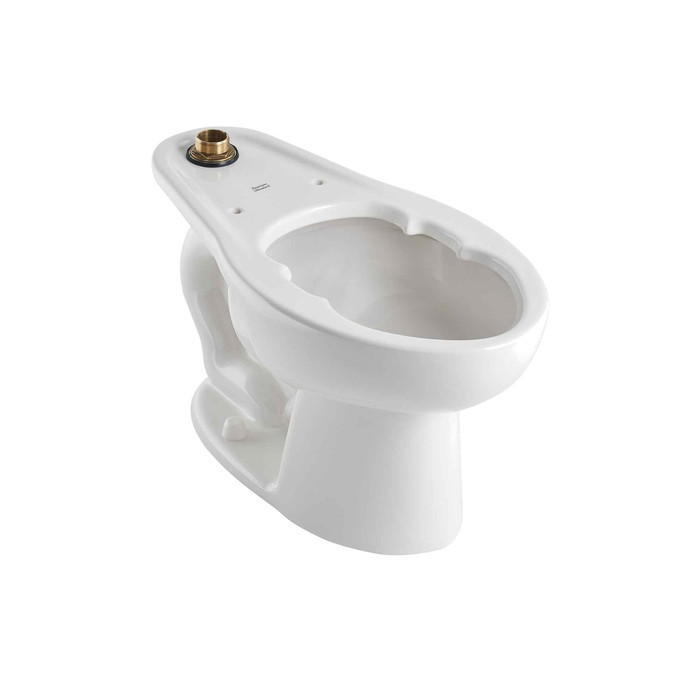

Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15" Height Top Spud Elongated Bowl With Bedpan Lugs
  • Floor-mount, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • Standard 15" (381 mm) rim height
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" (305 mm) rough-in
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
  • With bedpan lugs

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Elongated Bowl
Product Group:
Washroom/Bath
Product Subgroup:
Toilet
Department:
Plumbing
Country of Origin:
Mexico
Product Color:
White
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial

American Standard 2623001.02 – Frequently Asked Questions

1) Does the American Standard Madera 2623001 bowl come with a tank, or do I need a flushometer?
No tank. The Madera 2623001 is a floor-mounted flushometer bowl with a top spud, so it needs a separate flush valve to operate. The spud inlet is 1-1/2 inch (38 mm), which is the standard commercial flushometer connection. It also ships less seat, so budget for a seat on every fixture.
2) What rough-in does the Madera top spud elongated bowl need, 10 inch or 12 inch?
Either. The Madera 2623001 is built to set on a 10 inch (254 mm) or 12 inch (305 mm) rough-in, so it drops onto the common commercial waste locations without changing the flange.
3) Will this Madera bowl work with a 1.28 gpf flush valve we already have in the building?
Yes. The Madera 2623001 is rated to operate anywhere in the 1.1 to 1.6 gpf (4.2 to 6.0 Lpf) range, so a 1.28 gpf valve falls inside its operating window. That range is also what lets you standardize one bowl across retrofits where existing valves vary.
4) What are bedpan lugs on a toilet bowl and do I need them?
Bedpan lugs are raised pads cast into the rim so a bedpan can rest on the bowl without sliding. The Madera 2623001 is supplied with them, which is why it turns up on hospital, long term care, and behavioral health specs. For an office or school restroom they add nothing, and a plain Madera bowl without lugs is the usual call there.
5) How well does the Madera 2623001 clear waste at low flush volumes?
It carries a MaP score of 1,000 grams across the 1.1 to 1.6 gpf range, which is the top of the MaP scale, and uses a direct-fed siphon jet with a 2-1/8 inch (54 mm) fully glazed trapway. That combination is why it holds up in high traffic and institutional restrooms where clogs pull maintenance off other work.
6) What finish and part number do I order for the Madera bedpan lug bowl?
It is sold in white only, ordered as American Standard part number 2623001.02.
7) Will this toilet sweat in an unconditioned restroom?
The Madera 2623001 bowl includes a condensation channel, which catches and routes condensate rather than letting it drip onto the floor. Useful in humid or poorly conditioned spaces where sweating fixtures have caused slip complaints.
8) Is this an elongated or round front bowl?
Elongated. The Madera 2623001 is an elongated flushometer bowl, which is the shape commercial and institutional specs normally call for. A round front bowl will not drop into an elongated seat or match an elongated stall layout.
