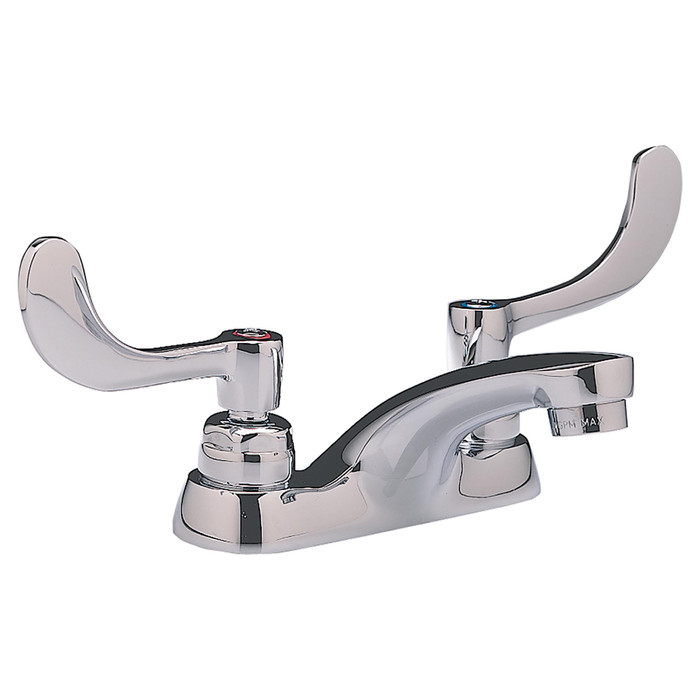

American Standard Monterrey 4-Inch Centerset Cast Faucet With Wrist Blade Handles 0.35 gpm/1.3 Lpm - AMS-5500174

American Standard Monterrey 4-Inch Centerset Cast Faucet With Wrist Blade Handles 0.35 gpm/1.3 Lpm - AMS-5500174

(No reviews yet) Write a Review

Model: 5500174.002
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$225.17
$175.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Monterrey 4-Inch Centerset Cast Faucet With Wrist Blade Handles 0.35 gpm/1.3 Lpm
  • Cast brass spout with 3-3/4" (95 mm) reach
  • Washerless ceramic disc valves assure drip-free performance
  • 1/2" (13 mm) male threaded inlet shanks with brass coupling nuts
  • Vandal-resistant wrist blade handles with red and blue indicators
  • 0.35 gpm/1.3 Lpm pressure-compensating VR multi-laminar spray

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Cast Faucet
Product Group:
Washroom/Bath
Product Subgroup:
Faucets
Department:
Plumbing
Product Color:
Chrome
Country of Origin:
Mexico

American Standard 5500174.002 – Frequently Asked Questions

1) Will the American Standard Monterrey 5500174 faucet fit a 4-inch centerset sink deck?
Yes. The Monterrey 5500174 is a 4-inch centerset faucet, so it mounts on a standard three-hole deck with 4 inches center to center between the outer holes. If your lavatory is drilled 8-inch widespread or single-hole, this is not the right body.
2) What supply connection does the Monterrey wrist blade faucet use?
It comes with 1/2 inch (13 mm) male threaded inlet shanks and brass coupling nuts, so it ties into standard 1/2 inch supply risers or flex connectors without an adapter.
3) Is 0.35 gpm enough flow for a public restroom lavatory?
For handwashing, yes. The 5500174 uses a 0.35 gpm / 1.3 Lpm pressure-compensating vandal-resistant multi-laminar spray, which holds that rate as building pressure fluctuates and gives a soft, non-splashing stream. It is a low-flow handwash faucet, not a fill faucet, so if you need to fill buckets or basins quickly, specify a higher-flow outlet model instead.
4) How far does the Monterrey centerset faucet spout reach over the bowl?
The cast brass spout has a 3-3/4 inch (95 mm) reach. On a small or shallow institutional lavatory that lands the stream near the center of the bowl; on a deep or wide basin, check the reach against your bowl before ordering.
5) Are wrist blade handles a good choice for a school or healthcare restroom?
That is exactly what they are for. The Monterrey's wrist blade handles are vandal-resistant and can be operated with a forearm or elbow rather than a grip, which is why they show up in schools, clinics, and other high-traffic washrooms. Red and blue indicators mark hot and cold.
6) Do these faucets drip after heavy use like compression faucets do?
The Monterrey uses washerless ceramic disc valves rather than rubber washers, which is what keeps it from weeping the way a compression stem faucet does once the washer wears. For a property manager standardizing across many restrooms, that is the difference between a seat-and-washer rebuild cycle and leaving the faucet alone.
7) What finish and part number do I order for the American Standard Monterrey wrist blade faucet?
It is sold in chrome, under American Standard part number 5500174.002. Chrome is the single finish offered on this body, so matching existing chrome trim across a building is straightforward.
8) Is the Monterrey 5500174 faucet body metal or plastic?
The spout is cast brass, and the inlet coupling nuts are brass as well. It is a cast faucet body, which is the reason it holds up in commercial and institutional washrooms where a plastic-bodied residential faucet gets broken off.
