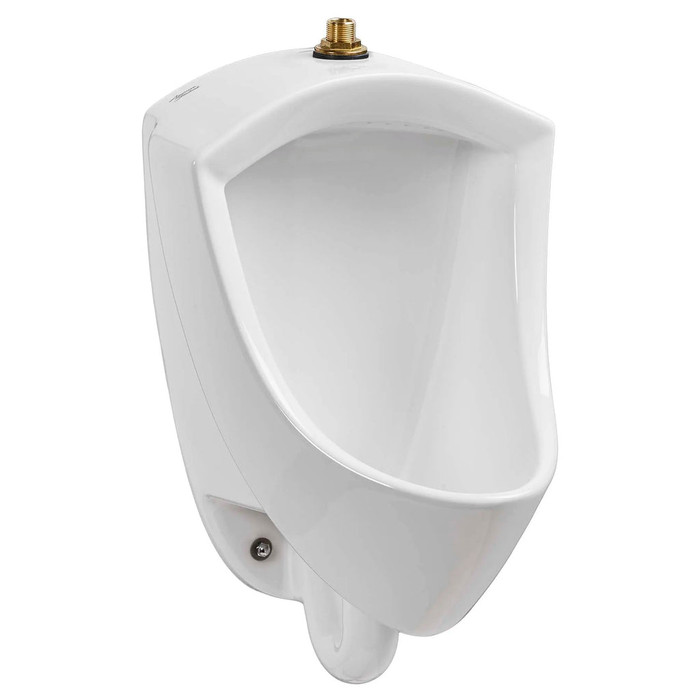

American Standard Pintbrook 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal Made-in-Mexico - AMS-6002001USMCA

The Pintbrook is a top spud urinal, so the flush valve mounts above the fixture and connects down into the spud opening on top. Pair it with a valve rated for the same flush volume range the fixture is designed around, 0.125 to 0.5 gpf (0.47 to 1.9 Lpf). A back spud or wall-hydrant style valve will not work on it.

Yes. The Pintbrook is rated across a 0.125 to 0.5 gpf band (0.47 to 1.9 Lpf), so the same fixture works as a 1/8 gallon pint urinal or at a higher volume, depending on the flush valve you install. That range is what lets a facility standardize on one bowl and change only the valve if water-use targets change.

No. This is the top spud configuration, where the supply drops in from above the fixture. If your existing rough-in brings the supply through the wall behind the urinal at bowl height, you need a back spud model instead, not this one. Confirm which way the stub-out comes out of the wall before ordering, because the two are not interchangeable without repiping.

It is a commercial-grade fixture. American Standard classes the Pintbrook under its commercial line, and it is built for the traffic in office, school, and public restrooms rather than a home half-bath. It sits in the non-luxury tier, which is the standard spec-grade product a property manager or MRO buyer would run across a whole facility.

Order model 6002001USMCA.020. That is the Mexico-built Pintbrook top spud urinal in white. The flush valve, spud coupling, and mounting hardware are separate items, so specify those alongside the bowl when you build the order.

White only. The orderable fixture is 6002001USMCA.020, the .020 suffix being American Standard's white vitreous china finish code. There is no alternate color offered on the Pintbrook top spud model, so a facility replacing one fixture in a row of white urinals will match.
