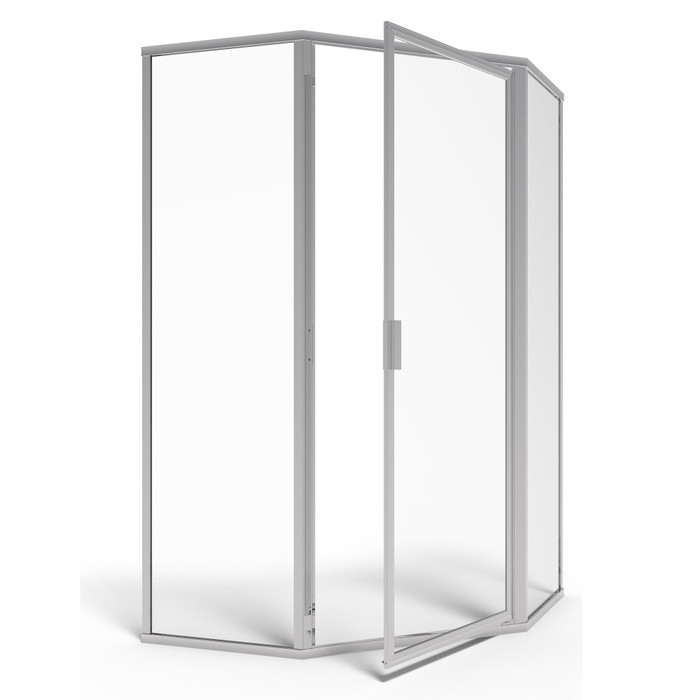

American Standard Prestige 66-5/8-Inch Height Neo Angle Shower Door - AMS-AMPQF14400

The Prestige neo angle door works off a centerline layout of 17-1/2 x 24-3/8 x 17-1/2 inches (445 mm x 619 mm x 445 mm), which is the three-panel neo angle footprint measured across the corner. Take that against your base before you order. Overall height is 68-1/2 inches (1740 mm), with the door panel itself at 66-5/8 inches.

The door swings left or right, so one part number covers both corner orientations. You set the swing at install rather than ordering a handed unit, which matters for a property manager buying several units for bathrooms that mirror each other across a hallway.

No cutting is required on the Prestige neo angle enclosure. It installs to its stated centerline dimensions as supplied, which is the whole reason to check the 17-1/2 x 24-3/8 x 17-1/2 inch layout against the base first. There is no field trim to take up an out-of-size opening.

Tempered safety glass, which is what a building inspector expects in a bathing enclosure. That matters for institutional and multi-family work where the glazing in a shower has to be safety glass rather than annealed.

A full-length magnetic closure runs the height of the door, so the strike side pulls shut along its whole edge instead of catching at a single point. That is the detail that keeps water off the bathroom floor in a corner unit, and it is the common complaint on doors that latch only at one spot.

A neo angle unit like the Prestige is for a corner shower with an angled front, where the enclosure itself forms two side panels and a swinging door across the diagonal. It needs clear floor space in front to swing, since it swings left or right rather than sliding. A bypass or sliding door is the choice for a straight alcove between two walls, and for a tight bathroom where a swinging panel would hit the vanity or toilet. If your base is a square or rectangular alcove, a neo angle door is the wrong geometry entirely.

The 66-5/8 inch figure is the door height and 68-1/2 inches (1740 mm) is the overall height of the assembled enclosure including the header. Frame the ceiling clearance and any shower rod or light fixture against 68-1/2 inches, not 66-5/8. On a low ceiling or under a soffit that difference is what decides whether the unit goes in.
