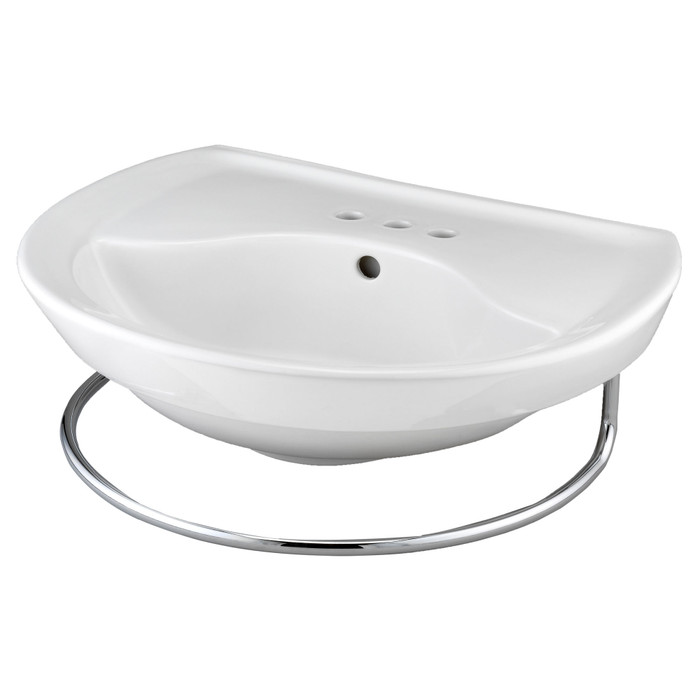

American Standard Ravenna 4-Inch Centerset Pedestal Sink Top - AMS-268004

The Ravenna sink top is drilled for 4-inch centerset faucets, meaning the two handle holes sit 4 inches apart on center and the faucet mounts as a single unit on the deck. A widespread 8-inch faucet or a single-hole vessel faucet will not mount to it. The deck is a faucet ledge with extra shelf area plus a soap/accessory ledge.

Nominal size is 24-1/4 by 20 inches (616 x 508 mm), so plan on roughly 24-1/4 inches of wall width plus clearance. The bowl itself is 19-3/8 inches wide, 12 inches front to back, and 6 inches deep.

No. The 268004.02 is the china top only, which is how American Standard sells pedestal lavatories: the basin and the matching pedestal leg are separate order lines. The top does ship with its mounting kit for securing it to the wall.

A mounting kit comes with the top, so the wall-hanging hardware is covered. What is not included is the faucet, the pop-up drain assembly, the P-trap, and the supply stops and risers, all of which are specified separately on a bathroom rough-in.

Yes, a rear overflow is built into the bowl. That matters when you pick the drain: use a pop-up or grid drain made for an overflow lavatory, not a non-overflow style.

The Ravenna bowl runs 6 inches deep and 19-3/8 by 12 inches, which is a normal handwash depth for a public or apartment powder room. It handles handwashing fine; if crews need to fill buckets or rinse tools, a pedestal lav is the wrong fixture and a deeper utility or service sink is the call.

A pedestal like the Ravenna hides the trap and supplies behind the leg and gives you a 24-1/4 by 20 inch footprint with a faucet ledge and soap ledge for setting things down. A wall-hung lav leaves the plumbing exposed and gives more floor clearance underneath. Pick the pedestal when you want the plumbing concealed without building a vanity; pick wall-hung when you need clear knee space under the bowl.

White only, sold under part number 268004.02. If you are standardizing restrooms across a property, every unit will match without color-matching between shipments.

The Ravenna top is made for an optional integral mounted towel bar, so the bar attaches to the china rather than to the wall. The bar is an add-on item, not part of the 268004.02 top.
