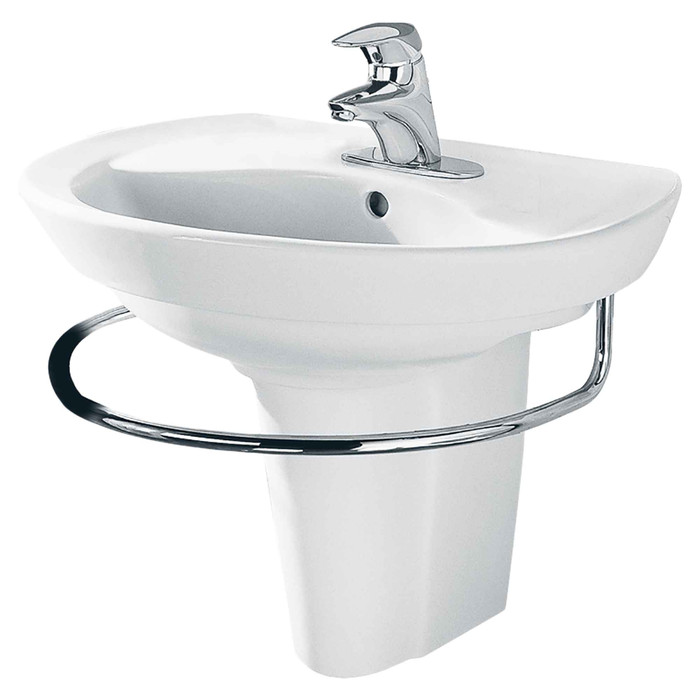

American Standard Ravenna Center Hole Only Pedestal Sink Top - AMS-268001

Nominal dimensions are 24-1/4 by 20 inches (616 x 508 mm). That footprint matters more than it looks on a pedestal install: measure the clear wall space between side walls or adjacent fixtures, and remember the bowl projects off the wall by the 20 inch dimension plus whatever the wall bracket adds. In a tight powder room or a code-driven clearance check, that 24-1/4 inch width is your controlling number.

What ships here is the sink top itself, model 268001.02 in white. It is the basin half of the assembly. The matching Ravenna pedestal column is a separate model number and has to be ordered on its own line. Mounting hardware for the top is included, but plan the order so the top and leg arrive together or the fixture cannot be set.

The mounting kit comes in the box with the Ravenna top. What the kit does not provide is wall blocking. Vitreous china on a pedestal carries real weight, so a 2x8 or plywood backer between the studs at bracket height is standard practice on new work, and on a remodel you open the wall or hit solid framing. That is the part contractors get caught by, not the hardware.

Yes, a rear overflow. That means it accepts a standard lavatory pop-up drain with an overflow port, the common 1-1/4 inch lavatory type, rather than a grid drain without overflow. If you spec a non-overflow grid strainer it will leave the overflow channel blind and the bowl will not drain down through it.

The Ravenna top has a faucet ledge with a wide shelf area and a dedicated soap/accessory ledge, which is unusual on a pedestal where deck space is normally the compromise. An integral mounted towel bar is offered as well, but it is a separate order. For hospitality or multi-family where guests need somewhere to put things, that ledge is the reason to pick this one over a plain oval pedestal.
