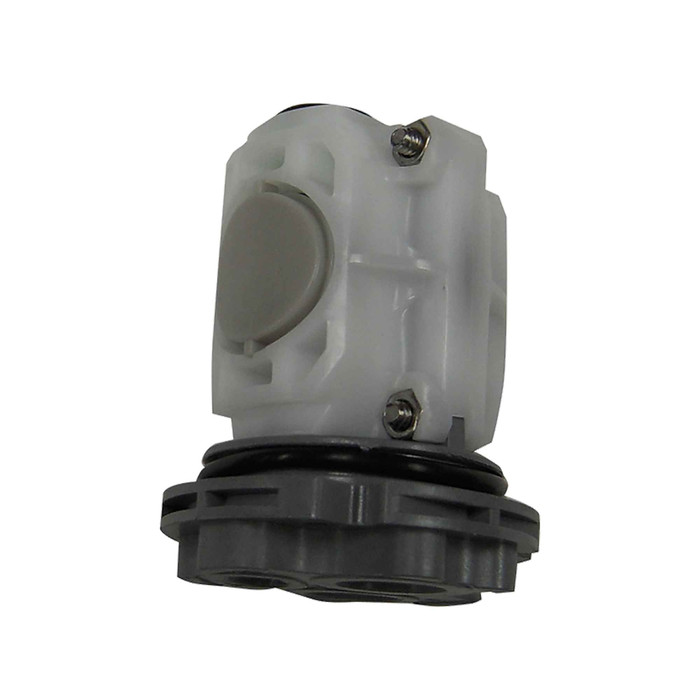

American Standard Temperature Control Pressure Balance Valve Cartridge - AMS-M952100

The M952100 temperature control cartridge is made for American Standard R110, R115, R120 and R125 rough-in valve bodies. If the brass in your wall is one of those four, this is the replacement cartridge. Anything outside that group, including other American Standard rough-in series, is a different cartridge, so pull the trim and confirm the rough-in model stamped on the valve body before you order.

That temperature swing is exactly what this cartridge controls. A pressure balance cartridge senses the drop in cold supply pressure and cuts the hot side back to match, holding the outlet temperature steady, and the American Standard M952100 is the scald protection cartridge for R110, R115, R120 and R125 valve bodies. When the balancing spool inside gets scaled or sticky with age, that protection stops working and you get the surge. Replacing the cartridge restores it without opening the wall.

No. The M952100 is dimensioned for American Standard R110, R115, R120 and R125 rough-in bodies only. Shower cartridges are not cross-brand parts, the port spacing, seal locations and retainer are specific to the valve body, so a Moen, Delta or Kohler valve needs that manufacturer's own cartridge. If you inherited the building and do not know the brand, the rough-in is usually stamped on the face of the brass behind the escutcheon.

Order M952100-0070A. That is the manufacturer part number for the American Standard temperature control pressure balance cartridge covering the R110, R115, R120 and R125 rough-ins. It is an internal working part, so there is no finish to specify with it; the finish on your job is carried by the trim kit, not the cartridge.

Two different jobs. A pressure balance cartridge, which is what the M952100 is, reacts to supply pressure changes and keeps the mix from swinging hot when cold pressure drops. It has one handle controlling volume and temperature together. A thermostatic valve holds a set outlet temperature regardless of both pressure and incoming water temperature, and usually splits volume and temperature onto separate controls. The deciding factor is not preference, it is the brass already in the wall. An R110, R115, R120 or R125 body is a pressure balance rough-in and takes this cartridge; you cannot convert it to thermostatic by swapping the cartridge.

If the units were built out at the same time with the same rough-in, yes, one cartridge covers them. The M952100 spans four American Standard rough-in valves, R110, R115, R120 and R125, so a portfolio that mixes those bodies still runs on a single stocked part number, M952100-0070A. Where it breaks down is buildings that were renovated in phases and picked up a different American Standard series along the way. Check the rough-in on one unit per phase, not one per building.
