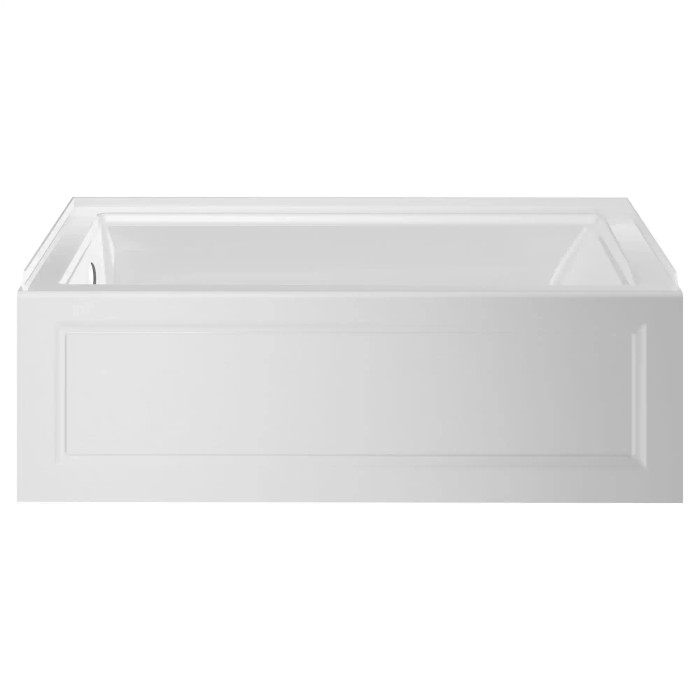

American Standard Town Square S 60 x 30-Inch Integral Apron Bathtub With Left-Hand Outlet - AMS-2545202

American Standard Town Square S 60 x 30-Inch Integral Apron Bathtub With Left-Hand Outlet - AMS-2545202

(No reviews yet) Write a Review

Model: 2545202.02
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,005.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Town Square S 60 x 30-Inch Integral Apron Bathtub With Left-Hand Outlet
  • Integral apron with clean, traditional styling
  • Integral 3-sided 1" tiling/water retention flange for easy installation
  • Coordinates with Town Square S bathroom suite making a complete bathroom remodel easier
  • Sloped lumbar support for more comfortable bathing experience
  • For recessed installation
  • Limited Lifetime Warranty
  • Pre-leveled tub bottom for easier installation

Manufacturer Resources

Product Specs

Product Type:
Bathtub
Product Group:
Washroom/Bath
Product Subgroup:
Bathtubs
Department:
Plumbing

American Standard 2545202.02 – Frequently Asked Questions

1) Which end does the drain go on the American Standard Town Square S 60 x 30 tub?
Left-hand outlet. Stand at the front of the alcove facing the tub: the drain and overflow are at your left end, so the rough-in waste has to be stubbed on that side. If your existing waste line comes up on the right, you want the right-hand outlet version of the same tub instead, not this one.
2) Can the Town Square S 60 x 30 apron tub be installed in a corner or drop-in application?
No. It is built for recessed alcove installation only, with an integral apron finishing the one exposed long side and a 3-sided tiling flange on the three walled sides. A drop-in or freestanding application needs a different tub, since the flange and finished apron are fixed to this layout.
3) Does this American Standard tub have a tiling flange for tile or surround waterproofing?
Yes, an integral 1 inch tiling and water retention flange runs along all three walled sides. Tile or a surround panel laps over it so water running down the wall drains back into the tub rather than behind it. That flange is why the three walls need to be framed square to the tub before it goes in.
4) Do I need to build a mortar bed or shim the Town Square S tub level?
The tub bottom comes pre-leveled from the factory, so it sits on a flat, properly framed subfloor without the usual shimming exercise. That removes a step for a remodeler working a one-day bathroom turnaround, though the framing and floor still need to be flat and the ledger set at the right height.
5) Is a drain, overflow or waste and overflow kit included with this bathtub?
The tub is supplied as the bathing vessel with the apron and flange formed in. The waste and overflow assembly and the tub filler or shower valve trim are separate purchases, so budget a left-hand waste and overflow kit and the valve trim alongside it on the job.
6) What size alcove opening does this 60 x 30 inch tub need?
Frame the alcove to accept a 60 by 30 inch tub, with the three surrounding walls square and the front left open for the finished apron. Because the outlet is on the left, the waste rough-in and the tub filler wall land at that end of the alcove.
7) What color and part number is the Town Square S 60 x 30 left-hand tub?
White is the finish offered, ordered as American Standard model 2545202.02. The .02 suffix is the white color code, which is the one to quote when matching an existing white fixture set.
8) Is this a soaking tub or does it have jets?
It is a plain soaking bathtub, no whirlpool or air system. Comfort comes from the sloped lumbar support molded into the back of the basin rather than from jets, and there is no pump, blower or electrical rough-in to plan for.
