American Standard Ultima Selectronic Concealed Toilet Flush Valve, Base Model, Piston-Type, 1.1 gpf/4.2 Lpf - AMS-606B212

American Standard Ultima Selectronic Concealed Toilet Flush Valve, Base Model, Piston-Type, 1.1 gpf/4.2 Lpf - AMS-606B212

(No reviews yet) Write a Review

Model: 606B212.007
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$596.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

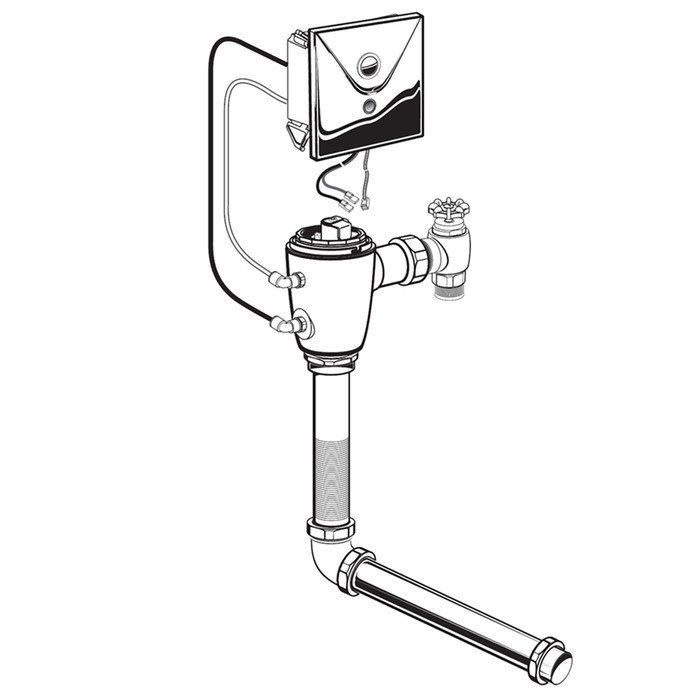

Ultima Selectronic Concealed Toilet Flush Valve, Base Model, Piston-Type, 1.1 gpf/4.2 Lpf
  • For flushometer bowls with 1-1/2" (38 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH REAR ACCESS
  • Includes 6" x 6" (152 x 152 mm) chrome cover plate
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 1.1 gpf/4.2 Lpf

Manufacturer Resources

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
19.875
Product Height:
8.31
Product Weight:
14.513
Product Width:
16
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 606B212.007 – Frequently Asked Questions

1) Does the American Standard 606B212 Selectronic flush valve come with a power supply?
No. The power kit for the 606B212 Ultima Selectronic concealed flush valve is sold separately, so you need to order it along with the valve to complete the install. The valve does have a fully mechanical manual override that flushes even with no power present, but that override is a backup, not a substitute for the power kit.
2) What spud size toilet does the Ultima Selectronic concealed flush valve fit?
It is made for flushometer-type bowls with a 1-1/2 inch (38 mm) back spud. A bowl with a top spud, or a tank-type toilet, is the wrong application for this valve.
3) Can I install this concealed flush valve if there is no chase behind the wall?
No. The 606B212 is built for installations with rear access, meaning the valve body sits behind the wall and you reach it from a chase or service room. If your restroom has no access behind the fixture wall, you need an exposed flushometer instead.
4) How much water does the American Standard 606B212 use per flush?
1.1 gallons per flush (4.2 liters), which is a high-efficiency water closet rate rather than the older 1.6 gpf standard. Pair it with a bowl rated to flush at 1.1 gpf; putting it on a bowl engineered for 1.6 gpf can leave you with carry problems.
5) What shows on the finished wall with this concealed Selectronic valve?
A 6 x 6 inch (152 x 152 mm) chrome cover plate is included, and that plate plus the sensor is all that is visible on the room side. Everything else is buried in the chase.
6) What stops a sensor flush valve from running on constantly?
The Ultima Selectronic uses DynaClean self-cleaning technology: an integral wiper spring scrubs the refill orifice on every flush, which is the orifice that clogs with grit and causes valve run-on. That matters most on hard water or older building supply where run-on is a recurring service call.
7) Is this a piston or diaphragm flush valve, and will it hold up in a high-traffic restroom?
Piston-type, in a proprietary brass alloy that resists dezincification, and it is a commercial-duty part rather than a residential one. Piston operation is what a lot of facilities standardize on for heavy-use restrooms because the moving assembly is serviceable as a unit.
8) Is the 606B212 the base model or does it have the added Selectronic features?
This is the base model of the Ultima Selectronic concealed toilet flush valve. It gives you touchless sensor operation, the mechanical override, and DynaClean, without the added options offered on higher Selectronic configurations. Ordering part number 606B212.007 gets you that base configuration.
