American Standard Ultima Selectronic Concealed Toilet Flush Valve with Wall Box, Base Model, Piston-Type, 1.28 gpf/4.8 Lpf - AMS-606B322

American Standard Ultima Selectronic Concealed Toilet Flush Valve with Wall Box, Base Model, Piston-Type, 1.28 gpf/4.8 Lpf - AMS-606B322

(No reviews yet) Write a Review

Model: 606B322.007
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$882.66
$832.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

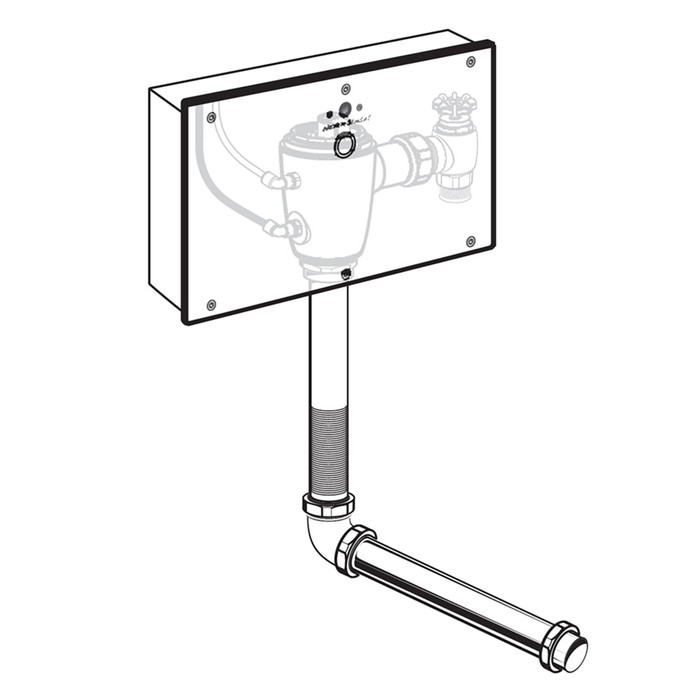

Ultima Selectronic Concealed Toilet Flush Valve with Wall Box, Base Model, Piston-Type, 1.28 gpf/4.8 Lpf
  • For flushometer bowls with 1-1/2" (38 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 1.28 gpf/4.8 Lpf

Manufacturer Resources

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
19.875
Product Height:
8.31
Product Weight:
19.518
Product Width:
16
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 606B322.007 – Frequently Asked Questions

1) Does the Ultima 606B322 flush valve come with a power supply?
No. The power kit has to be ordered separately. The 606B322 ships as the concealed piston valve plus the wall box with a vandal-resistant brushed stainless cover, so budget a separate line item for the power source (transformer or battery kit) before the job goes to the plumber.
2) Can this concealed flush valve be serviced from behind the wall, or do I need front access?
Front access only. The 606B322 is specified for installations where the valve is reached through the wall box from the room side. If your chase design calls for rear access from an adjoining service corridor, this isn't the right configuration.
3) What happens if the power fails on the Ultima Selectronic concealed flush valve?
There's a fully mechanical manual override that flushes the valve with no power at all. That matters in a school, stadium, or healthcare restroom where an outage can't mean a dead fixture. The sensor handles normal touchless operation; the override is the backup.
4) How much water does the American Standard 606B322 flush valve use per flush?
1.28 gpf (4.8 Lpf), which is the high-efficiency water closet rate. Pair it with a 1.28 gpf rated flushometer bowl; putting a 1.28 valve on a bowl engineered for 1.6 gpf can leave you with carry problems.
5) What part number do I order for the base model Ultima concealed toilet flush valve?
Order manufacturer part 606B322.007 from American Standard's Selectronic family. It's the base-model concealed piston valve at 1.28 gpf with the wall box included, and it ships in a single configuration with no finish choice to specify (the exposed piece is the brushed stainless cover).
6) What keeps a sensor flush valve from running on continuously?
On the Ultima Selectronic, DynaClean self-cleaning wiper spring technology handles it. An integral wiper spring scrubs the refill orifice on every flush, which is where debris normally collects and causes a valve to run on. It's a piston-type valve, and the brass alloy is a proprietary blend that resists dezincification in aggressive water.
7) Is the American Standard 606B322 suitable for a high-traffic public restroom?
That's what it's built for. It's a commercial-group Selectronic flush valve, touchless to cut down germ transfer, and the wall box cover is vandal-resistant brushed stainless, so it holds up in open public restrooms where an exposed valve would get abused.
