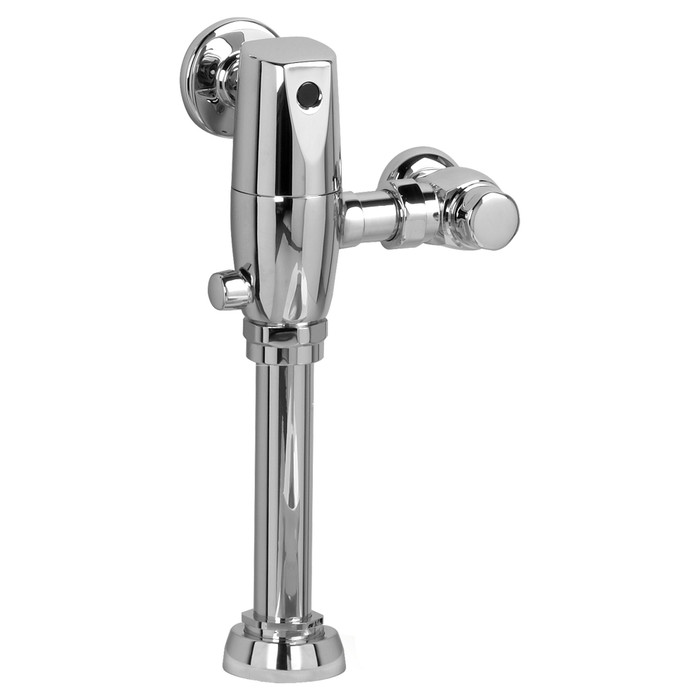

American Standard Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Base Model, 1.6 gpf/6.0 Lpf - AMS-606B161

American Standard Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Base Model, 1.6 gpf/6.0 Lpf - AMS-606B161

(No reviews yet) Write a Review

Model: 606B161.002
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$506.71
$437.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Base Model, 1.6 gpf/6.0 Lpf
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in

Manufacturer Resources

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
27
Product Height:
4.25
Product Weight:
11.21
Product Width:
10.38
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 606B161.002 – Frequently Asked Questions

1) Does the American Standard 606B161 Selectronic flush valve come with a power kit?
No. The power kit is sold separately on the 606B161 Ultima Selectronic valve, so order it on the same purchase order or the valve cannot be commissioned. The valve body itself ships as the base model, chrome finish, under MPN 606B161.002.
2) Is the 606B161 a toilet or urinal flush valve, and what is the flush volume?
Toilet (water closet) only, at 1.6 gpf / 6.0 Lpf. That is the standard full-flush water closet volume, so it is not a urinal valve and not a 1.28 gpf high-efficiency valve.
3) What happens to the Ultima Selectronic valve if the power goes out in the building?
It fails closed. On loss of power or water pressure the valve automatically shuts, so you do not get a running fixture. There is also a fully mechanical manual override that flushes the bowl without any power, which is what matters for a facility that cannot take a restroom out of service during an outage.
4) Piston-type or diaphragm-type: which flush valve should I use in a high-traffic commercial restroom?
The 606B161 is a piston-type valve. Piston operation uses a machined piston assembly rather than a rubber diaphragm, and it is the choice specifiers make where water quality is hard on diaphragms. This one is a commercial-duty valve with a proprietary brass alloy that resists dezincification, which is the failure mode you see in aggressive water.
5) My existing flushometers keep running on after the flush. Does this valve address that?
That is what the DynaClean feature targets. An integral wiper spring scrubs the refill orifice on every flush, keeping the debris out of the orifice that causes valve run-on. For a property manager chasing water bills across a fleet of restrooms, that is the maintenance item this valve is built around.
6) How much does the Ultima Selectronic 606B161 flush valve weigh and what are its carton dimensions?
It weighs 11.21 lb, with dimensions of 27 x 10.38 x 4.25 inches. Useful if you are staging a multi-fixture retrofit and need to plan shelf space or handling.
