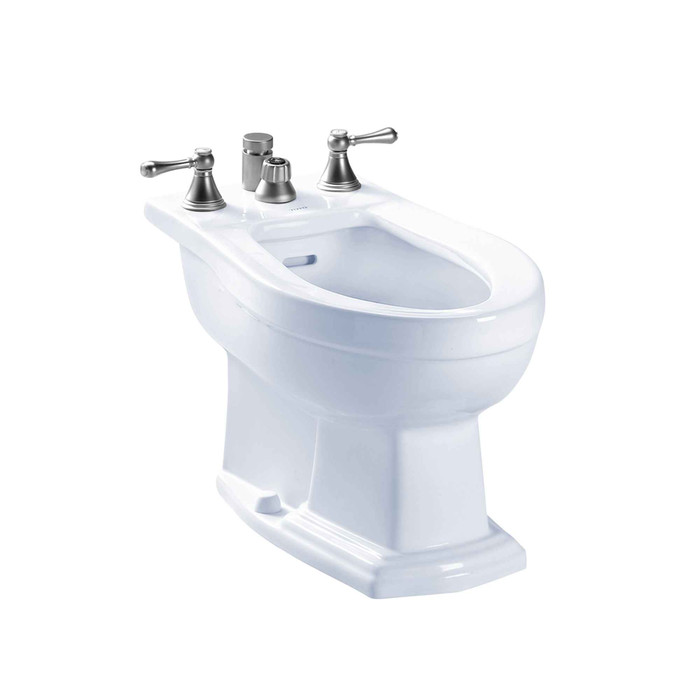

TOTO® Clayton® Deck Mount Vertical Spray Flushing Rim Bidet, Cotton White - BT784B#01 is a traditional designed bidet. The Clayton® features a flushing rim and a built-in overflow. The flushing rim assists in rinsing out the basin. The overflow prevents the water from filling up and spilling out of the wash basin. Faucet set is sold separately.
- Elegant Tradional Style Bidet
- Overflow Prevention
- Designed for Deck Mounted Faucets
- Vertical Spray Bidet with Flushing Rim
- Complete with Mounting Hardware
Manufacturer Resources
Spec Sheet
Product Specs
- Collection:
- Clayton
- Product Type:
- Bidet
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Bidet
- Product Length:
- 25.5
- Installation Category:
- Floor Mount/Floor Outlet
- Product Height:
- 15
- Product Weight:
- 48
- Product Width:
- 14.125
- Department:
- Plumbing
TOTO BT784B#01 – Frequently Asked Questions
1) What colors does the TOTO Clayton BT784B bidet come in, and how do I order the right one?

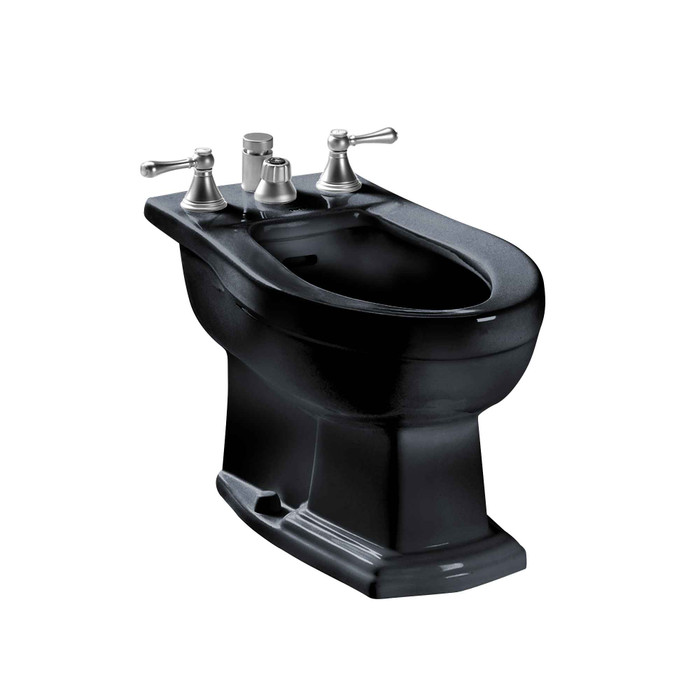

Five colors, each a different TOTO suffix on the same base number: Cotton White is BT784B#01, Bone is BT784B#03, Colonial White is BT784B#11, Sedona Beige is BT784B#12, and Ebony is BT784B#51. If you are matching an existing TOTO toilet or lavatory in the room, order the bidet in the same suffix, since that suffix is what keeps the glaze consistent across the fixtures.
2) Is the Clayton BT784B bidet floor mounted, and where does the waste go?
Floor mount with a floor outlet. The Clayton bidet sets on the finished floor and drains straight down through the floor, so the rough-in has to be a floor drain, not a wall stub. If the bathroom is roughed in for a wall outlet fixture, this one will not connect without rework.
3) How much space do I need for a TOTO Clayton bidet?
The Clayton BT784B measures 25.5 long, 14.125 wide and 15 high in inches. Use the 14.125 figure for side clearance planning next to a water closet or vanity, and the 25.5 for the projection off the wall. It weighs 48 pounds, so it is a two-person set for most crews.
4) What is the difference between a vertical spray bidet like the Clayton and a bidet seat or washlet?
Two different products entirely. The Clayton BT784B is a standalone china fixture that sets on its own floor drain beside the toilet, with a vertical spray delivered through a deck mounted faucet you buy separately, plus a flushing rim that rinses the basin. A bidet seat replaces the toilet seat on an existing water closet and needs no separate drain or floor space. Pick the Clayton when the bathroom is already roughed in for a second fixture or the design calls for a traditional suite; pick a seat when you are retrofitting a bathroom that has no bidet rough-in.
5) Does the TOTO Clayton bidet have an overflow?
Yes, the Clayton has a built in overflow in the basin, so if the faucet is left running the water routes to the drain instead of spilling onto the floor. In rental and multi-family work that is the detail that matters, since an unattended fill is the usual cause of a bidet water claim.
6) Can I specify the Clayton BT784B to match a traditional TOTO suite?
The BT784B is part of TOTO's Clayton collection, so it lines up with the other Clayton fixtures for a traditional styled bathroom. Specify it in the same color suffix as the rest of the suite, and remember the faucet is a separate line item on the order.
7) Where can I get the rough-in dimensions and repair parts for the TOTO BT784B?
TOTO publishes both a spec sheet and a parts manual for the BT784B Clayton bidet. The spec sheet carries the rough-in for the plumber, and the parts manual is what you pull from when a maintenance tech needs a replacement component years down the line. Both are worth keeping with the closeout documents on an institutional job.
