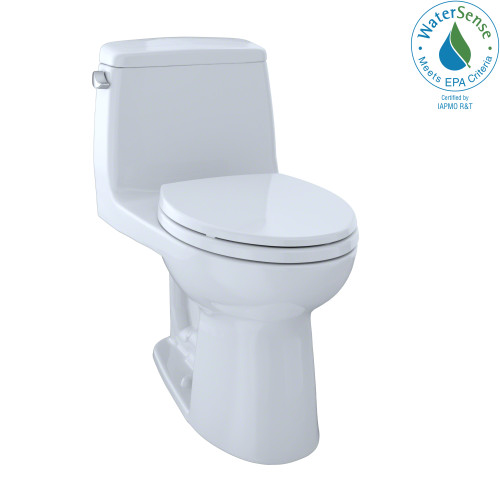

TOTO UltraMax II One-Piece Elongated Toilet — MS604124C
The TOTO UltraMax II is a sleek, one-piece elongated toilet engineered for high-efficiency performance and long-term ease of maintenance. Designed to TOTO's Universal Height standard, it delivers a comfortable seat position for a wide range of users and meets ADA, EPA WaterSense, CEC, and CALGreen requirements — making it a compliant choice for commercial, multi-family, and residential projects alike.
TORNADO FLUSH System
The UltraMax II uses TOTO's TORNADO FLUSH — a hole-free rim design with dual nozzles that generates a powerful centrifugal washing action, rinsing the bowl more thoroughly with just 1.28 GPF (or 1.0 GPF on select variants). The hole-free rim eliminates the hard-to-clean ledge found on conventional toilets.
CEFIONTECT Glaze (Select Variants)
Certain configurations include TOTO's CEFIONTECT — an ultra-smooth ceramic glaze that minimizes waste adhesion to the bowl surface. Combined with TORNADO FLUSH, CEFIONTECT reduces cleaning frequency and the need for harsh chemicals. CEFIONTECT availability varies by variant; confirm your selection at checkout.
One-Piece Design Benefits
The seamless one-piece construction eliminates the tank-to-bowl gap where dirt and debris accumulate in two-piece toilets, and removes the bolts and gaskets that are common leak points. The result is a cleaner profile and a lower long-term maintenance burden.
WASHLET+ Ready
The UltraMax II features a channel on the bowl surface designed to conceal the supply line and power cord of an optional TOTO WASHLET+ bidet seat, enabling seamless integration without exposed wiring.
Key Specifications
- Style: One-piece, elongated bowl
- Flush: TORNADO FLUSH — 1.28 GPF or 1.0 GPF (varies by variant)
- Flush Valve: 3-inch
- Flush Lever: Left-hand chrome trip lever
- Rough-In: 12 inches
- Rim Height: 16.125 inches
- Seat Height: 17.5 inches (Universal Height / ADA)
- Trapway Diameter: 2.125 inches
- Overall Dimensions: 28.375"L × 16.625"W × 28.75"H
- Weight: 104.3 lbs
- Installation: Floor mount / floor outlet
- Certifications: ADA, EPA WaterSense, CALGreen, CEC
What's Included
- Toilet tank and bowl
- SoftClose toilet seat
- Tank-to-bowl gasket and hardware
- Toilet bolt caps
Purchased Separately
- Wax ring
- Toilet mounting bolts
- Water supply lines
- Optional TOTO T40 WASHLET+ electronic bidet seat
Manufacturer Resources
MS604124CEF(R)(G)-Spec-Sheet
Product Specs
- ADA Compliant:
- Yes
- Battery Included:
- No
- CALGreen:
- Yes
- CEC:
- Yes
- Flush Valve Size:
- 3 inch
- Flush lever Location:
- Left
- Rim Height:
- 16.125
- Rough-In:
- 12
- Trapway Diameter:
- 2.125
- WaterSense:
- Yes
- Collection:
- UltraMax II
- Product Type:
- One-Piece Toilets
- Seat Height:
- 17.5
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Toilet
- Product Length:
- 28.375
- Gallons Per Flush (GPF):
- 1.28
- Installation Category:
- Floor Mount/Floor Outlet
- Product Shape:
- Elongated
- Product Height:
- 28.75
- Product Category:
- One-Piece Toilets
- Product Weight:
- 104.3
- Product Width:
- 16.625
- Department:
- Plumbing
