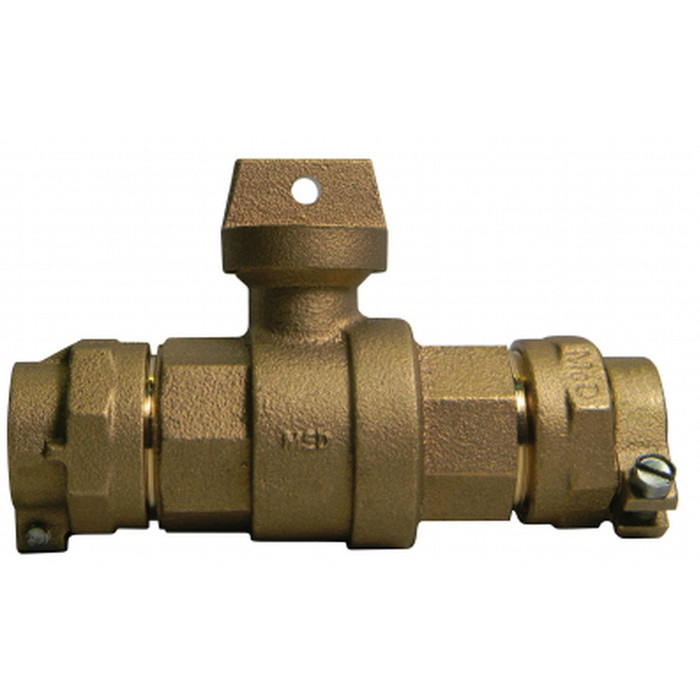

A.Y. McDonald 5133165 76100-22 1" CTS x CTS No-Lead Ball Curb Valve

A.Y. McDonald 5133165 76100-22 1" CTS x CTS No-Lead Ball Curb Valve

(No reviews yet) Write a Review

Model: 5133165

In Stock (leaves warehouse same day if ordered before 3pm ET)

$248.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

A.Y. McDonald 5133165 76100-22 1" CTS x CTS No-Lead Ball Curb Valve

The A.Y. McDonald 5133165 (model 76100-22) is a 1" ball-style curb stop built for underground water service shutoff between the main and the meter. It features CTS x CTS connections on both ends for direct joining to copper tube size polyethylene or copper service tubing, and it is manufactured to No-Lead (NL) specifications for potable water service applications. This curb valve is a standard rough-in component for water utility contractors, plumbers, and municipal service installers who need a reliable full-port shutoff buried below grade.

Key Features

  • Trade Size: 1" nominal size for standard residential and light commercial water service lines.
  • Connection Type: CTS x CTS (copper tube size) inlet and outlet for direct connection to CTS copper or poly service tubing without additional adapters.
  • Valve Type: Ball-style curb valve for positive full-port shutoff of underground water service lines.
  • No-Lead Compliant: Manufactured to No-Lead (NL) standards for use in potable water service applications.
  • Model Reference: A.Y. McDonald model 76100-22, referenced by manufacturer part number 5133165.

Technical Specifications

  • Manufacturer: A.Y. McDonald
  • Model Number: 76100-22
  • Trade Size: 1"
  • End Connections: CTS x CTS
  • Compliance: No-Lead (NL)

Typical Applications

  • Underground Water Service Shutoff
  • Municipal and Utility Water Main-to-Meter Connections
  • Residential and Light Commercial Water Service Installation
  • New Construction and Water Service Replacement

Why A.Y. McDonald?

A.Y. McDonald is a long-established name in waterworks and plumbing rough-in components, and the 76100-22 curb valve reflects that focus with a No-Lead compliant, CTS x CTS ball valve design built for the demands of buried water service installations. Contractors specify A.Y. McDonald curb stops for dependable full-port shutoff performance where the valve will be accessed infrequently but must operate reliably when needed.

Manufacturer Resources

Product Specs

list_batch:
AYM-20260924
Product Type:
Curb Valve
Connection Type:
CTS x CTS
Standards:
No-Lead
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Plumbing
Product Size:
1"

A.Y. McDonald 5133165 – Frequently Asked Questions

1) Will the A.Y. McDonald 76100-22 curb stop connect directly to 1 inch poly water service tubing, or do I need adapters?
Both ends of the 76100-22 are CTS (copper tube size) connections, so a 1 inch CTS copper or CTS-sized polyethylene service tube joins directly with no adapters. Watch the tubing call-out: poly water service is sold in both CTS and IPS sizing, and an IPS pipe will not land in a CTS end. If your service line is 1 inch IPS poly, you need an IPS-end curb stop or a CTS-to-IPS transition.
2) Is this A.Y. McDonald curb valve legal for potable drinking water service?
The 76100-22 is manufactured to No-Lead specifications for potable water service, which is what utilities and inspectors look for on a main-to-meter shutoff. It is the standard rough-in choice for residential and light commercial water service lines.
3) What is the difference between a ball curb valve and a plug or inverted-key curb stop?
A ball-type curb stop like the 76100-22 uses a rotating ball for positive full-port shutoff, so flow is unrestricted when open and the seal does not depend on a tapered plug seating in a body. Older plug and inverted-key stops are still used on many systems, but they restrict flow more and are more prone to sticking after years buried. If your utility spec calls for a specific stop style, match the spec; otherwise ball style is the common choice for new 1 inch service.
4) Where in the water service run does the 76100-22 curb stop go?
It goes buried below grade between the water main and the meter, typically at the property line under a curb box or service box so the utility or plumber can shut off the house without entering the building. Plan for a curb box and key wrench long enough to reach the valve at your bury depth, since neither is part of the valve.
5) Can I use this A.Y. McDonald 1 inch ball curb valve for a water service replacement on an existing line?
Yes, replacement of an existing service is one of its intended uses, along with new construction. The controlling detail is the existing tubing: the valve takes 1 inch CTS on both inlet and outlet, so if you are cutting into 1 inch CTS copper or CTS poly it drops in. Older galvanized or IPS-sized lines need a transition fitting or a different end configuration.
6) Which A.Y. McDonald part number do I order for the 1 inch CTS x CTS no-lead ball curb stop?
Order A.Y. McDonald 5133165, which is model 76100-22, the 1 inch CTS x CTS No-Lead ball curb valve. Both the catalog model reference and the part number describe the same item, so either will get you the right valve.
