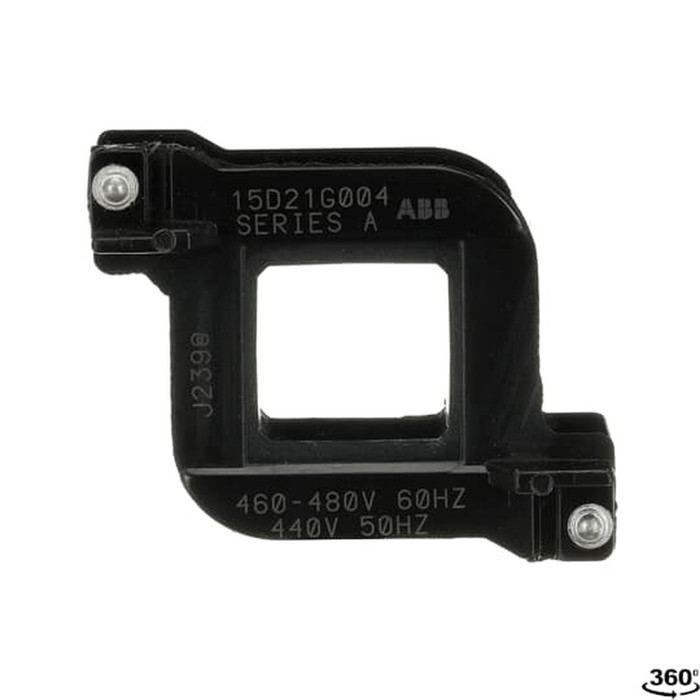

ABB 15D2 Series Replacement Magnet Coil, NEMA Size 00/0/1

ABB 15D2 Series Replacement Magnet Coil, NEMA Size 00/0/1

(No reviews yet) Write a Review

Model: 15D21G004

In Stock (leaves warehouse same day if ordered before 3pm ET)

$461.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB 15D2 Series Replacement Magnet Coil, NEMA Size 00/0/1

The ABB 15D2 Series Replacement Magnet Coil is a family of operating coils engineered for NEMA rated 300-Line and 200-Line magnetic contactors and starters in NEMA Size 00, 0, and 1 configurations. This page covers the full 15D2 Series coil lineup, available in six model variants (15D21G004, 15D21G024, 15D22G003, 15D21G003, 15D21G023, 15D22G024) so maintenance and MRO teams can select the exact coil that matches their contactor or starter build. Across the series, coils are rated 440V at 50 Hz and 460-480V at 60 Hz, providing a dependable coil upgrade or replacement path for maintaining reliable contactor and starter operation across dual-frequency electrical systems used in both 50 Hz and 60 Hz regions. Each coil ships individually packaged, 1 EA per package, for straightforward inventory management, MRO stocking, and field replacement on existing motor control equipment.

Key Features

  • NEMA Compatibility: Designed for NEMA rated 300-Line and 200-Line magnetic contactors and starters, supporting straightforward like-for-like replacement.
  • Size Range: Fits NEMA Size 00, 0, and 1 contactor and starter frames, covering a common range of light- and medium-duty motor control applications.
  • Dual-Frequency Voltage Rating: Rated 440V at 50 Hz and 460-480V at 60 Hz across the series, giving electrical maintenance teams flexibility to service equipment operating on either regional power standard.
  • Model Selection: Available in six 15D2 Series model numbers (15D21G004, 15D21G024, 15D22G003, 15D21G003, 15D21G023, 15D22G024) so the correct coil can be matched to the specific contactor or starter assembly.
  • Component Type: Magnet coil designed as a direct operating component for contactor and starter magnetic assemblies, engineered to restore proper coil pull-in and holding function.
  • Packaging: Supplied 1 EA per package for easy stocking, inventory tracking, and single-unit field replacement.

Technical Specifications

  • Voltage at 50 Hz: 440V
  • Voltage at 60 Hz: 460-480V
  • NEMA Size: 00, 0, 1
  • Packaging: 1 EA
  • Voltage Rating: 440-480V
  • Available Models: 15D21G004, 15D21G024, 15D22G003, 15D21G003, 15D21G023, 15D22G024

Typical Applications

  • Replacement Coils for NEMA Magnetic Contactors
  • Motor Starter Maintenance and Repair
  • Industrial Motor Control Panels
  • Commercial and Industrial Electrical Equipment Servicing
  • OEM and MRO Contactor Rebuild Programs

Why ABB?

ABB is a recognized name in industrial motor control components, and the 15D2 Series magnet coil lineup is built to match the fit and dual-frequency voltage requirements of NEMA 300-Line and 200-Line contactors and starters. Choosing a properly matched replacement coil from this series helps maintain consistent contactor pull-in performance and supports reliable, code-compliant operation of motor control equipment in professional electrical and industrial environments. For maintenance teams managing mixed 50 Hz and 60 Hz installations, standardizing on the ABB 15D2 Series coil family across NEMA Size 00, 0, and 1 frames can simplify spare-parts inventory while keeping contactors and starters performing to their original design specifications.

Manufacturer Resources

Product Specs

Product Type:
Magnet Coil
Series:
15D2
Voltage Rating:
440-480V
Department:
Electrical
Product Group:
Wiring Devices
Configuration:
NEMA Size 00/0/1
Product Subgroup:
Circuit Breakers

ABB 15D21G004 – Frequently Asked Questions

1) Will the ABB 15D2 coil work on a contactor running 480V, 60 Hz?
Yes. The 15D2 Series magnet coil is rated 440V at 50 Hz and 460-480V at 60 Hz, so a 480V 60 Hz control circuit is inside its range. The same coil covers 440V 50 Hz equipment, which is what makes it useful in plants running mixed regional power.
2) What size ABB contactors and starters does the 15D2 magnet coil fit?
It fits NEMA Size 00, 0, and 1 frames on ABB NEMA rated 300-Line and 200-Line magnetic contactors and starters. That covers the light and medium duty end of the motor control range. If your starter is a Size 2 or larger frame, this coil is not the one.
3) Which ABB 15D2 part number do I order?
Six catalog numbers are offered: 15D21G003, 15D21G004, 15D21G023, 15D21G024, 15D22G003 and 15D22G024. Coils are not interchangeable by size alone, so pull the number off the old coil or off the starter's coil data label and match it, rather than picking by NEMA size.
4) Can one coil part number standardize my spares across Size 00, 0 and 1 starters?
The 15D2 Series as a family spans NEMA Size 00, 0 and 1 on 300-Line and 200-Line ABB gear, and it covers both 440V 50 Hz and 460-480V 60 Hz, so a facility with mixed frames and mixed frequency stays inside one series. You still stock by the specific catalog number your starters call for, but the series keeps the spares list short.
5) Is a 24 Vdc control circuit coil available in the ABB 15D2 Series?
No. The 15D2 coils are line-voltage AC units rated 440V at 50 Hz and 460-480V at 60 Hz. For a 24 Vdc control circuit you need a DC coil, such as the Eaton Freedom Series 24 Vdc magnet coil for Size D-F frames.
6) Does the ABB 15D2 coil come more than one to a box?
Single unit. Each coil ships individually packaged, 1 EA per package, which suits stocking one or two per line on an MRO shelf rather than buying a bulk carton.
