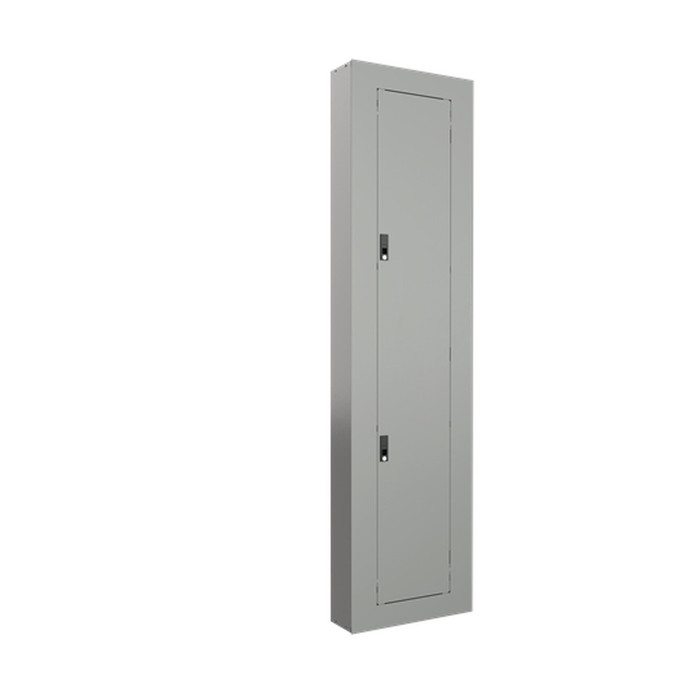

ABB AF A-Series Surface Mount Panelboard Front Cover

ABB AF A-Series Surface Mount Panelboard Front Cover

(No reviews yet) Write a Review

Model: AF49S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$242.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB AF A-Series Surface Mount Panelboard Front Cover

The ABB AF A-Series Surface Mount Panelboard Front Cover is a surface-mount (SURF) trim cover engineered for ABB's Pro-Stock, unassembled lighting panelboards. This page covers the full A-Series surface-mount front family, available across eight front-height options ranging from 25.5 in. High x 20 in. Wide up to 76.5 in. High x 20 in. Wide, with panel width held constant at 20 in. across every option. Selecting the correct front height for a given installation ensures a proper, code-compliant fit on the corresponding A-Series panelboard enclosure. Each unit ships packaged 1 EA for straightforward job-site ordering and stocking, giving electrical contractors a standard, field-ready trim option when finishing out an unassembled lighting panel installation.

Key Features

  • Series: Part of the ABB A-Series panelboard front family, designated the F31S A-Series front.
  • Configuration: Surface mount (SURF) front cover designed for surface-installed panelboard enclosures.
  • Height Range: Available in eight front-height options from 25.5 in. High x 20 in. Wide through 76.5 in. High x 20 in. Wide, so installers can match the exact height of the corresponding A-Series lighting panel.
  • Constant Width: All height options share a fixed 20 in. Wide dimension for consistent fit across the A-Series panelboard line.
  • Application Fit: Selected by the correct front height to match the corresponding A-Series panelboard for a proper, code-compliant fit.
  • Product Line: Compatible with ABB Pro-Stock, unassembled standard lighting panels.
  • Packaging: Supplied 1 EA per unit for simple stocking and job-site ordering.

Technical Specifications

  • Product Group: Wiring Devices
  • Front Height Options: 25.5 in. High x 20 in. Wide, 31.5 in. High x 20 in. Wide, 37.5 in. High x 20 in. Wide, 43.5 in. High x 20 in. Wide, 49.5 in. High x 20 in. Wide, 55.5 in. High x 20 in. Wide, 64.5 in. High x 20 in. Wide, 76.5 in. High x 20 in. Wide.
  • Configuration: Surface Mount (SURF)
  • Packaging: 1 EA

Typical Applications

  • Lighting Panelboard Assemblies
  • Commercial and Industrial Electrical Distribution
  • Panelboard Trim and Cover Replacement
  • New Construction and Renovation Projects
  • Pro-Stock Unassembled Panel Finishing

Why ABB?

ABB A-Series panelboard fronts are built to match the exact height of their corresponding lighting panel across the full 25.5 in. to 76.5 in. height range, helping ensure a clean, code-compliant finish for commercial and industrial electrical distribution work. Choosing the correct ABB A-Series front for a given panel height simplifies stocking unassembled Pro-Stock panels while maintaining consistent fit and finish across an installation. With a standardized 20 in. Wide platform spanning every height option, ABB gives electrical contractors a dependable, repeatable trim solution for every job.

Manufacturer Resources

Product Specs

Product Type:
Panelboard Front Cover
Configuration:
Surface Mount
Series:
A-Series
Department:
Electrical
Product Group:
Wiring Devices
Trade Size:
25.5 in. - 76.5 in. High x 20 in. Wide
Product Subgroup:
Panelboards & Load Centers

ABB AF49S – Frequently Asked Questions

1) What sizes does the ABB A-Series surface mount panelboard front come in?
The A-Series surface mount front is sold in eight heights, all 20 inches wide: 25.5, 31.5, 37.5, 43.5, 49.5, 55.5, 64.5 and 76.5 inches high. The part numbers run AF25S, AF31S, AF37S, AF43S, AF49S, AF55S, AF64S and AF76S. You pick the front by the height of the panelboard interior/box you are trimming out, since the front has to match that height to close up properly.
2) Is the ABB AF-series front for surface mount or flush mount panelboards?
Surface mount only. The AF*S fronts carry the SURF designation and are built for panelboard enclosures mounted on the wall surface, not recessed in it. If your can is set into the wall you need a flush front instead, not this one.
3) Which ABB panelboards do these A-Series fronts go with?
They are made for ABB Pro-Stock unassembled standard lighting panelboards in the A-Series line. Pro-Stock panels ship unassembled, so the front is ordered as a separate piece and matched to the panel height at the job. If you are trimming a different ABB panel family or another manufacturer's can, this front is not the one to order.
4) Can I use an ABB A-Series front as a replacement cover on an existing lighting panel?
Yes, that is one of the normal uses. If the existing panel is an ABB A-Series surface mount lighting panelboard and the front is damaged or missing, order the AF*S front that matches the panel height, from 25.5 inches up to 76.5 inches, all 20 inches wide. Measure the existing box before ordering rather than counting circuits, since height is what the front is selected by.
5) Does the ABB A-Series front include the panelboard interior or breakers?
No. The AF*S is the trim cover only, the piece that finishes the face of a surface mounted panelboard enclosure. The interior, box and breakers are ordered separately, which is how ABB's Pro-Stock unassembled lighting panel program is set up.
6) Are all ABB A-Series surface mount fronts the same width?
Yes, every one of the eight is 20 inches wide. Only the height changes, from 25.5 inches on the AF25S to 76.5 inches on the AF76S. That makes the ordering decision a single measurement: how tall is the panel.
7) How is the ABB panelboard front packaged, and do I get one per order?
Each front is supplied 1 EA, so one order line equals one cover. That suits both single-panel jobs and contractors stocking several heights on the truck for multi-panel buildouts.
