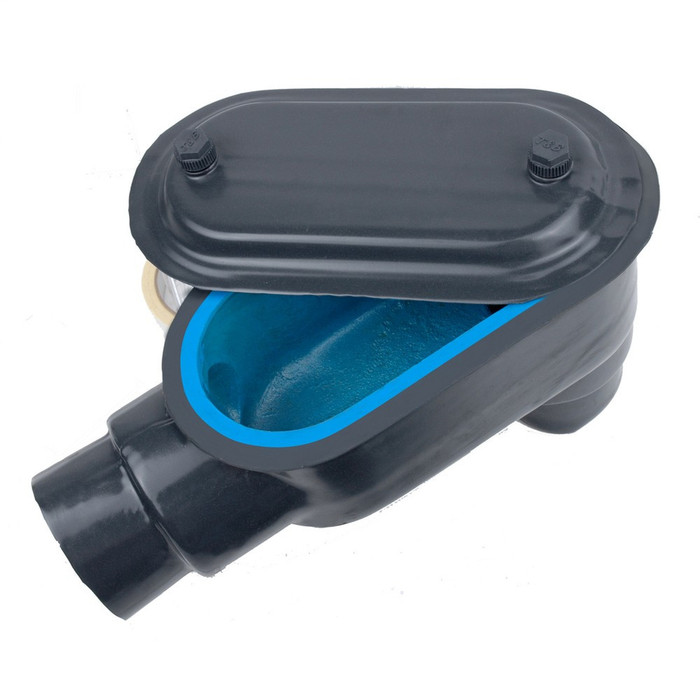

ABB Form 7 PVC-Coated LB Conduit Body, Iron
The ABB Form 7 PVC-Coated LB Conduit Body connects conduit sections and makes 90° bends in conduit runs while providing access to conductors for maintenance and future system changes. Built with an iron body and a minimum .040 inch PVC coating bonded to the exterior, this Form 7 body is available in 3/4 Inch/21 Metric and finished in dark gray for corrosion resistance in demanding industrial environments. It is UL E2969 Listed and features Ocal pressure-sealing sleeves on all threaded hubs for secure, weather-resistant connections.
Key Features
- Trade Size: 3/4 Inch/21 Metric for connecting conduit sections and branch runs.
- Durable Construction: Iron body with a minimum .040 inch PVC coating bonded to the exterior for long-term corrosion resistance.
- LB Shape / 90° Configuration: Form 7 LB-shape body allows 90° bends in conduit runs.
- Pressure-Sealing Hubs: Ocal pressure-sealing sleeves on all threaded hubs for a secure, sealed connection.
- Flat-Back Design: Flat back increases cubic inch capacity and keeps the body more stable during installation, requiring fewer conduit straps.
- Double-Coated Protection: Body and cover are double coated with a nominal .002 in. blue urethane on both interior and exterior before the PVC coating is applied.
- Sealed Cover: Molded-flange cover seals against the conduit body's flat-surfaced opening; shipped with a cover and encapsulated stainless steel screws.
- Finish: Dark gray PVC coating.
Certifications & Compliance
- UL E2969 Listed
Technical Specifications
- TYPE: Form 7 Conduit Body
- COLOR: Dark Gray
Typical Applications
- Conduit and Raceway Systems
- Corrosive and Wash-Down Industrial Environments
- Pull Outlets for Conductors Being Installed
- Splice and Tap Access Points for Conductors
- Branch Conduit Run Connections
Why ABB?
ABB's Ocal Form 7 conduit bodies pair an iron body with double urethane coating and a minimum .040 inch bonded PVC exterior coating, delivering durable corrosion protection for tough industrial environments. UL E2969 listing and pressure-sealing hub sleeves help ensure reliable, code-compliant performance for conduit installations that require ongoing access for maintenance and future system changes.
Manufacturer Resources
Product Specs
- Product Group:
- Conduit & Raceway
- Product Color:
- Dark Gray
- Product Type:
- Type LB Conduit Body
- Department:
- Electrical
- Series:
- Form 7
- Listing:
- UL Listed
- Product Subgroup:
- Conduit Bodies & Covers
- Product Material:
- Iron
- Application:
- Act As Pull Outlets for Conductors Being Installed
Ocal LB27-G – Frequently Asked Questions
1) What trade sizes does the ABB Ocal Form 7 PVC-coated LB conduit body come in?
Two: 3/4 inch (LB27-G) and 1 inch (LB37-G). Both are threaded-hub LB bodies with the same iron body and PVC-coated finish, so pick the one matching your rigid conduit trade size.
2) Does this LB conduit body ship with a cover and gasket screws, or do I order the cover separately?
It ships assembled with a cover and encapsulated stainless steel screws. The cover has a molded flange that seals against the body's flat-surfaced opening, so no separate gasket kit is needed to close it up.
3) Can I use an LB body instead of bending a 90 in rigid conduit?
That is what it is for. The LB shape turns the run 90 degrees and gives you a removable cover for pulling, splicing, or tapping conductors, so you get access at the corner instead of a sealed factory elbow. If you will never need to reach the conductors at that point, an elbow is the simpler fitting; if the corner is a pull point or a future change point, use the LB.
4) Do I need thread sealant or tape on the hubs of the Ocal Form 7 LB?
The threaded hubs come with Ocal pressure-sealing sleeves built in, which is what makes the joint weather-resistant as the conduit is drawn up. That sleeve is the seal at the hub, so you are not relying on field-applied tape to keep water out of the body.
5) What does the flat back on this Form 7 LB body actually get me on the install?
Two things. The flat back raises the cubic inch capacity of the body, which helps when you are pulling several conductors through, and it sits stable against the mounting surface so the run needs fewer conduit straps to hold position while you make up the hubs.
6) What color is the PVC coating on the Ocal Form 7 LB, for matching existing coated conduit on site?
Dark gray. The visible PVC coating on both body and cover is dark gray, which is the standard Ocal coated-system appearance, so it matches alongside existing coated rigid conduit and fittings in the same run.
