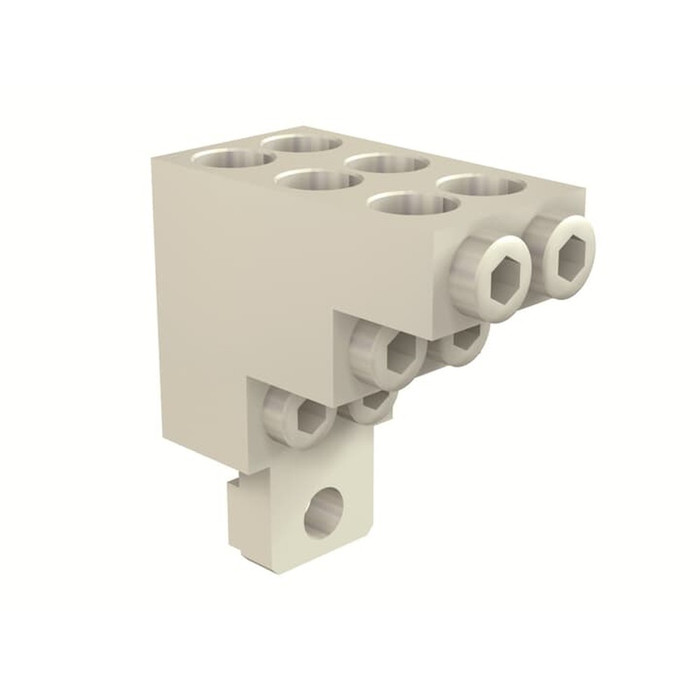

ABB KXT XT2 Front Terminal Multicable Connector Kit, Copper
The ABB KXT Front Terminal Multicable Connector Kit is engineered for front-terminal cable connections on ABB XT2 series molded case circuit breakers. This kit is designed for copper cable terminations and is available in 6 x 14" and 6 x 12" configurations, giving installers a matched option for consolidating multiple copper conductors at the breaker's front terminals. Supplied as a 3-piece set and manufactured to UL/CSA compliance standards, this connector kit supports reliable, code-conscious terminations in commercial and industrial electrical distribution equipment built on the XT2 platform.
Key Features
- Front Terminal Design: Engineered for front-of-breaker cable entry on ABB XT2 molded case circuit breakers, simplifying panel wiring access.
- Multicable Capacity: Available in 6 x 14" and 6 x 12" copper cable configurations for consolidated conductor termination at the breaker.
- Copper Cable Compatibility: Purpose-built for copper conductor terminations, supporting consistent contact integrity at the connection point.
- 3-Piece Kit: Supplied as a 3-piece set for complete front-terminal outfitting of the XT2 breaker.
- XT2 Platform Fit: Matched to the ABB XT2 series for correct mechanical and electrical fit within the breaker's terminal assembly.
- UL/CSA Compliance: Manufactured to UL/CSA standards for use in installations requiring recognized electrical compliance.
Certifications & Compliance
- UL/CSA Compliant
Technical Specifications
- Series: XT2
- Available Sizes: 6 x 14", 6 x 12"
- Cable Material: Copper
- Kit Quantity: 3 pcs
- Compliance Standard: UL/CSA
- Packaging: 1 ea
Typical Applications
- Molded Case Circuit Breaker Terminations
- Commercial and Industrial Panelboard Wiring
- Copper Conductor Cable Connections
- ABB XT2 Breaker Installations and Retrofits
- New Construction and Panel Upgrade Projects
Why ABB?
ABB engineers the XT2 front terminal connector kit to fit precisely within the XT2 molded case circuit breaker terminal assembly, supporting dependable copper cable connections built to UL/CSA compliance across both 6 x 14" and 6 x 12" configurations. For electrical professionals specifying or servicing ABB XT2 breakers, this kit provides a manufacturer-matched termination solution designed for consistent, code-conscious performance in demanding panel environments.
Manufacturer Resources
Spec Sheet
Product Specs
- Product Type:
- Multicable Connector Kit
- Series:
- XT2
- Standards:
- UL/CSA
- Product Size:
- 6 x 14"
- Product Size:
- 6 x 12"
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Material:
- Copper
- Trade Size:
- 6 x 14" - 6 x 12"
- Product Subgroup:
- Conduit Fittings
ABB KXT2MC-3PC – Frequently Asked Questions
1) Will the ABB KXT2MC-3PC connector kit fit an XT2 molded case breaker?
Yes. The KXT2MC-3PC is the front terminal multicable connector kit matched to the ABB XT2 series molded case circuit breaker terminal assembly. It ships as a 3-piece set, which covers a three-pole breaker with one connector per pole. Note that the companion 6 x 12 inch kit is the KXT4MC-3PC, so check the part number against the frame you are wiring before you order.
2) Can I land aluminum conductors in the ABB XT2 front terminal multicable connector kit?
No. The XT2 front terminal multicable kit is built for copper conductors only, in a 6x14-2 AWG configuration. If the feeder run is aluminum, this is the wrong lug and you need an aluminum-rated connector instead.
3) What size wire can I terminate with the ABB XT2 multicable connector kit?
The kit takes copper cable in a 6x14-2 AWG configuration, meaning it is set up to land multiple smaller conductors at a single breaker terminal rather than one large feeder. If you are landing a single heavy conductor, a multicable connector is not what you want.
4) What is the difference between the two ABB multicable connector kits, 6 x 14 and 6 x 12?
Two sizes are offered: the 6 x 14 inch kit is part number KXT2MC-3PC and the 6 x 12 inch kit is KXT4MC-3PC. Both are 3-piece copper front terminal sets built to UL/CSA. Order by the part number that matches your breaker frame, not by the size alone.
5) Why would I use a front terminal connector kit instead of a rear or extended terminal on an XT2 breaker?
Front terminal kits bring the cable in at the face of the breaker, which is what you want when the panel is wired from the front and you need working access at the lug. Rear or extended terminals are the choice when the breaker connects to bus from behind or you need the landing point moved off the breaker body. This kit is the front-entry version for the XT2 platform.
6) How many connectors come in the ABB XT2 multicable kit, and do I need more than one kit?
Each kit is a 3-piece set and packaged one kit per each. Three pieces outfit a three-pole XT2 breaker at one connector per pole. A four-pole breaker, or a second breaker, needs additional kits.
7) Can I use the ABB XT2 multicable connector kit on an existing breaker during a panel upgrade?
Yes, it is intended for XT2 breaker installations and retrofits as well as new construction, as long as the breaker is an ABB XT2 and the conductors being landed are copper. The kit is the manufacturer-matched termination for that terminal assembly, so the mechanical fit in the existing breaker is accounted for.
