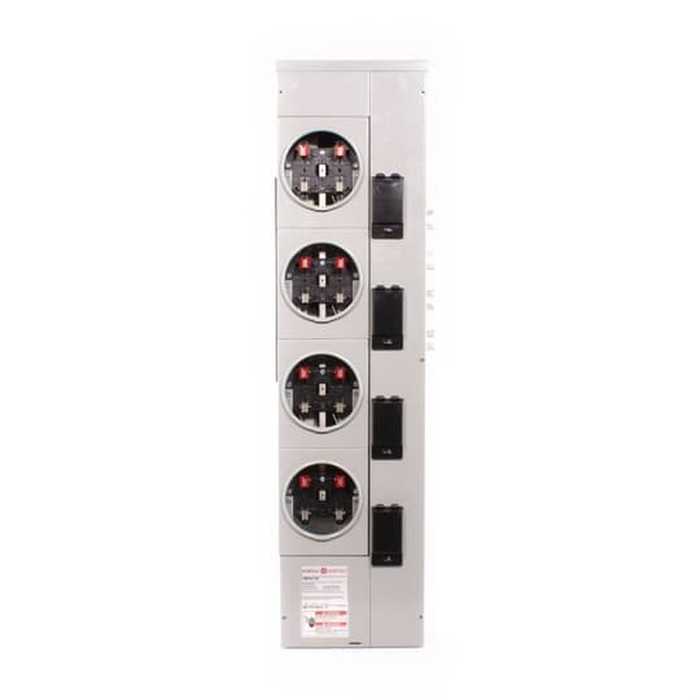

ABB MeterMod III Meter Stack Socket, 800A, 1-Phase

ABB MeterMod III Meter Stack Socket, 800A, 1-Phase

(No reviews yet) Write a Review

Model: TMP8412R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,215.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB MeterMod III Ring-Type Meter Stack Socket, 800A, 1PH

The ABB MeterMod™ III meter stack is a ring-type metering socket engineered for multi-occupancy electrical service, delivering an 800A rating on a Single-Phase, Three-Wire system at 120/240 V ac. Configured with 4 individual meter cutouts, this stack lets utilities, property managers, and electrical contractors meter multiple tenants from a single consolidated service point while maintaining a compact, code-organized footprint. Backed by ABB engineering and manufacturing standards, the MeterMod III platform is designed for dependable, long-term performance in demanding commercial and multi-family metering applications where accurate, individualized billing is required.

Key Features

  • Ring-Type Configuration: Socket-type ring construction simplifies meter installation, removal, and field inspection without disturbing adjacent service connections in the stack.
  • 4 Cutouts: Four dedicated meter positions allow individual tenant metering from one consolidated stack assembly, streamlining installation over separate individual sockets.
  • 800A Rating: Sized to handle the combined service demand of multi-tenant buildings, apartment complexes, and commercial installations feeding multiple downstream loads.
  • Single-Phase, Three-Wire Service: Matches standard single-phase distribution common to residential and light commercial properties, supporting 120/240 V ac loads.
  • 120/240 V ac Voltage Rating: Compatible with standard North American single-phase utility service voltages for consistent, code-recognized metering.
  • MeterMod™ III Platform: Part of ABB's modular meter stack system engineered for consistent fit, form, and function across metering equipment lines.

Technical Specifications

  • Number Of Cutouts: 4
  • Phase: Single-Phase, Three-Wire
  • Voltage Rating: 120/240 V ac
  • Type: MeterMod™ III

Typical Applications

  • Multi-Tenant Apartment and Condominium Metering
  • Commercial Meter Bank Installations
  • Utility Service Entrance Metering
  • Property Management Electrical Upgrades and Retrofits
  • New Construction Multi-Family Developments
  • Mixed-Use Buildings Requiring Individualized Tenant Billing

Why ABB?

ABB's MeterMod III meter stacks are engineered to keep multi-tenant electrical metering organized, accessible, and reliable over the long service life these installations demand. With a ring-type socket design, an 800A rating, and clearly defined Single-Phase, Three-Wire 120/240 V ac service, this meter stack gives contractors, property managers, and utilities a dependable foundation for code-compliant, professional-grade metering work across apartment, condominium, and commercial properties.

Product Specs

Series:
MeterMod III
Amperage Rating:
800A
Product Group:
Power Distribution
Voltage Rating:
120/240V AC
Department:
Electrical
Product Type:
Meter Stack Socket
Product Subgroup:
Metering & Meter Sockets

ABB TMP8412R – Frequently Asked Questions

1) What service does the ABB MeterMod III 800A meter stack socket work on?
The MeterMod III stack is built for single-phase, three-wire service at 120/240V ac, with an 800A rating on the stack. That is the standard North American residential and light commercial service arrangement, so it suits apartment, condo, and mixed-use buildings feeding 120/240V tenant loads. It is not a three-phase stack.
2) How many tenants can I meter off one ABB MeterMod III 800A stack?
Four. The stack is configured with four individual meter cutouts, so four tenants get their own meter position off a single consolidated service point. If the building has more than four units, you are looking at additional stacks or a larger cutout configuration.
3) Should I order the ring-type or the ringless ABB MeterMod III meter stack?
That call is usually made by the serving utility, not the installer, since it is the utility that seals the meter. Ring-type uses a sealing ring around the meter collar; ringless uses a hinged cover over the socket. The MeterMod III is offered both ways: ring-type as TMP8412R, and ringless as TMPR8312RHB and TMPR8412RHB. Check the utility's metering standard for the jurisdiction before you commit, because the two are not interchangeable in the field.
4) What is the difference between ABB MeterMod III TMPR8312RHB and TMPR8412RHB?
Both are ringless MeterMod III meter stack sockets. TMPR8312RHB is the 120 volt option and TMPR8412RHB is the 240 volt option. Match the part number to the service voltage the utility is bringing in so the socket is ordered right the first time.
5) Is an 800A meter stack the right choice, or do I need individual meter sockets?
A stack makes sense when you are metering several tenants from one service point. Four positions land in one enclosure instead of four separate sockets with four sets of service conductors, which cuts install labor and keeps the service entrance tidy. Separate individual sockets are the better answer when the meters have to be scattered across a site or added one at a time. The 800A rating is sized for the combined demand of the four positions, so size the service against total connected load, not per unit.
6) Can a meter be pulled from an ABB MeterMod III stack without cutting power to the other tenants?
The ring-type socket construction lets a meter be set, pulled, or inspected in its own position without disturbing adjacent service connections in the stack. That matters on an occupied building, where killing three other apartments to swap one meter is not an option.
7) Is the ABB MeterMod III 800A stack suitable for a retrofit on an existing apartment building?
Yes, it is intended for property management electrical upgrades and retrofits as well as new multi-family construction, utility service entrance metering, and commercial meter banks. On a retrofit the deciding factors are whether the existing service is single-phase three-wire 120/240V, whether four positions cover the unit count, and whether your utility accepts the ring-type or ringless version.
