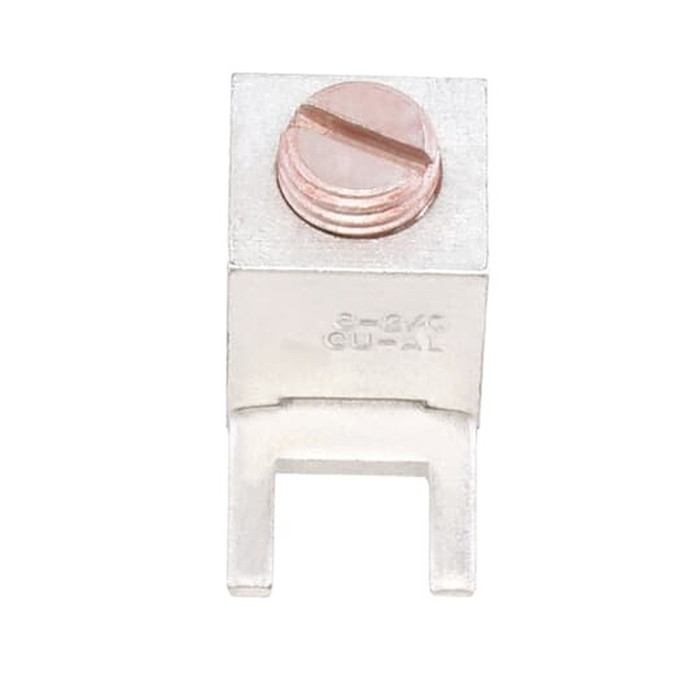

ABB TGL Series Equipment Ground Kit

ABB TGL Series Equipment Ground Kit

(No reviews yet) Write a Review

Model: TGL20

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB TGL Series Equipment Ground Kit

The ABB TGL Series Equipment Ground Kit provides a reliable equipment grounding solution engineered for ABB Spec-Setter safety switches used across residential, commercial, and industrial electrical systems. This family is available in five models — TGL1, TGL2, TGL20, TGL3, and TGL6 — so electricians can match the correct ground kit to the specific Spec-Setter safety switch enclosure they are outfitting, whether it's a general duty switch for a light commercial job or a heavy-duty, dust-tight, or stainless steel switch for a cement foundry, steel mill, or processing plant. Across the TGL Series lineup, the shared rating is 600V AC and 600A, matching the demands of both general duty and heavy-duty safety switch installations. Each kit is supplied 1 EA, making it a straightforward add-on for electricians outfitting ABB safety switch enclosures with proper equipment grounding hardware.

Key Features

  • Model Range: Available in TGL1, TGL2, TGL20, TGL3, and TGL6 configurations to match the specific ABB Spec-Setter safety switch enclosure being grounded.
  • Voltage Rating: 600V AC across the TGL Series, matching the rating of ABB heavy-duty and general duty Spec-Setter safety switches for consistent system compatibility.
  • Amperage Rating: 600A rated capacity, supporting demanding industrial and commercial circuit grounding requirements.
  • Series: Part of the ABB TGL Series equipment ground kit lineup designed specifically for ABB Spec-Setter safety switch enclosures.
  • Broad Compatibility: Built to complement ABB general duty, heavy-duty, dust-tight, stainless steel, and double throw safety switch product lines used for emergency generator applications.
  • Rugged, Easy Installation: Designed to pair with ABB's rugged, reliable, and easy-to-install Spec-Setter safety switch platform.
  • Packaging: Supplied 1 EA per kit for simple project planning, quoting, and ordering.

Technical Specifications

  • Series: TGL
  • Model Options: TGL1, TGL2, TGL20, TGL3, TGL6
  • Voltage Rating: 600V AC
  • Amperage Rating: 600A
  • Country of Origin: UKN
  • Buy American Act (BAA) Compliant: Contact Manufacturer
  • American Recovery and Reinvestment Act (ARRA) Compliant: Contact Manufacturer
  • Packaging: 1 EA

Typical Applications

  • Equipment Grounding for ABB Spec-Setter Safety Switches
  • Commercial and Industrial Electrical Installations
  • Heavy-Duty Safety Switch Enclosures in Cement Foundries, Steel Mills, and Processing Plants
  • Residential and Light Commercial Safety Switch Setups
  • Emergency Generator Double Throw Switch Systems
  • New Construction and Renovation Electrical Projects

Why ABB?

ABB safety switches are built to be rugged, reliable, and easy to install, whether the application is a light commercial building or a demanding industrial environment like a cement foundry, steel mill, or processing plant. From general duty and heavy-duty switches to dust-tight, stainless steel, and double throw configurations for emergency generators, ABB covers a broad range of safety switch needs. The TGL Series Equipment Ground Kit extends that same dependable design philosophy to equipment grounding, with every model in the TGL1 through TGL6 lineup rated 600V AC and 600A, helping electrical professionals complete Spec-Setter safety switch installations with confidence.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Ground Kit
Voltage Rating:
600V
Amperage Rating:
600A
Series:
TGL
Department:
Electrical
Product Group:
Grounding & Bonding
Country of Origin:
UKN
Product Subgroup:
Grounding & Bonding

ABB TGL20 – Frequently Asked Questions

1) What is the ABB TGL ground kit used for in a safety switch installation?
The TGL Series kit is the equipment grounding hardware you add inside an ABB Spec-Setter safety switch enclosure so the equipment grounding conductors have a proper termination point. It is not part of the switching mechanism; it is the ground bar/lug assembly that completes the enclosure's grounding. Rated 600V AC and 600A, it suits general duty as well as heavy-duty switch installations.
2) Which ABB TGL ground kit model do I order - TGL1, TGL2, TGL3, TGL6 or TGL20?
Five models are offered: TGL1, TGL2, TGL3, TGL6 and TGL20. They are ordered by model number against the ABB safety switch you are outfitting, so match the kit to the switch catalog number you have on the job. All five share the same 600V AC / 600A series rating and each ships 1 EA.
3) Will the ABB TGL ground kit work on a 480V or 600V three-phase disconnect?
Yes on both counts. The kit carries a 600V AC rating, so it covers 480V and 600V systems as well as lower voltages, and the 600A current rating handles feeder-size switches. Anything above 600V AC is outside its rating.
4) Does an ABB safety switch come with a ground bar, or do I have to buy the TGL kit separately?
The TGL kit is a separate add-on item, supplied 1 EA per order. Plan on ordering one per enclosure that needs an equipment ground termination, alongside the switch itself. Electricians outfitting Spec-Setter enclosures typically line these up at quoting time so the grounding hardware arrives with the switch instead of chasing it during rough-in.
5) Can I use the TGL ground kit on a double throw switch for an emergency generator?
It is built to complement ABB's double throw safety switches used in emergency generator applications, along with the general duty, heavy-duty, dust-tight and stainless steel lines. Match the specific TGL model to your switch catalog number.
6) Is the ABB TGL ground kit suitable for a washdown or dusty plant environment?
ABB lists it as compatible with their dust-tight and stainless steel safety switch lines used in cement foundries, steel mills and processing plants, so it is intended for those enclosures. The environmental protection comes from the switch enclosure itself, not from the ground kit, so the enclosure rating you select is what determines suitability for the space.
7) Is the ABB TGL ground kit Buy American Act compliant for a government project?
ABB directs Buy American Act and ARRA compliance questions on the TGL kit to the manufacturer rather than publishing a determination, so a federal or state job requiring documented domestic-content status will need that confirmation in writing before submittal.
