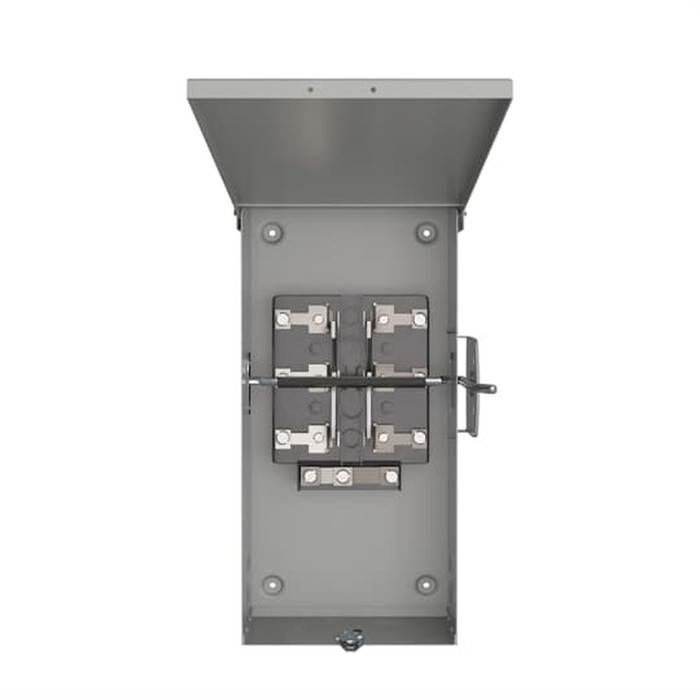

ABB TGN Spec-Setter General Duty Non-Fusible Safety Switch, NEMA 3R

ABB TGN Spec-Setter General Duty Non-Fusible Safety Switch, NEMA 3R

(No reviews yet) Write a Review

Model: TGN3321R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$223.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB TGN Spec-Setter General Duty Non-Fusible Safety Switch, NEMA 3R

The ABB TGN Spec-Setter safety switch is a General Duty (GD) disconnect built for residential and light commercial electrical systems. This 3-pole, non-fusible switch is housed in a rugged NEMA 3R (Outdoor) enclosure and is available in amperage options ranging from 30A to 200A, all rated for 240V general duty applications. Whether you need a compact disconnect for a small HVAC unit or a higher-capacity switch for a larger motor load, the Spec-Setter line delivers a dependable, easy-to-install solution wherever an outdoor or exposed-equipment disconnect is required.

Key Features

  • Amperage Options: Available in 30A, 60A, 100A, and 200A ratings to match a wide range of general duty disconnect requirements.
  • Pole Configuration: 3-pole design suited for three-phase electrical systems, consistent across every amperage option.
  • Voltage Rating: Rated for 240V general duty applications on every switch in the Spec-Setter family.
  • Switch Type: Non-fusible construction for straightforward on/off disconnect operation without fuse replacement.
  • Enclosure Rating: NEMA 3R (Outdoor) enclosure protects internal components from rain and outdoor elements, regardless of amperage selection.
  • Application Class: General Duty (GD) switch designed for residential and light commercial use.
  • Rugged Build: Part of ABB's Spec-Setter line, engineered for reliable, easy-to-install performance across the full amperage range.

Certifications & Compliance

  • NEMA 3R Rated Enclosure for Outdoor Use

Technical Specifications

  • Number Of Poles: 3
  • Amperage Options: 30A, 60A, 100A, 200A
  • Voltage Rating: 240V
  • Switch Type: Non-Fusible
  • Enclosure: NEMA 3R

Typical Applications

  • General Duty Electrical Disconnects
  • Residential and Light Commercial Installations
  • Outdoor Equipment Disconnect Switching
  • HVAC and Motor Load Disconnects
  • Non-Fusible Power Isolation Points

Why ABB?

ABB safety switches are built to get the job done right, with the Spec-Setter line offering a rugged, reliable, and easy-to-install solution for general duty electrical disconnects across a full range of amperage options. With a NEMA 3R enclosure rated for outdoor exposure and a non-fusible 3-pole design rated 240V, available from 30A up to 200A, this switch family delivers the dependable performance electrical professionals count on for residential and light commercial projects.

Manufacturer Resources

Product Specs

Product Type:
Safety Switch
Amperage Rating:
30A - 200A
Voltage Rating:
240V
Configuration:
3-Pole
Standards:
NEMA 3R
Department:
Electrical
Product Group:
Wiring Devices
Listing:
NEMA 3R
Product Subgroup:
Safety Switches

ABB TGN3321R – Frequently Asked Questions

1) Can the ABB Spec-Setter TGN safety switch be mounted outdoors next to a condenser?
Yes. The Spec-Setter TGN series comes in a NEMA 3R enclosure, which is the outdoor rating for protection against rain and falling water, so it is suited to an AC condenser or heat pump disconnect on an exterior wall or pad. It is a general duty switch intended for residential and light commercial work, not an industrial heavy duty application.
2) What amperage sizes does the ABB TGN non-fusible safety switch come in?
Four sizes: 30A (TGN3321R), 60A (TGN3322R), 100A (TGN3323R) and 200A (TGN3324R). All four are 3-pole, non-fusible, 240V general duty switches in a NEMA 3R enclosure. Size the switch to the equipment's nameplate load and the upstream overcurrent protection, since a non-fusible switch provides no overcurrent protection of its own.
3) Does a non-fusible disconnect like the ABB TGN protect the circuit, or do I still need fuses or a breaker?
It does not protect anything. The TGN is a non-fusible switch, so it only opens and closes the circuit for service isolation and lockout. Overcurrent protection has to come from the upstream breaker or a fused disconnect. If the equipment nameplate calls for maximum fuse size rather than maximum breaker size, you want a fused switch instead.
4) Can I use the ABB TGN 3-pole switch on a 208V or 240V three-phase motor?
Yes, within its ratings. It is a 3-pole switch rated 240V, which covers 240V and 208V three-phase systems. It is not rated for 480V; a 480V three-phase disconnect needs a 600V-class switch such as the Square D VisiPacT heavy duty line. On single-phase 240V loads you simply land the two hot legs on two of the three poles.
5) I need a non-fused disconnect but the switch is going inside a mechanical room, not outdoors. Is there an alternative to the ABB TGN?
The ABB Spec-Setter TGN series is a general duty non-fusible switch in a NEMA 3R outdoor enclosure, which is built to shed rain on exterior walls. For an indoor mechanical room where weather exposure is not a factor, the Square D VisiPacT heavy duty unfused safety switch VHU361N is a NEMA 1 enclosure unfused switch. Both give you a straight on/off isolation point with no fuses to stock or replace; the difference is the enclosure environment and the heavy duty versus general duty construction class.
6) My spec calls for overcurrent protection at the disconnect. Does the ABB TGN cover that, and what do I use if not?
No. The ABB Spec-Setter TGN is non-fusible, meaning it isolates the circuit but carries no fuses and provides no overcurrent protection of its own, so upstream protection has to come from elsewhere. If the drawing requires fuses in the disconnect itself, the Square D VisiPacT VH324NDSGL is a fused safety switch, and its NEMA 4X stainless steel enclosure suits washdown or corrosive locations rather than the standard outdoor duty the TGN 3R enclosure covers.
7) Will the ABB Spec-Setter TGN work as a generator transfer switch?
No. The Spec-Setter TGN is a single-throw 3-pole disconnect that simply opens and closes one set of line and load connections, so it cannot select between two sources. For a manual source-selection application you want a double-throw device such as the Eaton K-series double-throw non-fused safety switch DT-223UGK, which is also non-fused but is housed in a painted steel NEMA 1 enclosure and so is intended for indoor mounting rather than the outdoor exposure the TGN 3R enclosure handles.
8) What is the difference between a general duty switch like the ABB Spec-Setter and a heavy duty safety switch?
General duty, which is what the Spec-Setter TGN is, is built for residential and light commercial loads at 240V. Heavy duty switches are the industrial class, with higher voltage ratings and more enclosure choices. If you are feeding a plant motor, a 480V service, or a washdown or coastal location, look at heavy duty instead, for example the Square D VisiPacT unfused NEMA 1 switch for indoor industrial use or the NEMA 4X stainless VisiPacT fused switch for corrosive and washdown areas.
9) I need a disconnect that transfers between utility and generator. Will the ABB TGN do that?
No. The TGN is a single-throw on/off disconnect, not a transfer switch. For a manual changeover between two sources you want a double-throw switch such as the Eaton K-series heavy duty double-throw non-fused safety switch. Note that the Eaton unit is a NEMA 1 enclosure, so it is an indoor location only unless you house it.
10) Is a NEMA 3R switch okay for a coastal or washdown location?
NEMA 3R handles rain and outdoor exposure, but it is not a corrosion or washdown rating. For salt air, chemical exposure, or hose-down cleaning, go to a stainless 4X enclosure such as the Square D VisiPacT NEMA 4X stainless steel fused switch.
11) For a rooftop condenser at a coastal property, is the ABB TGN 200A the right disconnect or should I step up?
The ABB Spec-Setter TGN in NEMA 3R is a general duty switch rated 240V and sized to 200A at the top of the range, and it is intended for residential and light commercial outdoor equipment disconnects including HVAC and motor loads. On a salt-air coastal roof where the enclosure itself is the wear item, a stainless steel NEMA 4X switch such as the Square D VisiPacT VH324NDSGL is the heavier corrosion answer, though it is a fused heavy duty switch rather than a non-fusible general duty one, so the circuit design has to account for the fuses.
12) What is the closest equivalent to the ABB TGN3321R 30A switch from another brand?
The ABB TGN3321R is the 30 ampere version of the Spec-Setter 3-pole non-fusible NEMA 3R line. The nearest unfused equivalent among other brands is the Square D VisiPacT VHU361N unfused safety switch, with two differences to check against your spec: it is a heavy duty rather than general duty switch, and it comes in a NEMA 1 enclosure, so it is an indoor substitution only. If the disconnect is mounted outdoors, stay with the 3R-rated TGN.
13) Can I standardize on the ABB TGN across a portfolio of apartment HVAC units?
It is a reasonable fleet standard for that use. All four sizes, 30A through 200A, share the same general duty 240V 3-pole non-fusible design and NEMA 3R outdoor enclosure, so the mounting approach and the lockout procedure are consistent across the properties and only the ampere rating changes by unit size.
