ABB THQLQ Q-Line Quad Circuit Breaker, Thermal Magnetic

ABB THQLQ Q-Line Quad Circuit Breaker, Thermal Magnetic

(No reviews yet) Write a Review

Model: THQLQ202020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$63.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

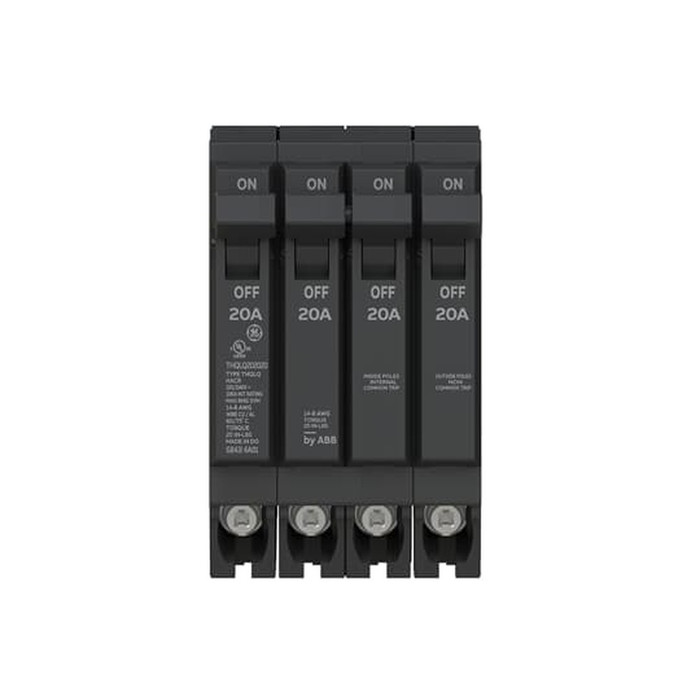

ABB THQLQ Q-Line Quad Circuit Breaker, Thermal Magnetic

The ABB THQLQ Q-Line Quad Circuit Breaker delivers the same panel space with twice the circuits, combining a 2-1P+1-2P pole configuration in a compact quad footprint. This Q-Line platform breaker is offered with a thermal magnetic trip (Trip Type LI, Non-Interchangeable trip range) and is available in 15A and 20A amperage ratings for 120V and 240V single-phase service, with a 10kA@120 Vac / 10kA@120/240 Vac interrupt rating. It is code compliant and compatible with new and existing single-phase ABB and GE by ABB PowerMark load centers, with or without wing stabs.

Key Features

  • Space-Saving Quad Design: 2-1P+1-2P pole configuration fits the same panel space while doubling available circuits.
  • Amperage Options: Available in 15A and 20A ratings to match circuit load requirements.
  • Voltage Options: Available for 120V and 240V single-phase residential and light commercial service.
  • Broad Compatibility: Works with new and existing single-phase ABB and GE by ABB PowerMark load centers, with or without wing stabs.
  • Thermal Magnetic Trip: Application is Thermal Magnetic with Trip Type LI and a Non-Interchangeable trip range for dependable overcurrent protection.
  • Interrupt Rating: 10kA@120 Vac and 10kA@120/240 Vac to safely clear fault current.
  • Load Rating: HACR SWD rated, suitable for air conditioning circuits and switching duty applications.
  • Wire Connection: Accepts (2) #14-8 CU / #12-8 AL conductors for flexible field wiring.
  • Q-Line Platform: Part of the ABB Q-Line (Plug-In) breaker family, Frame Q-Line, Sub Brand Q Line.

Certifications & Compliance

  • Listed to Standard E11592
  • HACR SWD Load Rating

Technical Specifications

  • Load Rating: HACR SWD
  • Interrupt Rating: 10kA@120 Vac, 10kA@120/240 Vac
  • Sub Brand: Q Line
  • Frame: Q-Line
  • Number Of Poles: 2-1p+1-2p
  • Amperage Options: 15A, 20A
  • Voltage Options: 120V, 240V
  • Trip Range: Non-Interchangeable
  • Application: Thermal Magnetic
  • Connection: (2) # 14-8 CU/ #12-8 AL
  • Trip Type: LI
  • Standard: E11592

Typical Applications

  • Single-Phase Residential Load Centers
  • ABB and GE by ABB PowerMark Panelboards
  • Panel Space Optimization for Additional Circuits
  • Panel Upgrades and Circuit Expansion Projects
  • Air Conditioning and Switching Duty (HACR SWD) Circuits

Why ABB?

ABB Q-Line breakers combine a thermal magnetic trip mechanism, a 10kA interrupt rating, and HACR SWD load rating to deliver dependable, code-compliant circuit protection across the available 15A and 20A, 120V and 240V options. Broad compatibility with ABB and GE by ABB PowerMark load centers makes this Quad breaker a practical choice for adding circuits without adding panel space, backed by listing to Standard E11592 for professional electrical installations.
