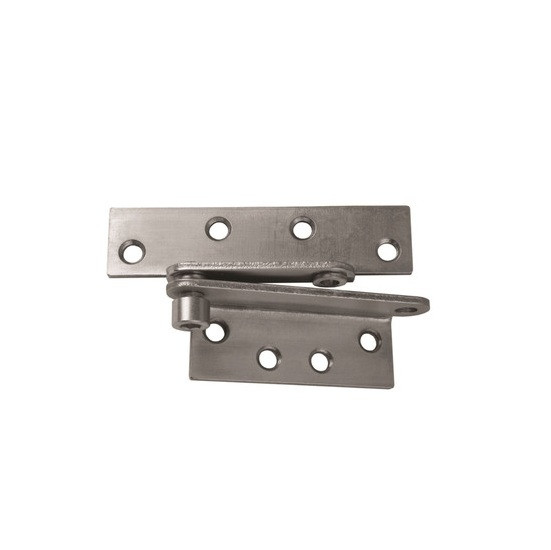

ABH 0923 - Full Surface Reinforcing Top Pivot, Non-Handed, 603/US2G Zinc Plated

ABH 0923 Full Surface Reinforcing Top Pivot - 300 lb Load Capacity, Non-Handed, Zinc Plated

(No reviews yet) Write a Review

Model: 0923US2G
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$67.48
$46.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH Full Surface Reinforcing Top Pivot - 300 lb Load Capacity, Non-Handed, Zinc Plated

Professional Door Reinforcement Solution

The ABH Full Surface Reinforcing Top Pivot is engineered to help take load off failing top hinges and eliminate door sag in commercial applications. This non-handed pivot features a maximum door load capacity of 300 pounds and surface mounts to the face of the frame header and door. Constructed from cold-rolled steel with zinc plated US2G finish, it matches the pivot point of a standard 4-1/2" butt hinge and is designed for 1/8" inset doors with 3/4" offset.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Maximum door load of 300 pounds provides reliable support for heavy commercial doors and helps prevent hinge failure.
  • Reinforcing Design: Specifically engineered to take load off failing top hinges and eliminate door sag for extended door system life.
  • Universal Installation: Non-handed design allows use on left or right-hand doors for versatile application flexibility.
  • Standard Compatibility: Matches pivot point of a standard 4-1/2" butt hinge for seamless integration with existing door hardware.
  • Durable Construction: Cold-rolled steel construction with zinc plated US2G finish provides corrosion resistance and long-term durability.
  • Surface Mount Design: Full surface mounting to frame header and door face simplifies installation without complex door preparation.
  • Precise Fit: Designed for 1/8" inset doors with 3/4" offset for accurate alignment and proper operation.
  • Fire Rating: 3-hour fire rated construction meets commercial building code requirements for fire-rated openings.

Technical Specifications

  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Fire Rated Time: 3 hours
  • PDF: 0547 & 0923 Pivot Set - 3/4" Offset: https://zensupply.com/content/pdf/abh/0000022_0547_cut_sheet_75_offset_pivot_set_2021.pdf
  • PDF: 0923 Template - Reinforcing Pivot: https://zensupply.com/content/pdf/abh/0000054_0923_05_102320.pdf
  • PDF: Pivot Set Configurations: https://zensupply.com/content/pdf/abh/0002621_pivot_set_configurations.pdf
  • Pivot Type: Reinforcing
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Type: Reinforcing Pivots
  • Subcategory: Pivot Sets

Professional Applications

  • Commercial Office Buildings with Heavy Doors
  • Educational Facilities with High-Traffic Openings
  • Healthcare Institutions Requiring Door Reinforcement
  • Retail Establishments with Frequent Door Use
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Fire-Rated Opening Reinforcement

Why Choose ABH Quality?

ABH reinforcing pivots deliver professional-grade reliability with cold-rolled steel construction and zinc plated finish rated for 300-pound door loads. The 3-hour fire rating and BAA qualification ensure compliance with commercial building requirements. Engineered for demanding commercial applications where dependable door support and hinge reinforcement are essential for long-term performance.

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Reinforcing Pivots
Subcategory:
Pivot Sets
Commercial/Residential:
Commercial
BAA Qualified:
Yes
Fire Rated Time:
3 hours
Electronic:
Yes
Pivot Type:
Reinforcing
Product Attribute:
Pivots
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

ABH 0923US2G – Frequently Asked Questions

1) My commercial door is sagging and the top hinge is pulling out of the frame. Will an ABH 0923 reinforcing pivot fix that without replacing the door?
That is exactly what the 0923 is for. It's a full surface reinforcing top pivot that carries the door's weight at the top corner instead of the hinge, so a failing top hinge stops taking the load and the sag stops getting worse. It surface mounts to the face of the frame header and to the face of the door, so you don't have to mortise the door or pull it off the frame to install it. Rated to a 300 pound maximum door load.
2) Does the ABH 0923 top pivot need to be ordered left hand or right hand?
No handing to specify. The 0923 is non-handed, so the same part works on a left hand or right hand door. One less thing to get wrong on a purchase order, and it means a facility can stock a single part for openings that swing both ways.
3) What door and frame configuration does the ABH 0923 reinforcing pivot fit?
It's built for a 1/8 inch inset door with a 3/4 inch offset, and its pivot point matches that of a standard 4-1/2 inch butt hinge. That last part matters: the door keeps swinging on the same arc it always did, so the existing hinges, stops and clearances still line up. If your opening is a full mortise or center hung arrangement, or the door runs a different offset, this is not the pivot for it.
4) Can I use a reinforcing top pivot on a fire rated opening?
The ABH 0923 carries a 3 hour fire rating, so it can go on a 3 hour rated opening. For institutional and healthcare work where the opening's rating has to be documented, that is the number to put on the submittal.
5) How heavy a door can a single ABH 0923 reinforcing top pivot carry?
Maximum door load is 300 pounds. That covers most hollow metal and solid core commercial leaves, but a heavy oversized wood or lead lined leaf can run past it, so weigh the door or get the leaf weight from the door schedule before you commit. Above 300 pounds you want a heavier pivot set, not this one.
6) Is the ABH 0923 pivot Buy American compliant for a government or federally funded job?
Yes, the 0923 is BAA qualified, which is what a government, municipal or federally funded institutional project normally needs to see on the submittal.
7) Should I use a reinforcing top pivot or a full pivot set on a sagging commercial door?
They solve different problems. A reinforcing pivot like the 0923 goes onto a door that already hangs on butt hinges and is starting to sag, adding a load carrying point at the top so you don't have to rehang the opening. A full pivot set replaces the hinge system outright with a top and bottom pivot, which is the route for a new opening or a lead lined or oversized leaf that was never meant to hang on butts. ABH publishes a pivot set configurations document if you're deciding between the two arrangements.
8) Can I standardize on one ABH 0923 pivot across a building with doors swinging both directions?
Yes, and that's the practical argument for it. Because the 0923 is non-handed and offered in a single zinc plated finish, one part number covers every 1/8 inch inset, 3/4 inch offset opening in the building regardless of swing. For a property manager or MRO stockroom that means one bin, not four.
9) What is the ABH 0923 pivot made of, and will it hold up in a high traffic or damp opening?
Cold rolled steel with a zinc plated US2G finish, which is the 603 finish code. Zinc plating gives it corrosion resistance for interior commercial service, schools, hospitals, warehouse and back of house openings. It's a utility finish, not decorative, so it's meant for openings where function matters more than appearance.
10) Is the ABH 0923 pivot rated for commercial use or is it a residential part?
Commercial. The 0923 is specified for commercial openings, and the 300 pound load rating plus the 3 hour fire rating put it in office, education, healthcare, retail, industrial and government work rather than residential doors.
