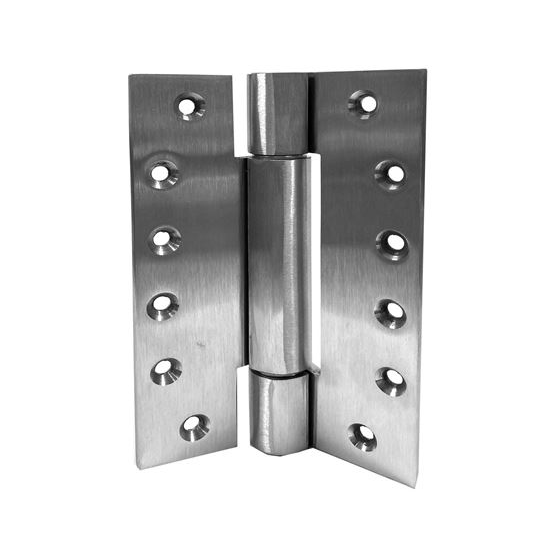

ABH A561 Heavy Duty Self-Closing Gate Hinge with Adjustable Speed Control

ABH A561 Heavy Duty Self-Closing Gate Hinge with Adjustable Speed Control

(No reviews yet) Write a Review

Model: A561-US32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,142.00
$761.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH A561 Heavy Duty Self-Closing Gate Hinge with Adjustable Speed Control

Professional Self-Closing Gate Hardware Solution

The ABH A561 Series self-closing gate hinge delivers heavy-duty performance with stainless steel construction rated for gates up to 600 pounds. This versatile hinge can be mounted as full mortise or surface mount configuration and features adjustable closing speed to meet 5 pound ADA requirements. Tested to 1,000,000 cycles for long-term reliability in demanding commercial gate applications.

Professional Features & Benefits

  • Heavy-Duty Weight Capacity: Supports gates up to 600 pounds maximum weight for robust commercial applications.
  • Million-Cycle Durability: Tested to 1,000,000 life cycles for exceptional longevity in high-traffic installations.
  • Dual Mounting Options: Can be installed as full mortise or surface mount configuration using manufacturer-provided templates.
  • ADA Compliant Operation: Adjustable closing speed meets 5 pound ADA requirements for accessible gate operation.
  • Stainless Steel Construction: Heavy-duty stainless steel materials provide superior corrosion resistance and durability for outdoor gate applications.
  • Adjustable Closing Speed: Field-adjustable closing mechanism allows customization for specific gate weight and application requirements.
  • Professional Sizing: 6" x 5" dimensions provide substantial bearing surface for heavy gate installations.
  • Flexible Configuration Options: Available with A561LS less spring option and self-open functionality for specialized applications.

Technical Specifications

  • BAA Qualified: No
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Keyed: N/A
  • Keyed Function: N/A
  • Product Category: Gate Hardware
  • Product Function: Spring Hinges
  • Product Group: Door Trim and Accessories
  • Product Model: A561
  • Product Size: 6" x 5"
  • Product Subgroup: Gate Hinges and Closers
  • Product Type: Spring Hinges
  • Series: A561 Series
  • Subcategory: Hinges

Professional Applications

  • Commercial Property Perimeter Security
  • Industrial Facility Access Points
  • Multi-Unit Residential Complexes
  • Parking Facility Entry Systems
  • Warehouse and Distribution Centers
  • ADA-Compliant Gate Installations
  • Heavy-Duty Commercial Gate Systems

Why Choose ABH Quality?

ABH A561 Series gate hinges deliver professional-grade reliability with heavy-duty stainless steel construction rated for 1,000,000 life cycles and 600 pound weight capacity. Multiple finish options and dual mounting configurations provide installation flexibility for demanding commercial gate applications. Engineered for outdoor environments where dependable self-closing performance and ADA compliance are essential.

Manufacturer Resources

ABH Full Line Catalog

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Gate Hinges and Closers
Product Type:
Spring Hinges
Subcategory:
Hinges
Commercial/Residential:
Commercial
Keyed:
N/A
Keyed Function:
N/A
Series:
A561 Series
BAA Qualified:
No
Product Model:
A561
Product Function:
Spring Hinges
Product Size:
6" x 5"
Product Category:
Gate Hardware
Department:
Door Hardware

ABH A561-US32D – Frequently Asked Questions

1) Will the ABH A561 gate hinge hold a heavy commercial steel gate?
The A561 self-closing gate hinge is rated for gates up to 600 pounds. That covers most welded steel and heavy aluminum perimeter gates in commercial use. It is a commercial-duty product, not a residential-grade spring hinge, and it is built in stainless steel for outdoor exposure. Cycle testing is to 1,000,000 cycles, which is the number to look at for a parking entry or a warehouse gate that swings hundreds of times a day.
2) Can the ABH A561 be surface mounted, or does the gate have to be mortised?
Both. The A561 installs either full mortise or surface mount, using ABH's templates for the configuration you pick. That matters on retrofit work: if the existing gate stile is tube steel you cannot cut into cleanly, take the surface mount route and skip the mortise prep entirely. Decide the mounting before you order so you pull the right template.
3) How big is the ABH A561 hinge leaf, and will it fit my gate stile?
The A561 is a 6 x 5 inch hinge. Lay that against your gate stile and frame post before ordering, since a 5 inch leaf dimension needs a bearing face wide enough to take it. On narrow tube-frame gates the surface mount configuration is usually the one that works, because it does not require the stile depth a full mortise does.
4) Does the ABH A561 gate hinge meet the 5 pound ADA opening force requirement?
The closing speed on the A561 is field adjustable and adjusts to meet the 5 pound ADA requirement. That is the reason to spec it on an accessible route gate rather than a fixed-tension spring hinge, which gives you no way to dial the force down after the gate is hung. Adjust it on site once the gate is loaded and swinging.
5) What is the difference between the ABH A561 standard spring and the A561LS less spring version?
Standard Spring is the self-closing hinge with the adjustable spring mechanism inside. Less Spring (A561LS) is the same hinge body without the spring, so it pivots freely and does nothing to close the gate. On a tall or heavy gate you typically run one spring hinge and one or more less-spring hinges on the same leaf: the spring unit does the closing, the less-spring units carry the load and keep the gate in line. Ordering all spring hinges on a heavy gate makes it slam. Both options come in all six finishes.
6) What finishes does the ABH A561 gate hinge come in?
Six: Satin Stainless Steel, Bright Stainless Steel, Satin Brass, Bright Brass, Bright Bronze, and Oil Rubbed Bronze. For an exterior perimeter or parking gate, the stainless finishes are the ones that hold up in weather without maintenance. If you are matching brass or bronze gate hardware already on site, the four decorative finishes let you keep the openings consistent. Every finish is available in both standard spring and less spring.
7) Should I use a self-closing gate hinge or a separate gate closer?
A spring hinge like the A561 puts the closing mechanism inside the hinge itself, so there is no arm, no bracket, and nothing projecting off the gate to catch or get vandalized. That is why it is the usual choice on pool enclosures, parking entries, and perimeter gates where an exposed closer body would be a target. The tradeoff is adjustment range: you get closing speed adjustment, and on the A561 that adjustment is what gets you to the 5 pound ADA force. Where you need latch-speed and backcheck control separate from closing speed, a dedicated closer is the better tool. For self-closing plus load carrying in one piece of hardware, the hinge wins.
8) Will the ABH A561 rust on an outdoor gate?
Stainless steel construction is what the A561 is built from, which is why it is specified for exterior gate work: coastal sites, parking structures, and unprotected perimeter fence lines. For an exposed installation, ordering it in one of the stainless finishes rather than a plated brass or bronze keeps the surface consistent with the base material.
9) Is the ABH A561 gate hinge Buy American Act qualified for a federal job?
No. The A561 is not BAA qualified. On a federal or federally funded project with a Buy American requirement in the specification, that rules it out and you will need a domestically qualified gate hinge instead. Worth settling before submittals rather than at inspection.
10) How many ABH A561 hinges do I need per gate?
It depends on gate weight and height against the 600 pound rating, and on how much closing force the gate needs. The pattern to follow is one or two standard spring A561 units to generate the close, with A561LS less spring units filling the remaining hinge positions to carry weight and keep the gate from sagging. Count your hinge positions first, then split the order between the two spring options rather than buying all of one.
11) Can the ABH A561 be set up to hold a gate open instead of closing it?
A self-open configuration is offered on the A561 alongside the standard self-closing setup and the less spring version. Specify which behavior you want at the time of order, since the spring configuration is what determines it. For an entry gate that should return to closed on its own, the standard spring option is the one you want.
