ABH AB7200 Solid Stainless Ste...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$179.00
$175.90
ABH ABH AB7200 Flat End Pull ABH-AB7200

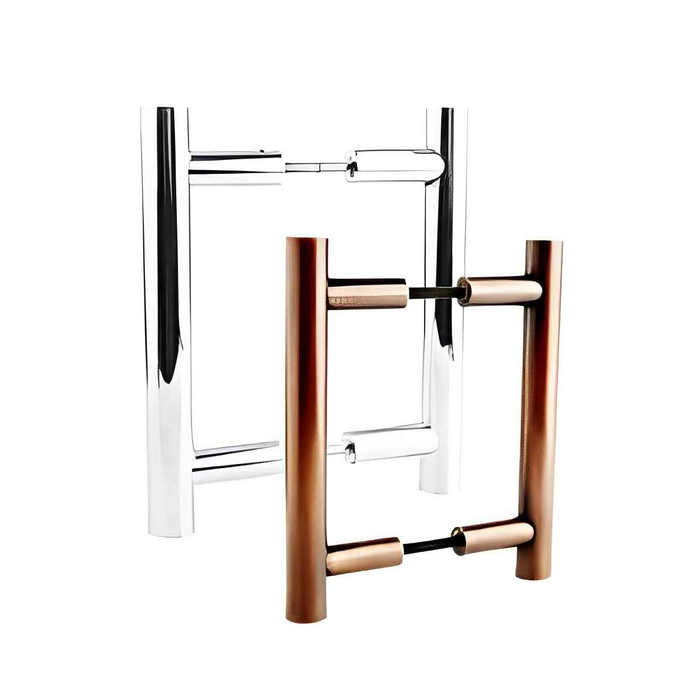

ABH AB7200 Solid Stainless Steel Flat End Pull Handle 7/8" Diameter with Through-Bolt Mounting

(No reviews yet) Write a Review

Model: AB7200 S US32D
$179.00
$175.90
Selected Finish is
Selected Single or Set is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$179.00
$175.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH Solid Stainless Steel Flat End Pull Handle 7/8" Diameter with Through-Bolt Mounting

Professional Door Pull Solution for Commercial Applications

The ABH AB7200 Solid Stainless Steel Flat End Pull Handle delivers professional-grade performance with 7/8" diameter construction and 7-3/4" overall length. Designed for commercial, residential, and common entry doors, this handle features through-bolt mounting for enhanced security and a cleaner appearance. The 5-1/2" center-to-center spacing provides optimal grip positioning, while high-quality stainless steel construction ensures long-lasting durability in demanding applications.

Professional Features & Benefits

  • Optimal Dimensions: 7/8" diameter with 7-3/4" overall length and 5-1/2" center-to-center spacing for comfortable grip and professional appearance.
  • Through-Bolt Mounting: Secure mounting system creates a cleaner look while providing enhanced security compared to standard mounting methods.
  • High-Quality Construction: Solid stainless steel construction provides exceptional durability and corrosion resistance for commercial applications.
  • Versatile Application: Designed for use on commercial, residential, and other common entry doors for maximum flexibility.
  • Multiple Configuration Options: Available in single side (AB7200S) and pair (AB7200P) configurations to meet specific installation requirements.
  • Extensive Finish Options: Available in US3, US32, US32D, US4, US9, US10, US10B, Black Powder, and White Powder finishes to match any application.
  • Sleek Design Alternative: Provides a more stylish and modern alternative to standard door handles for enhanced aesthetic appeal.

Technical Specifications

  • (CTC) Center-to-Center: 5-1/2"
  • BAA Qualified: No
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • PDF:AB7200: https://zensupply.com/content/pdf/abh/0002444_ab7200.pdf
  • PDF:AB7200P Pull Handles: https://zensupply.com/content/pdf/abh/0002443_a7200p_pull_handles.pdf
  • Product Category: Door Trim and Accessories
  • Product Diameter: 7/8"
  • Product Group: Door Trim and Accessories
  • Product Length: 7-3/4"
  • Product Model: AB7200
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Series: AB7200 Series
  • Subcategory: Door Pulls

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose ABH Quality?

ABH door pull handles deliver professional-grade reliability with solid stainless steel construction designed for demanding commercial applications. The through-bolt mounting system and multiple finish options ensure both security and aesthetic versatility. Engineered for commercial use where dependable performance and professional appearance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Subcategory:
Door Pulls
Commercial/Residential:
Commercial
Series:
AB7200 Series
BAA Qualified:
No
Product Model:
AB7200
(CTC) Center-to-Center:
5-1/2"
Product Length:
7-3/4"
Product Diameter:
7/8"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

ABH AB7200 S US32D – Frequently Asked Questions

1) What is the hole spacing on the ABH AB7200 pull, and will it cover the holes from the pull I'm taking off?
The AB7200 flat end pull drills on 5-1/2 inch center-to-center spacing, with 7-3/4 inches overall length on a 7/8 inch diameter bar. If the pull coming off the door is on that same 5-1/2 inch spacing, the existing through-bolt holes line up and it's a straight swap. Any other spacing means new holes, and the flat ends of the AB7200 sit flush to the door, so they won't hide old holes the way a wide rose or plate would.
2) Do I order one AB7200 pull or a pair for a door with a pull on both sides?
Both are orderable. The AB7200 comes as a Single or as a Set, and the Set is the two-sided configuration for a door that needs a pull on each face. Order the Single when the opposite face gets a push plate or a device trim instead. There is also a required Back to Back selection at order time, Yes or No, which tells ABH whether the two pulls bolt through to each other or each side gets its own fasteners.
3) What size grip does the ABH AB7200 give you, and is 7-3/4 inches long enough for a glass entry door?
You get a 7/8 inch diameter bar over 7-3/4 inches of overall length, with 5-1/2 inches of clear span between mounting points. That is a one-hand grip, sized for a standard swing door where the pull is a grab point, not a full-height handle. On a tall glass storefront leaf where the look calls for a long vertical pull, this is the wrong size and you want something in the 12 to 24 inch range instead, such as the Deltana SSP1210 12 inch contemporary pull or the 24 inch Deltana SSPORBB24 back-to-back round offset set.
4) Is the ABH AB7200 pull Buy American Act qualified for a federal job?
No. The AB7200 is not BAA qualified, so it will not satisfy a Buy American Act line item on a federal or federally funded project. If the spec on your drawing carries a BAA requirement, you need a pull carrying that qualification instead. For non-federal commercial, institutional, and multi-family work the AB7200 is a commercial-rated pull with no such restriction.
5) The drawing calls for an ADA compliant offset pull - is the ABH AB7200 the right part?
The AB7200 is a straight flat end pull with a 5-1/2 inch center-to-center grip; it is not an offset pull. For an offset the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware, described as ADA compliant in the EZ series, and the Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting. Both change the hand position relative to the door face in a way a straight bar does not.
6) What do I order for a back-to-back pull on a full height glass or storefront door instead of the AB7200?
The AB7200 is a 7-3/4 inch long pull, ordered single side or as a set, with a back-to-back option. For a long back-to-back grip the Deltana SSPOBB24 is a 24 inch back-to-back modern offset door pull and the Deltana SSPORBB24 is a 24 inch back-to-back round offset door pull; the Sure-Loc PL-2KN is a knurled long door pull, double-sided. Those give a full length grab on both faces where the AB7200 gives a short 7-3/4 inch grip per side.
7) Should I pick the back-to-back option on the AB7200 or mount each pull separately?
Back to Back means the two pulls share fasteners straight through the door, one bolt tying both handles together. That is the stronger arrangement and the usual choice on a two-sided entry, because pulling on one side loads both handles rather than the door face. Choose No when only one face gets an AB7200 and the other side carries a push plate, or when the opposite face already has hardware occupying the same holes. The choice is required on every order, so decide it before the order goes in.
8) Is the ABH AB7200 pull heavy enough for a high-traffic commercial entrance?
It's built for commercial service, solid stainless steel with through-bolt mounting rather than wood screws or a concealed screw into the door face. Through-bolting is what carries repeated hard pulls on an entry door, since the load goes through the door instead of into a few threads at the surface. The 7/8 inch solid bar is on the lighter side of commercial pull stock; if the opening is a main entrance taking constant abuse, a 1 inch bar such as the Ives 8103HD, also through-bolt mounted, gives you more section.
9) Can I get the ABH AB7200 pull in a finish that matches the brass and bronze hardware already on my building?
Nine finishes are offered on the AB7200: Bright Brass, Satin Brass, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Stainless Steel, Satin Stainless Steel, Painted Black, and Painted White. Every one of those is available either as a Single or as a Set, so a property standardizing on one finish across an entire building can order both configurations to match. Satin Stainless is the common pairing with commercial door closers and exit device trim; Oil Rubbed Bronze and the painted finishes are the ones people reach for on storefront and residential-look entries.
10) Straight pull or offset pull, which one do I want on a door with an exit device?
The AB7200 is a straight flat end pull, mounting flat against the door face at both ends. It suits a door where the pull is the only thing your hand meets. When the pull has to clear a rim exit device, a lock housing, or where the code officer wants an easier grab for a closed fist, an offset pull moves the bar out from the face: the Ives 8145EZHD is a 45 degree offset described as ADA compliant, and the Ives 8169 is a C style offset in 1 inch diameter. Offsets also read better as a door edge pull on narrow stile aluminum.
11) What is the difference between the ABH AB7200 and a Sure-Loc or Deltana thru-bolt pull?
All three mount through the door, but they cover different sizes and looks. The AB7200 is a short 7-3/4 inch commercial pull on a 7/8 inch round bar with 5-1/2 inch centers. The Sure-Loc PL-1RD round long pull is a single-sided long pull offered with concealed or thru-bolt mounting, and the Sure-Loc PL-1KN is the same long format with a knurled grip. Deltana's OHP620 is an off-set handle pull sold as a back-to-back set and rated for 1-1/8 to 1-3/8 inch doors, thinner stock than a typical 1-3/4 inch commercial leaf, so check the door before substituting it in.
12) Can I use the ABH AB7200 as a night latch pull over a cylinder?
No. The AB7200 is a plain flat end grab pull with no cylinder cutout, so there is nowhere for a rim cylinder to pass through it. A night latch application needs a pull built with the cylinder hole, like the Cal-Royal PUL-175 night latch cylinder pull, 3-1/2 inches high in stainless steel. Use the AB7200 where the pull and the locking hardware are separate items on the door.
13) Which single-sided pull should I use if I want a longer grip than the AB7200 but still thru-bolted?
The Sure-Loc PL-1RD is a round long door pull, single-sided, offered with concealed or thru-bolt mounting, and the Sure-Loc PL-1KN is the knurled long pull, single-sided, with thru-bolt mounting. The Deltana SSP1210 is a 12 inch contemporary pull, single side. All three keep the one-face mounting the AB7200 offers in its single configuration while running longer than its 7-3/4 inch length.
14) Will the ABH AB7200 pull hold up outdoors or in a pool and coastal environment?
Solid stainless steel is the material, which is why it goes on exterior entries and wash-down areas where a plated brass pull would pit. The finish choice matters more than the base metal outdoors: the two stainless finishes, Bright and Satin Stainless Steel, wear the best in weather, while plated brass and bronze finishes are the ones that show change under salt air and UV. Painted Black and Painted White are also offered if the entry is spec'd to a paint color.
15) What should I specify for a restroom door instead of a standard flat end pull?
The Trimco 1035 Ultimate Restroom Pull is the purpose-built option for that opening, a heavy duty pull in the 1035 series. The ABH AB7200 is a general commercial flat end pull, 7/8 inch diameter, mounted with through-bolts. For restroom doors where the pull is expected to take constant public traffic and is often part of a touch-conscious specification, the 1035 is the part written for that use.
