Accentra 5381LN Monroe Grade 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$539.00
$302.27

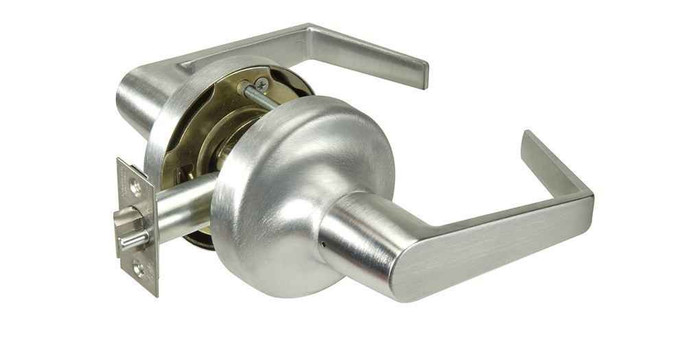

Accentra 5381LN Monroe Grade 2 Fail Secure Electrified Cylindrical Lever Lock

Accentra 5381LN Monroe Grade 2 Fail Secure Electrified Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: MO-5381LN-626 12V
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$539.00
$302.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Yale 5300LN Series Lever Locks

Manufactured for the industrial, commercial and institutional markets, 5300LN Series locksets feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural décor.

FEATURES & BENEFITS

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

CERTIFICATIONS

  • ANSI/BHMA Grade 2 certified
  • ADA compliant for ease of accessiblity

DOWNLOAD & RESOURCES

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Handle Type:
Lever
Product Model:
YAL-5381LN
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra MO-5381LN-626 12V – Frequently Asked Questions

1) What does fail secure mean on the Yale 5381LN electrified lever lock, and which side stays locked?
Fail secure means the outside lever stays locked when power is removed, and energizing the lock releases the outside lever for electric access control. The 5381LN is an electrified cylindrical lever lock, so the inside lever always retracts the latch for free egress. If your opening is on an egress path controlled by a fire alarm release and you need the lock to unlock on power loss, you want a fail safe device instead, such as the Corbin Russwin CL33903 electrified cylindrical lever.
2) Do I order the 12VDC or the 24VDC version of the Yale 5381LN?
Both are offered, and the choice follows your power supply and door loop. Every finish in the 5381LN Monroe range is built in 12VDC and 24VDC, so match whatever your access control panel or transformer already puts on the door. Mixing a 12VDC lock onto a 24VDC supply is not something you can correct in the field, so confirm the voltage at the door before you place the order.
3) What backset does the Yale 5381LN come with, and can it go into a 2-3/8 inch prep?
Standard backset is 2-3/4 inch, which is the usual commercial bore. Extension links are available to order for 2-3/8 inch, 3-3/4 inch and 5 inch backsets, so a 2-3/8 inch prep is handled by specifying that link with the order, not by adjusting the standard chassis. The 3-3/4 inch and 5 inch links are what you use on doors with wide stiles or glass lites.
4) Will the Yale 5381LN latch into the strike already in my frame?
The latchbolt has a 1/2 inch stainless steel throw and ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your existing frame has an ANSI strike or a different lip length, other lip lengths can be ordered, and all of them are reversible. A guardbolt deadlocks the latch once the door closes, so the latch face needs to land squarely on the strike lip, not hang off the edge.
5) Can the Yale 5381LN go on a fire rated door?
Yes. The 5300LN series is UL and cUL fire rated up to 3 hours, and it is also windstorm certified, subject to your local code. It carries ANSI/BHMA A156.2 Series 4000 Grade 2 certification and is ADA compliant, which is what the lever operation buys you over a knob on an accessible opening.
6) What is the closest cross-brand equivalent to the Accentra 5381LN electrified cylindrical lever lock?
The nearest peer is the Corbin Russwin CL33903 electrified cylindrical lever lock, offered in a 12VAC/DC version and rated Grade 1 with a 1-3/4 inch to 2 inch door thickness range. The Accentra 5381LN Monroe is Grade 2 and fail secure, and is ordered in 12VDC or 24VDC. So the CL33903 is a fail safe lock at a higher ANSI grade, meaning it unlocks on power loss while the 5381LN stays locked on power loss - confirm which state the access control sequence and the local egress code call for before substituting.
7) Do I need to specify handing for the Monroe lever on the Yale 5300LN?
No handing to specify. The 5300LN lever locks are non-handed, and the front is universal for both flat and beveled door edges, so the same lock goes on a left or right hand opening. The strike is reversible too.
8) What cylinder and keys come with the Yale 5300LN lever lock?
A brass 6-pin keyed-random cylinder with two keys is furnished as standard. Seven-pin cylinders are not offered on this series, so if your facility keys everything on a 7-pin master system, this chassis will not accept it and you should look at a different series.
9) Which finishes does the Yale 5381LN Monroe lever come in for matching the rest of my building?
Ten finishes are stocked on the 5381LN: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. Each is built in both 12VDC and 24VDC. PVD lifetime finish is standard on 605 and 606, which is the one to pick for exterior or high-touch openings where brass would otherwise tarnish.
10) If I need a Grade 1 electrified cylindrical lever instead of Grade 2, what else is there?
The Corbin Russwin CL33903 is the Grade 1 electrified cylindrical lever option, offered in a 12VAC/DC fail safe configuration for doors 1-3/4 inch to 2 inch. That is the one to move to if your spec calls for Grade 1, or if the opening needs to unlock on power loss. The Yale 5381LN is Grade 2 and fail secure, which suits offices, tenant suites and interior access controlled doors rather than high-abuse Grade 1 traffic.
11) I just need a non-keyed passage or privacy lever to match, not the electrified one. What pairs with it?
The 5381LN is the electrified, access controlled opening. For the plain openings in the same building, a Grade 2 cylindrical lever in the same duty class works alongside it, such as the Hager 2510 passage lever or the Hager 2540 for a bed or bath opening, both rated for 1-3/8 inch to 2 inch doors, or the Falcon B101 Grade 2 passage lever. Lever style and finish will not match the Monroe design exactly, so if visual consistency across the floor matters, stay within the Yale 5300LN series for the non-electrified functions.
12) Is a keypad leverset a substitute for the 5381LN electrified lever?
No. Keypad levers such as the Lockey 2835 mechanical pushbutton keyless lever, the Lockey 1150 heavy duty mechanical keypad lever with adjustable backset, and the Delaney LP250 electronic keypad leverlock grant access at the door by code and do not accept a remote release signal. The Accentra 5381LN Monroe is a wired electrified cylindrical lever taking 12VDC or 24VDC, so it is the one that ties into a card reader, intercom, or door controller.
13) I only need matching inactive trim next to a 5381LN electrified lever - what do I use?
Do not order a second 5381LN Monroe for a non-operating leaf; it is a keyed electrified lock. Use dummy trim instead: the BEST 7KC single dummy trim cylindrical lever is Grade 2 medium duty, the BEST 9K 1DT single dummy trim is Grade 1 heavy duty, and the Callan Bentley is a Grade 2 dummy lever. Dummy trim is surface mounted with no latch, so the door will need a separate catch or push-pull.
14) Can the Yale 5381LN be used on an X-ray or radiology room door?
No. Lead shielding is not available on the 5300LN series, so it cannot be used where the opening requires a shielded lock body. For radiology and similar shielded rooms you need a lockset specifically supplied with lead lining.
