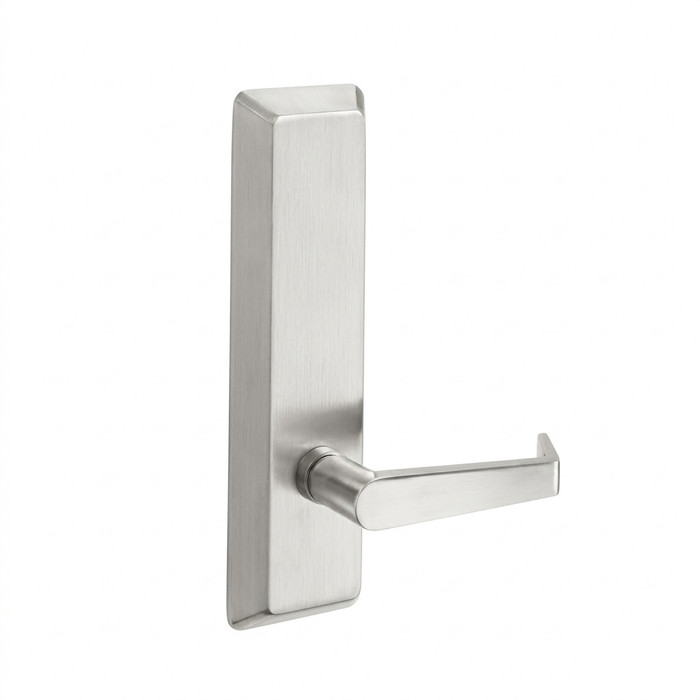

Accentra 629F Exit Device Escutcheon Blank, Dummy Rigid Trim with Augusta Lever Design

Accentra 629F Exit Device Escutcheon Blank, Dummy Rigid Trim with Augusta Lever Design

(No reviews yet) Write a Review

Model: AU629F 630 RHR
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$817.00
$447.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 629F Exit Device Escutcheon Blank, Dummy Rigid Trim with Augusta Lever Design

Professional Exit Device Trim Solution

The Accentra 629F Exit Device Escutcheon Lever Trim delivers commercial-grade security hardware with Dummy (02) ANSI function capability. This professional trim features a 2-5/8" projection design with solid forged escutcheon construction and measures 3" x 10-1/4" x 13/16" for reliable door hardware applications. The Pacific Beach lever design provides both functionality and aesthetic appeal for demanding commercial environments.

Professional Features & Benefits

  • Precise Dimensions: 3" x 10-1/4" x 13/16" escutcheon with 2-5/8" projection for accurate door preparation and professional installation.
  • Heavy-Duty Construction: Solid forged escutcheon and Free-Wheeling trim design resists vandalism and abuse in high-traffic commercial applications.
  • Enhanced Security Design: Beveled sides improve attack resistance while trim through-bolts to exit device provide additional strength and security.
  • ANSI Function Compatibility: Supports both classroom (08) and storeroom (09) functions for versatile access control applications.
  • Rim Cylinder Classification: Designed for rim cylinder applications providing flexible keying options for various security requirements.
  • Professional Lever Design: Pacific Beach lever style combines ergonomic operation with commercial-grade durability for frequent use environments.

Technical Specifications

  • Cylinder Classification: Rim
  • Department: Door Hardware
  • Fire Rating: No
  • Includes Cylinder: No
  • Product Category: Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Trim Classification: Nightlatch Lever

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra exit device trim products deliver professional-grade reliability with solid forged escutcheon construction and Free-Wheeling trim technology designed to resist vandalism and abuse. The beveled sides and through-bolt mounting system provide enhanced attack resistance for demanding commercial applications. Engineered for high-traffic environments where dependable performance and security are essential.

Product Specs

Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Includes Cylinder:
No
Cylinder Classification:
Rim
Fire Rating:
No
Trim Classification:
Dummy Lever
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Exit Device Trims

Accentra AU629F 630 RHR – Frequently Asked Questions

1) Does the Accentra 629F exit trim operate the exit device, or is it a fixed pull?
It's a dummy trim. The 629F escutcheon and lever are rigid, so pulling or turning the lever does nothing to the device. It gives the outside of the door a lever and plate to grab, and egress still happens on the push bar inside. If you need the outside lever to retract the latch with a key, you want a keyed trim instead, not this one.
2) Do I have to specify handing when ordering the Accentra 629F escutcheon trim?
Yes, handing is part of the order. The 629F is built as either left hand reverse or right hand reverse, so identify the swing of the opening before you order. Exit devices are on out-swinging doors, which is why both options are reverse bevel.
3) What are the alternatives to the Accentra 629F if I need something other than a dummy lever on the outside?
Keep the dummy if the outside should never open the door. If you need keyed access, the Sargent 704ET is a night latch lever trim where the key retracts the latch, and the Design Hardware KIL storeroom trim is a keyed storeroom option. For a passage lever that always opens, look at the Corbin Russwin 3310AET. If you want a dummy from another line, the Detex 02BN is a dummy S-lever with a blank escutcheon and the Von Duprin 230DT is a dummy trim on a 10 gauge steel escutcheon. Each of those is built for its own device series, so match the trim to the exit device you're actually running.
4) What is the closest equivalent to the Accentra 629F dummy exit device trim from another manufacturer?
The Accentra 629F is a dummy lever trim with a blank escutcheon, meaning the lever is fixed and the door is opened only from the inside push bar. Two direct counterparts exist: the Von Duprin 230DT dummy trim, built with a heavy duty 10 gauge steel escutcheon and Grade 1 rated for the 22 Series devices, and the Detex 02BN dummy S-lever trim with blank escutcheon for Value Series devices. All three serve the same purpose, so the choice is driven by which exit device is already on the door.
5) I need key access from the outside, not a fixed dummy lever. What should I order instead?
The Accentra 629F is a dummy trim, so the lever never retracts the latch and no cylinder is supplied with it. For keyed outside access on an exit device, look at nightlatch or storeroom lever trims such as the Sargent 704ET night latch lever trim with field reversible operation, the Corbin Russwin VT957ET nightlatch escutcheon trim in stamped or formed stainless steel, the Tell EDELT80 escutcheon lever trim in storeroom function, or the Marks USA M195F storeroom function lever and rose trim. With a nightlatch the key retracts the latch for entry; with the dummy the door stays push-bar-only from the outside.
6) I need the outside lever to always open the door without a key. Is the 629F right?
No. The Accentra 629F is a dummy trim, so its lever is fixed and will not retract the latch at any time. For always-open outside lever operation, passage function trims are the correct family: the Arrow SRX01 Sierra lever with rose in passage function for ED910, S1150 and S1250 devices, the Corbin Russwin 3310AET passage function trim for ED3000 Grade 1 rim, surface vertical rod and mortise devices, or the Corbin Russwin x910ET passage function heavy-duty trim for the ED5200S, ED5200, ED5400 and ED5800 series.
7) Does a cylinder come with the Accentra 629F trim?
No cylinder is supplied with the 629F, and none is needed for it to do its job since it's a blank escutcheon dummy trim with no keyed operation. Where a cylinder does get used on the opening, the device takes a rim cylinder.
8) How far does the Accentra 629F lever trim stick out from the door face?
Projection is 2-5/8 inches, and the escutcheon measures 3 x 10-1/4 x 13/16 inches. Worth checking against tight corridors, adjacent walls, and door-to-door clearance on a pair of openings before the plates go on.
9) How does the 629F escutcheon trim mount, and will it hold up to abuse?
The escutcheon is solid forged with beveled sides, and it through-bolts to the exit device rather than relying on surface screws alone. That through-bolting is what keeps a dummy trim from being twisted or pried off in a high traffic entry.
10) I'm standardizing exit trim across a building. Can I mix the 629F dummy with keyed trim on other doors?
Yes, and that's the usual approach. Put the 629F on exit-only leaves where nobody should come in from outside, and use keyed trim on the openings that need controlled entry. Ordering them all in 630 satin stainless keeps the look consistent across the openings. Just remember the 629F is not fire rated, so rated leaves need labeled trim.
11) Is the Accentra 629F a fire rated trim, and what should I specify on a labeled opening?
The Accentra 629F is not fire rated. On a labeled opening, specify trim listed for fire door service with the device manufacturer; Grade 1 trims in the comparable range include the Sargent 744 freewheeling night latch trim for 8700 and 8900 surface vertical rod and mortise devices, the Design Hardware KIL storeroom function trim with Schlage C keyway for 1000 and 2000 series devices, and the Pamex E9000 Grade 1 storeroom L3 lever trim for 1-3/8 inch to 2 inch doors. Always confirm the listing against the exit device and door label.
12) Is a blank escutcheon knob trim the same thing as the 629F blank escutcheon lever trim?
They fill the same opening but the grip differs. The Accentra 629F carries a lever on a blank escutcheon. The Von Duprin 210K-BE is a knob trim with blank escutcheon for the 22 Series, Grade 1 and heavy duty. On barrier-free and ADA-governed openings a lever is generally specified over a knob, so the two are not interchangeable on every door even though both are non-keyed blank escutcheon trims.
13) What is a simpler pull-only alternative to the Accentra 629F for an exit-only door?
If the outside just needs something to grab and does not need a lever at all, pull trims cover it: the BEST 1700 Series exit only pull trim for 2000 Series devices in wide stile, the BEST Precision 2000 Series narrow stile exit only pull trim with cover plate, or the Dexter ED1500 Series dummy function trim with handle pull plate. These match the Accentra 629F in that the outside never retracts the latch, but they present a pull rather than a lever.
14) What trim should I use instead of the 629F if tenants need to key in on a 1-3/4 inch hollow metal door?
The Accentra 629F ships without a cylinder and its lever does not retract the latch. For keyed tenant entry on a 1-3/8 inch to 1-3/4 inch door, the Tell EDELT53 escutcheon lever trim in keyed entry function and the Tell EDTHP53 thumbpiece trim in keyed entry function both cover that thickness range. If you prefer a lever on an escutcheon in entry function from a Grade 1 line, the Design Hardware LE08 entry function trim for 1000R and 2000R devices uses a flat lever with escutcheon.
15) How does the Accentra 629F compare with the Falcon 212L blank escutcheon trim?
Both put a lever on a blank escutcheon with no cylinder. The Falcon 212L is a 20 Series escutcheon lever trim with shear pin protection, rated medium duty. The Accentra 629F uses a solid forged escutcheon with free-wheeling trim, beveled sides, and through-bolts to the exit device, and its escutcheon measures 3 inches by 10-1/4 inches by 13/16 inch with a 2-5/8 inch projection. The Falcon suits 20 Series devices; the Accentra is ordered handed, left hand reverse or right hand reverse.
