Accentra 632F Exit Device Escutcheon Trim, NightLatch Function

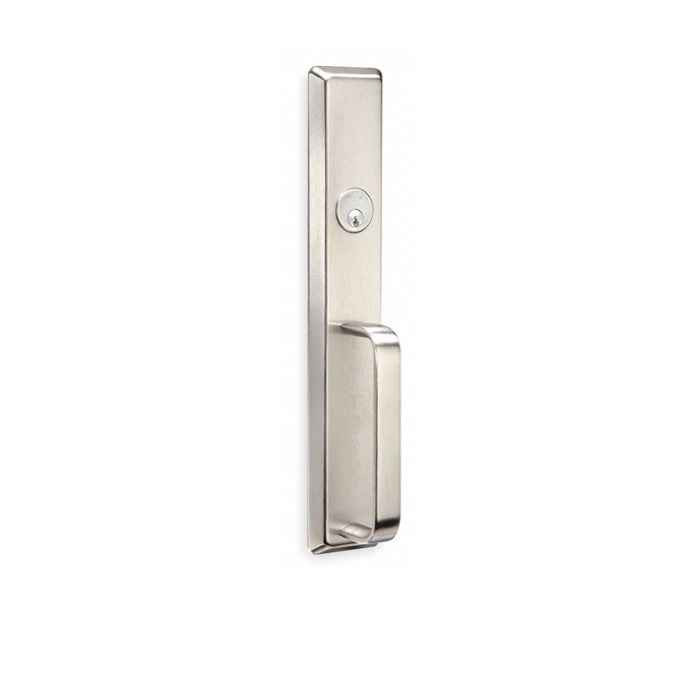

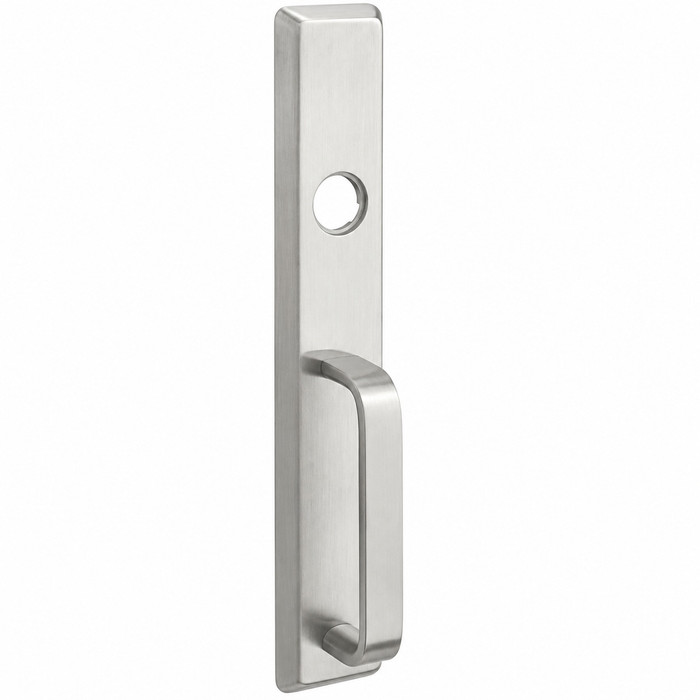

Accentra 632F Exit Device Escutcheon Trim with NightLatch Function

(No reviews yet) Write a Review

Model: 632F-630
Selected Finish is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$555.56
$321.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 632F Exit Device Escutcheon Trim with NightLatch Function

Professional Exit Device Trim Solution

The Accentra 632F Exit Device Escutcheon Trim delivers professional-grade security hardware for commercial applications. This pull x escutcheon x cylinder trim (less cylinder) is compatible with 1500, 2100, 6100, and 7100 Series exit devices, featuring ANSI Function 03 with 2-1/8" projection and solid forged construction measuring 2-3/4" x 15-1/2" x 5/8". The rim cylinder classification and classroom/storeroom lever functionality provide versatile access control for demanding commercial environments.

Professional Features & Benefits

  • Precise Dimensions: 2-3/4" x 15-1/2" x 5/8" escutcheon with 2-1/8" projection for optimal door clearance and professional appearance.
  • Heavy-Duty Construction: Solid forged escutcheon construction resists vandalism and abuse for long-term reliability in high-traffic applications.
  • Enhanced Security Design: Beveled sides improve attack resistance while trim through-bolts to exit device provide superior mounting strength.
  • Universal Series Compatibility: Works with 1500, 2100, 6100, and 7100 Series exit devices for versatile installation options across multiple product lines.
  • ANSI Function 03: NightLatch function provides classroom/storeroom lever operation for controlled access applications.
  • Rim Cylinder Ready: Designed for rim cylinder installation (cylinder sold separately) for flexible keying options.

Technical Specifications

  • Cylinder Classification: Rim
  • Department: Door Hardware
  • Fire Rating: No
  • Includes Cylinder: No
  • Product Category: Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Trim Classification: Classroom/Storeroom Lever

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra exit device trim products deliver professional-grade reliability with solid forged construction designed to resist vandalism and abuse in demanding commercial applications. The beveled design and through-bolt mounting system provide enhanced security and structural integrity. Engineered for demanding commercial applications where dependable performance and attack resistance are essential.

Product Specs

Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Includes Cylinder:
No
Cylinder Classification:
Rim
Fire Rating:
No
Trim Classification:
Classroom/Storeroom Lever
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Exit Device Trims

Accentra 632F-630 – Frequently Asked Questions

1) Which Accentra exit devices does the 632F escutcheon trim fit?
The 632F pull x escutcheon x cylinder trim mounts to Accentra 1500, 2100, 6100, and 7100 Series exit devices. It through-bolts to the device, so the device itself carries the mounting load rather than the door face.
2) Does the Accentra 632F trim come with a cylinder?
Two ways to order it. One is less cylinder, so you supply your own rim cylinder and key it into your existing system. The other comes with a conventional cylinder in the PARA E1R keyway. Either way it takes a rim cylinder, not a mortise cylinder.
3) What does NightLatch function mean on the 632F exit trim?
ANSI Function 03, nightlatch: the outside pull is always rigid and the key retracts the latch to let you in. Push the touchbar from inside and you are always out. It is the classroom/storeroom style of control, so the door stays locked from outside unless someone has a key.
4) Can I use the Accentra 632F trim on a fire rated door opening?
No. The 632F is not fire rated, so it does not belong on a labeled opening. For a fire door you need trim carried under the device manufacturer's fire listing.
5) I want a lever instead of a pull on a nightlatch exit trim - what should I use?
The Accentra 632F is a pull x escutcheon x cylinder trim, so the outside operation is a fixed pull rather than a lever. For lever operation with key retraction, the Sargent 704ET is a Grade 1 heavy duty night latch lever trim with field reversible operation, and the Sargent 704-ETL covers the same night latch function with key retract for PE Series devices. Sargent's 744 is the Grade 1 night latch freewheeling lever trim for 8700 and 8900 Series surface vertical rod and mortise devices.
6) What should I use instead of the Accentra 632F if the opening needs access control or a keypad?
The 632F is a mechanical nightlatch trim with a rim cylinder, so it has no electrified option. For powered control, the Command Access ET15, ET25 and ET26 are electrified exit trims with 12V and 24V operation and fail safe or fail secure options, the ET26 with Grade 1 construction and a field reversible design. Command Access also offers the 230L electrified trim for V96/36/23 Series devices. For standalone keypad entry, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim in wide stile, and the PowerPlex P201U covers rim, mortise and SVR devices.
7) How much does the 632F escutcheon trim stick out from the door face?
Projection is 2-1/8 inches, and the escutcheon itself measures 2-3/4 x 15-1/2 x 5/8 inches. Worth checking that projection against a door on a tight swing or against an adjacent wall, jamb, or a second leaf in a pair.
8) What is a nightlatch pull trim alternative to the Accentra 632F for other device brands?
Several brands build the same pull-with-cylinder-hole arrangement. The Design Hardware 2P-03NL is a Grade 1 pull trim with cylinder hole in night latch form for 1000R and 2000R exit devices. The Dexter ED1500T-PULL-NC is a Grade 1 nightlatch function trim with a raised lip pull plate. The Tell EDPT is an exit device pull trim with a cylinder hole supplied less cylinder for 1-3/8 inch to 1-3/4 inch doors. All three, like the 632F, ship without the cylinder.
9) What is a simpler pull trim if I do not need key access through the Accentra 632F?
If the outside face only needs a pull with no cylinder function, exit-only pull trims cover it. The BEST 1700 Series 1701 is an exit only pull trim for 2000 Series devices in wide stile, and the BEST Precision 2001 is the narrow stile exit only pull trim with cover plate. For lever appearance without keyed operation, the Detex 02BN is a dummy S-lever trim with a blank escutcheon. The 632F differs in that it is drilled for a rim cylinder and is supplied less cylinder or with a conventional PARA E1R keyway cylinder.
10) If the door should stay unlocked from the outside, is the Accentra 632F the right trim?
No - the 632F is a nightlatch trim, keyed for controlled access. For always-free outside operation, use a passage trim: the Corbin Russwin 3310AET is a passage function trim for ED300 Series rim, surface vertical rod and mortise devices, the x810ET covers passage on ED4000 Series, and the x910ET is the heavy duty passage trim for ED5200S, ED5200, ED5400 and ED5800 Series. The Arrow SRX01 is a passage function Sierra lever with rose for ED910, S1150 and S1250 devices.
11) What finish does the 632F exit device trim come in?
630 satin stainless steel is the finish offered, on both the less-cylinder and the cylinder-included build. That matches the standard commercial stainless look on most schools, hospitals, and office entrances, so it usually blends with existing pulls and push plates.
12) Will the 632F hold up on a high traffic entrance that gets abused?
It is a solid forged escutcheon with beveled sides, which sheds pry attempts, and the trim through-bolts back to the exit device instead of relying on screws into the door skin. That construction is why it shows up on school, retail, and municipal exterior doors.
13) What thumbpiece trim compares to the Accentra 632F pull escutcheon?
A thumbpiece trim is the alternative when you want a grip-and-thumb release rather than a fixed pull. The Dexter ED1000T-CLRM-TP-NC is a Grade 1 thumbpiece x pull plate x cylinder trim in classroom function, supplied less cylinder, and the Tell EDTHP53 is a thumbpiece trim in keyed entry function for 1-3/8 inch to 1-3/4 inch doors. The 632F keeps a fixed pull with the key retracting the latch under its ANSI Function 03 nightlatch operation.
14) Is there an escutcheon lever trim with a published door thickness range comparable to the Accentra 632F?
For openings where you need the thickness range confirmed up front, the Pamex E9000 is a Grade 1 storeroom function heavy duty exit trim with an L3 lever rated for 1-3/8 inch to 2 inch doors, and the Tell EDELT53 is an escutcheon lever trim in keyed entry function for 1-3/8 inch to 1-3/4 inch doors. The 632F remains the choice where the device is an Accentra 1500, 2100, 6100 or 7100 Series and forged escutcheon construction is wanted.
