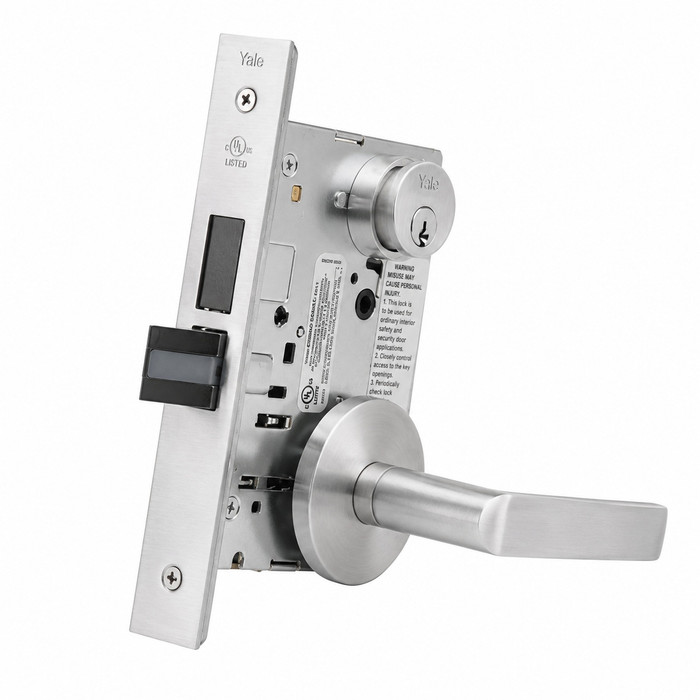

Yale 8805FL Grade 1 Storeroom Mortise Lock, Monroe Lever

Accentra 8805FL Grade 1 Storeroom Mortise Lock with Monroe Lever

(No reviews yet) Write a Review

Model: MOR8805FL-626
From the 8800 Series Collection
Selected Finish is
Selected Rose/Escutcheon is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,112.18
$666.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 8805FL Grade 1 Storeroom Mortise Lock with Monroe Lever

Heavy-Duty Commercial Mortise Lock Solution

The Accentra 8805FL Grade 1 Storeroom Mortise Lock delivers uncompromising strength and durability for demanding commercial applications. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, 2-3/4" backset depth, and accommodates door thickness from 1-3/4" to 3-1/4". The Monroe lever design provides professional aesthetics while the field reversible handing and 3/4" latchbolt throw ensure versatile installation options.

Professional Features & Benefits

  • Functions available for any industrial or commercial application
  • Field adjustable handing
  • Available in a variety of attractive trims and finishes
  • Status indicator options available to provide peace of mind on the locked/unlocked status of a door
  • Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
  • Thrubolted security head screws offer added protection (Specific to 8800 SL version)
  • UL/cUL listed for 3-hour fire rated doors
  • Heavy-duty escutcheon trim for resistance against damage and vandalism
  • 10-year mechanical warranty
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 3-1/4", 2-3/4" backset depth, and handing as applicable to this mortise lock.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper mortise pocket and strike preparation.
  3. Prepare door and frame by drilling required holes and routing mortise pocket as specified in manufacturer instructions for the 8800 Series installation.
  4. Install all mounting hardware and secure the lock body to door per manufacturer torque specifications, ensuring proper alignment of the deadlocking latchbolt mechanism.
  5. Adjust operational components for proper alignment, latching, and smooth operation of both the 3/4" latchbolt throw and Monroe lever throughout the full range of motion.
  6. Test lock operation to verify proper storeroom function with key operation from outside and lever operation from inside, making final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 8800 Series mortise locks deliver professional-grade reliability with reinforced stainless steel deadbolt construction and heavy-duty vandal-resistant trim rated for ANSI/BHMA Grade 1 performance. The 10-year mechanical warranty provides added confidence and protection for demanding commercial installations. Engineered for demanding commercial applications where dependable security and long-term durability are essential.

Manufacturer Resources

8800 Series Mortise Locks

Product Specs

Series:
8800 Series
Subcategory:
Lever Locksets
Keyed Function:
Single Cylinder
Grade:
Grade 1
ANSI/BHMA:
F07
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Storeroom
Product Attribute:
Mortise Locks
Electronic:
No
Tags:
yale 8805
Product Model:
8805
Collection:
8800 Series
Product Function:
Storeroom
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra MOR8805FL-626 – Frequently Asked Questions

1) What does storeroom function mean on the Accentra 8805 mortise lock, and is it right for a supply closet?
Storeroom function is exactly what a supply or mechanical room wants. The outside lever on the 8805FL is always locked and can only be retracted by the key; the inside lever always retracts the latch for free egress, and there is no way to leave the outside unlocked by accident. It is the ANSI/BHMA F07 function, single cylinder keyed. If you need the door to be able to sit unlocked during business hours, storeroom is the wrong pick and you want an office or entry function instead.
2) Will the 8805FL latch into the strike that is already in my frame?
It depends on the backset and the throw. The 8805FL is a 2-3/4 inch backset mortise lock with a 3/4 inch deadlocking latchbolt throw, which is the standard commercial mortise geometry, so if the existing opening is already prepped for a 2-3/4 inch backset mortise lock body with an ANSI strike, the latch will engage. If the door currently carries a cylindrical lock or a 2-3/8 inch backset, the door has to be mortised and the frame re-prepped.
3) Can I use the Accentra 8805FL on a 3-hour fire rated door?
Yes. The 8805FL is UL/cUL listed for 3-hour fire rated doors, so it can go on a rated opening in a stair, corridor, or fire wall. Storeroom function also keeps free egress from the inside, which is what a rated egress door needs.
4) Should I order the 8805 with escutcheon trim or rose trim?
For a high-abuse opening, take the CN escutcheon. Accentra's certification is ANSI/BHMA A156.13 Series 1000 Operational Grade 1 across the 8800FL line, but the 8800FL with the CN escutcheon is the version that also meets Security Grade 1, and the heavy escutcheon plate covers more of the door face against damage and vandalism. Rose trim is the cleaner look for an office corridor or a tenant-facing door where abuse is not the concern.
5) What is a Grade 1 storeroom mortise lock alternative to the Accentra 8805?
The Cal-Royal NM8080 is the closest straight substitute, a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option, though it is listed for 1-3/4 inch doors only. The Baldwin 6310 entry/storeroom mortise lock body is another route and covers 1-3/8 inch and over, but it is a lock body on a 2-1/2 inch backset, not the 2-3/4 inch the Accentra uses, so it is not a drop-in on the same door prep. If your doors run thicker than 1-3/4 inches, the 8805FL's 1-3/4 to 3-1/4 inch range is the reason to stay with it.
6) What is the closest cross-brand equivalent to the Accentra 8805FL storeroom mortise lock?
The Cal-Royal NM8080 is the nearest match in function and grade. Both are Grade 1 storeroom-function mortise locksets: the 8805FL is a Grade 1 storeroom mortise lock, and the NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option. The practical difference is door thickness. The 8805FL accepts doors from 1-3/4 inch to 3-1/4 inch, while the NM8080 is specified for a 1-3/4 inch door, so on anything thicker than a standard 1-3/4 inch leaf the Accentra is the one that fits.
7) The opening needs classroom function instead of storeroom - what mortise lock should I order?
Storeroom function keeps the outside lever locked at all times with key entry, so it is the wrong choice where staff need to lock and unlock the outside lever from the corridor. For classroom function in a Grade 1 mortise body, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for a 1-3/4 inch door, and the Cal-Royal NM8070 is a heavy duty Grade 1 classroom mortise lockset with auxiliary deadlatch, also for a 1-3/4 inch door. The 8805FL remains the storeroom-function part.
8) I need a mortise lock for a dormitory or corridor door where occupants secure the door behind them - is the 8805FL right?
No. The 8805FL is a storeroom-function lock, keyed from the outside with the outside lever always locked. For a corridor or dormitory opening, the Sargent 7925 is a Grade 1 heavy duty mortise lock in the 7900 Series with corridor/dormitory function, rose trim, and a single cylinder deadbolt. The deadbolt on the 7925 is what lets the occupant secure the opening from inside, which the storeroom function of the 8805FL does not do.
9) Can I use a Baldwin 6310 mortise lock body in place of an Accentra 8805FL?
They are not interchangeable in the same door prep. The 8805FL is built on a 2-3/4 inch backset, while the Baldwin 6310 knob-by-knob entry/storeroom mortise lock body and the 6310190RRLS lever-by-lever version are 2-1/2 inch backset bodies. A 2-1/2 inch backset lock will not land in a pocket routed for 2-3/4 inch without re-prepping the door. The Baldwin bodies do cover doors 1-3/8 inch and over, where the 8805FL starts at 1-3/4 inch, so on a thinner leaf the Baldwin is the one that applies.
10) Is the Accentra 8805 handed, or do I have to order left and right hand separately?
No handing to specify. The 8805FL is field reversible, so one lock covers a left hand or right hand opening and you set it at install. That is what makes it worth stocking for a property manager keeping spares for a building with doors swinging both ways.
11) What do I have to specify when ordering an Accentra 8805FL storeroom lock?
Two choices. First the trim style, either CN escutcheon or rose. Second the finish, from nine options: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, BSP black suede powder coat, and WSP white suede powder coat. Every finish is offered in both the escutcheon and rose trim. The lever is the Monroe design throughout.
12) I need card or keypad access on this door instead of a key. What mortise lock should I look at?
The 8805FL is a mechanical lock with no electronic option, so if you want credentials you are choosing a different product. For classroom function with RFID, the TownSteel FME-2000 Series is a Grade 1 heavy duty mortise lockset on 1-3/4 inch doors. The Command Access ML190 Series is a motorized storeroom-function mortise lock with field selectable fail safe or fail secure operation on 24VDC, which is the closest electrified match to what the 8805FL does mechanically. For a standalone keypad with key override, the BEST 45HZ EZ Series is another route.
13) Can I standardize a whole facility on the Accentra 8800 Series and still get different functions on different doors?
That is the point of the series. The 8805FL is the storeroom function, and the 8800 Series carries functions covering industrial and commercial applications, all on the same 2-3/4 inch backset and the same Monroe lever and trim options, so a classroom, an office, and a storeroom door can share one door prep, one lever design, and one finish across the building. Pick the finish once and carry it across the openings.
14) Is the Accentra 8805 the same thing as a Yale 8805 mortise lock?
Same lock. Yale's commercial hardware line was rebranded Accentra under ASSA ABLOY, so an Accentra 8805FL is what buyers still search for as a Yale 8805. Model designation, 8800 Series family, F07 storeroom function, and the Monroe lever all carry over unchanged.
15) Is one key enough for the 8805FL, or do I need cylinders on both sides?
One cylinder, outside only. The 8805FL is a single cylinder keyed lock, so the key works the outside lever and the inside lever always turns free for egress. Budget one cylinder per door when pricing out a keying schedule, not two.
16) Is a mortise lock like the 8805 worth it over a cylindrical lever lock on a commercial door?
On a door that gets hit hard, yes. A mortise lock body sits inside a routed pocket in the door edge and carries a reinforced stainless steel deadbolt alongside the 3/4 inch deadlocking latchbolt, which a cylindrical lock does not have. The tradeoff is prep: the door has to be mortised, and that is a machining job, not a two-hole bore. On a light interior door with an existing cylindrical prep, something like the Schlage PC10 cylindrical lock is the far cheaper install because it drops into the bore that is already there.
17) The door does not need to be keyed - what is the simpler alternative to the Accentra 8805FL?
If the opening only needs latching without any key control, a passage mortise lock replaces a keyed storeroom lock. The Falcon MA101 is a Grade 1 heavy-duty mortise passage lock in the MA Series with field reversible operation and a fire rating. The Hager 3810E is a 3800 Series Grade 1 passage mortise lock with escutcheon and a 2-3/4 inch backset for doors 1-3/4 inch to 2-1/2 inch, and the Hager 3810S is the same passage function with rose trim. The 8805FL is keyed with single cylinder operation, which none of those passage locks provide.
18) Is a Sargent 4874 mortise deadbolt a substitute for the Accentra 8805FL?
No, and the shared 2-3/4 inch backset makes it look closer than it is. The Sargent 4874 is a double cylinder mortise deadbolt in the 4870 Series with a 2-3/4 inch backset - it is a deadbolt only, with no lever and no latching. The 8805FL is a single cylinder storeroom lockset with a Monroe lever, a 3/4 inch latchbolt throw and a reinforced stainless steel deadbolt in one body, so it latches the door on every closure. If the opening needs both a working lever and a bolt, the 4874 does not cover it.
19) Which mortise lock do I use for a restroom or bedroom door instead of the 8805FL?
Privacy function is the right choice there, not storeroom. The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for a 1-3/4 inch door, and the Hager 3840S is a 3800 Series Grade 1 privacy mortise lock with a 2-3/4 inch backset for doors 1-3/4 inch to 2 inch, matching the backset the 8805FL uses. The 8805FL is keyed storeroom function, which locks the outside lever permanently and is not intended for an occupant-controlled restroom or bedroom opening.
20) We standardize on behavioral health openings - what replaces the 8805FL where ligature resistance is required?
The 8805FL uses a Monroe lever on escutcheon or rose trim, which is not a ligature-resistant profile. For those openings the TownSteel MRX-A-01 is a Grade 1 heavy duty passage mortise lockset with satin stainless steel ligature-resistant arch trim, and the MRX-L-01 is the Grade 1 heavy duty anti-ligature lever version, both for a 1-3/4 inch door. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. All three are passage function, so they do not carry the key control the storeroom 8805FL provides.
21) Does an Alarm Lock Trilogy mortise lock fit the same doors as the Accentra 8805FL?
Not across the same range. The Alarm Lock DL2700CR and DL3500CR are Grade 1 electronic classroom-function mortise locks specified for doors 1-5/8 inch to 1-7/8 inch, and the DL4500 electronic mortise deadbolt covers the same 1-5/8 inch to 1-7/8 inch range. The 8805FL takes doors from 1-3/4 inch to 3-1/4 inch. On a thick door - anything past 1-7/8 inch - the Trilogy units are out of range and the mechanical 8805FL is the part that fits. The Trilogy locks are also classroom or deadbolt function, not storeroom.
22) The storeroom door has to unlock on a fire alarm or card read - what mortise lock handles that?
An electrified mortise lock is required for that, and the 8805FL is a mechanical lock. The Schlage L9092EU with 03A trim is a heavy duty electric lock/unlock outside lever mortise lock, keyed outside, with request to exit and 12/24VDC operation for a 1-3/4 inch door. The BEST 45HW Series is a heavy duty wired electromechanical mortise lock with 12V/24V operation. Either gives you remote control of the outside lever that the key-only 8805FL does not.
23) What is the difference between the Accentra 8805FL and a BEST 45H mortise lock body?
The 8805FL ships as a complete storeroom lockset with the Monroe lever and a choice of escutcheon or rose trim. The BEST 45HCAC is a heavy duty mortise lock body with public entrance function and field reversible operation, and the 45HCAINL is a heavy duty mortise lockbody with intruder function - lock bodies, so trim is specified separately. Function differs too: public entrance and intruder are not storeroom, which is what the 8805FL does. Both the 8805FL and the 45HCAC are field reversible for handing.
24) Can I swap in a Schlage PC10 cylindrical lock where an 8805FL was specified?
No. The Schlage PC10 is a Grade 1 passage cylindrical lock with rose for a 1-3/4 inch door - a cylindrical body that goes into a bored hole, not a mortise pocket. The 8805FL is a mortise lock that requires a routed pocket and a 2-3/4 inch backset. If you want to stay with a Schlage mortise body on a non-keyed opening, the PM010 is a Grade 1 passage latch mortise lock for a 1-3/4 inch door. Neither PC10 nor PM010 is keyed, and the 8805FL is.
25) We need a Grade 1 lock on a 3-hour fire rated opening - what are my mortise options besides the 8805FL?
The 8805FL is UL/cUL listed for 3-hour fire rated doors and certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1. Among electrified alternatives on 3-hour openings, the Schlage LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 3 hour fire rating, a 125kHz proximity reader and a mobile enabled deadbolt with LED on Greenwich trim, right hand. Note the LEMD-GRW is supplied right hand, while the 8805FL is field reversible for handing. The Falcon MA101 is a Grade 1 heavy duty fire rated mortise passage lock, though passage function carries no key control.
26) Can staff tell from the corridor whether an Accentra 8800 door is locked?
The 8800 Series offers status indicator options that show locked or unlocked state on the door, which is what schools and healthcare facilities ask for on rooms that get secured during a lockdown. Standard 8805FL storeroom function is always locked from outside, so the indicator matters most on functions that change state.
27) Does installing the Accentra 8805FL need anything beyond a standard mortise prep?
Beyond the mortise pocket itself, plan on routing the door and prepping the frame strike to Accentra's templates for the 8800 Series, and confirm the door thickness sits inside 1-3/4 to 3-1/4 inches before you cut. Handing is set in the field, so no dedicated left or right hand order. On the SL version of the 8800, the lever attaches directly to the escutcheon trim and thrubolted security head screws are used, which changes what fasteners pass through the door.
28) Is an Emtek mortise entrance lockset an alternative to the Accentra 8805FL?
They serve different purposes. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are all dummy function - trim that mounts on an inactive leaf and does not latch or lock. The 8805FL is a keyed single cylinder storeroom lock with a 3/4 inch latchbolt throw and a reinforced stainless steel deadbolt. If the door has to secure, the Emtek dummy sets do not do the job; they are what you use on the matching inactive leaf of a pair.
