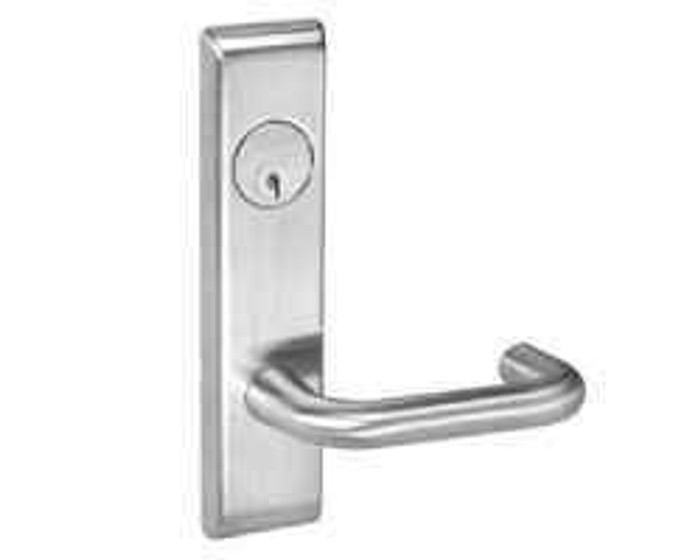

Accentra 8807FL Grade 1 Entrance Mortise Lock, Carmel Lever

Accentra 8807FL Grade 1 Entrance Mortise Lock with Carmel Lever

(No reviews yet) Write a Review

Model: CRR-8807FL-626
From the 8800 Series Collection
$1,112.18
$662.68
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,112.18
$662.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 8807FL Grade 1 Entrance Mortise Lock with Carmel Lever

Heavy-Duty Commercial Mortise Lock Solution

The Accentra 8807FL Grade 1 Entrance Mortise Lock delivers uncompromising strength and durability for demanding commercial applications. This heavy-duty mortise lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and ANSI/BHMA Grade 1 certification. With a standard 2-3/4" backset, 3/4" latchbolt throw, and field reversible handing, the 8807FL accommodates door thicknesses from 1-3/4" to 3-1/4" and is UL listed for 3-hour fire rated doors.

Professional Features & Benefits

  • Functions available for any industrial or commercial application
  • Field adjustable handing
  • Available in a variety of attractive trims and finishes
  • Status indicator options available to provide peace of mind on the locked/unlocked status of a door
  • Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
  • Thrubolted security head screws offer added protection (Specific to 8800 SL version)
  • UL/cUL listed for 3-hour fire rated doors
  • Heavy-duty escutcheon trim for resistance against damage and vandalism
  • 10-year mechanical warranty
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 3-1/4", 2-3/4" backset, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra mortise lock products deliver professional-grade reliability with reinforced stainless steel deadbolt construction and heavy-duty vandal-resistant trim rated for ANSI/BHMA Grade 1 performance. Backed by a comprehensive 10-year mechanical warranty and UL listing for 3-hour fire rated applications. Engineered for demanding commercial applications where dependable security and long-term durability are essential.

Manufacturer Resources

8800 Series Mortise Locks

Product Specs

Series:
8800 Series
Subcategory:
Lever Locksets
Keyed Function:
Single Cylinder
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Entrance
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
8807
Collection:
8800 Series
Product Function:
Entrance
Lever Design Name:
Carmel Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra CRR-8807FL-626 – Frequently Asked Questions

1) Do I need to order the 8807FL mortise lock handed, left or right?
No. Handing is field adjustable on the 8807FL, so one lock covers both left and right hand openings. That is useful if you are stocking spares across a building instead of carrying two part numbers.
2) What does the Entrance function on the 8807 mortise lock actually do at the door?
Entrance function with a single cylinder outside. The key controls the outside lever, and the lock carries a reinforced stainless steel deadbolt for the added security a tenant or office entry door needs. Inside is always free egress by lever. It is a keyed lock, so plan on a cylinder.
3) Can I get the Accentra 8807FL without a cylinder so I can key it to my own system?
Yes. The 8807FL is orderable Less Cylinder, which is how most locksmiths buy it when the building is already on an existing keyway or restricted system. The alternative is the factory conventional cylinder in the PARA-E1R keyway. Both cylinder choices are available with either escutcheon or rose trim.
4) Escutcheon or rose trim on the 8800 Series mortise lock, which should I specify?
Both are offered on the 8807FL with the Carmel lever. The CN escutcheon is the heavy plate version, built to resist damage and vandalism, and it is the configuration that carries ANSI/BHMA A156.13 Security Grade 1. The R rose is the smaller round trim, which suits a cleaner look on an office or tenant door where vandalism is not the concern. If a spec calls out Security Grade 1, order the escutcheon.
5) Is the 8807FL mortise lock approved for a 3 hour fire rated door?
Yes, the 8807FL is UL/cUL listed for 3-hour fire rated doors, and it is certified to ANSI/BHMA A156.13, Series 1000, Operational Grade 1. That combination is what most institutional and government specs ask for on a stairwell or corridor entry.
6) Will the 8807FL latch into the strike that is already in my frame?
The latchbolt throws 3/4 inch on a 2-3/4 inch backset, which is the standard commercial mortise arrangement. If the door already carries a mortise lock on a 2-3/4 backset with an ANSI strike, the latch will engage. Note that the 8807 also throws a separate deadbolt, so the existing strike has to have the deadbolt pocket, not just a latch cutout, or you are replacing the strike.
7) What is the keypad or credential alternative if I do not want to issue keys?
The Accentra 8807FL is a mechanical, non-electronic lock keyed with a conventional cylinder. For credential-based access on a mortise prep, the Alarm Lock DL3500CR is a Grade 1 electronic mortise lock with 300 user codes in classroom function for 1-5/8 to 1-7/8 inch doors, and the TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID for 1-3/4 inch doors. Note both are classroom function rather than entrance.
8) What is the storeroom-function equivalent for a door that should always stay locked?
The Accentra 8807FL is an entrance function lock, which allows the outside lever to be left unlocked. If the opening must stay locked at all times, the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors.
9) I need the lock to be released by the access control system - what replaces the 8807FL?
The 8807FL is a mechanical entrance lock with no electrified option. For an electrified mortise lock, the Schlage L9092EU with 03A trim is a heavy duty corridor function mortise lock with electric lock/unlock of the outside lever, request to exit, and 12/24VDC operation for 1-3/4 inch doors. The Command Access ML190 is a heavy duty motorized mortise lock with field selectable EL/EU operation at 24VDC in storeroom function, and the BEST 45HW is a heavy duty wired electromechanical mortise lock with 12V/24V operation.
10) Is the Baldwin 6301 mortise lock a drop-in replacement for the Accentra 8807FL?
No. The Baldwin 6301 is an entry/apartment mortise lock body with a 2-1/2 inch backset, offered knob by knob or as the 6301LS lever by lever, for doors 1-3/4 inch and over. The Accentra 8807FL uses a 2-3/4 inch backset, so the door prep and cylinder location differ and the two are not interchangeable in an existing pocket.
11) I need an anti-ligature mortise lock for a behavioral health unit - is the 8807FL suitable?
The 8807FL uses a Carmel lever, which is a conventional lever profile. For ligature resistant openings, the TownSteel MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, the MRX-A-01 is the arch trim version, and the Marks USA 5PDN is a Grade 1 ligature resistant, ADA compliant hospital passage push/pull paddleset in satin stainless steel.
12) Does the Accentra 8807FL work on a narrow stile aluminum door, and what if it does not?
The 8807FL is built for door thicknesses of 1-3/4 inch to 3-1/4 inch, which is a hollow metal or wood door range rather than a narrow aluminum stile. For aluminum storefront, the Alarm Lock DL1300NW is an electronic mortise lock with keypad made for Adams Rite deadlatches, and the Dormakaba E-Plex 2066 is an electronic pushbutton keyless mortise lock for wide stile doors.
13) What mobile or wireless mortise lock can replace the 8807FL on a 3-hour fire rated opening?
The Accentra 8807FL is UL/cUL listed for 3-hour fire rated doors. Among electronic mortise locks, the Schlage LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader, mobile enabled deadbolt with LED, Greenwich trim, right hand, rated 3 hours. The Schlage LEBMB-ADD is mobile enabled with push button and LED for privacy, office, and apartment functions but is Grade 2.
14) What is a comparable Grade 1 entrance mortise lock from another brand?
The Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with an auxiliary deadlatch, though it is listed for 1-3/4 inch doors only. Corbin Russwin's ML2003 is another Grade 1 mortise lockset on the 1-3/4 inch door range but in classroom function, not entrance. The 8807FL's advantage over both is the 1-3/4 to 3-1/4 inch thickness range if your doors are thicker than standard.
15) I only need a passage or privacy function on some doors, not entrance. Is the 8807 the wrong number?
Right, the 8807FL is the Entrance function with a keyed single cylinder and deadbolt. For a non-keyed opening, the Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating, and the Schlage PM010 is a Grade 1 passage latch mortise lock for 1-3/4 inch doors. For privacy, Cal-Royal's NM8440 is a Grade 1 privacy mortise lockset with deadbolt.
16) Can I use a mortise deadbolt instead of the Accentra 8807FL?
Only if you do not need a latch and lever. The 8807FL is a lever entrance lockset with a latchbolt and a reinforced stainless steel deadbolt in one body. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset and no lever or latch, so it would need a separate latch or push/pull to operate the door. The Kaba Ilco 185 Series is also a deadbolt function mortise lock with no handing.
17) What is the privacy option for restrooms if the entrance function is wrong for that door?
For a bed, bath, or restroom opening, the Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 to 2 inch doors. The Accentra 8807FL is a keyed entrance function and shares the same 2-3/4 inch backset, so a privacy swap on an existing 8807FL prep is straightforward.
18) What should I use on a dormitory or corridor door instead of an entrance mortise lock?
The Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock in the 7900 Series with rose trim and a single cylinder deadbolt. The Accentra 8807FL is entrance function with a single cylinder and is available with either rose or CN escutcheon trim, so trim style is not the deciding factor between them - the function is.
19) Is a lock body alone like the BEST 45H an alternative to the Accentra 8807FL?
They are not the same purchase. The BEST 45H is a heavy duty mortise lock body in public entrance function with field reversible operation, and the 45HCA intruder version is a lockbody as well - both are the chassis without trim. The Accentra 8807FL is supplied with the Carmel lever and a choice of rose or CN escutcheon trim, and is field reversible for handing.
20) Are the Emtek mortise entrance locksets an alternative for a commercial entrance?
The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton, and 3106 Manhattan mortise entrance locksets are dummy function, meaning they are non-operating trim. The Accentra 8807FL is a keyed, commercial rated Grade 1 entrance mortise lock, so the Emtek dummy sets serve inactive leaves rather than a working entrance.
21) What is the office function option with a 2-3/4 inch backset if entrance is not the right spec?
The Hager 3850E is a Grade 1 office function mortise lock with lever and escutcheon, non-keyed, with a 2-3/4 inch backset for 1-3/4 to 2-1/2 inch doors. The Accentra 8807FL shares the 2-3/4 inch backset but is keyed with a single cylinder, so the 3850E is the choice where no key is wanted on that leaf.
22) What finish does the Accentra 8807FL Carmel lever come in?
626 satin chrome across all four configurations. That is the most common commercial finish and it will sit alongside 626 exit devices, closers and cylinders already in most office, school or healthcare buildings without a mismatch.
23) Can I tell from the outside whether the door is locked with the 8800 Series?
Status indicator trim is offered within the 8800 Series to show locked or unlocked at a glance, which is what schools and healthcare facilities usually want on a room that gets secured from inside. The 8807FL as configured with the Carmel lever on CN escutcheon or R rose is the standard non-indicating trim. If you need indication, specify the indicator option when you order. A comparable from another brand is the Marks USA LA318GJ classroom security indicator mortise lockset.
