Accentra 8860FL Grade 1 Dormit...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,141.14
$679.87

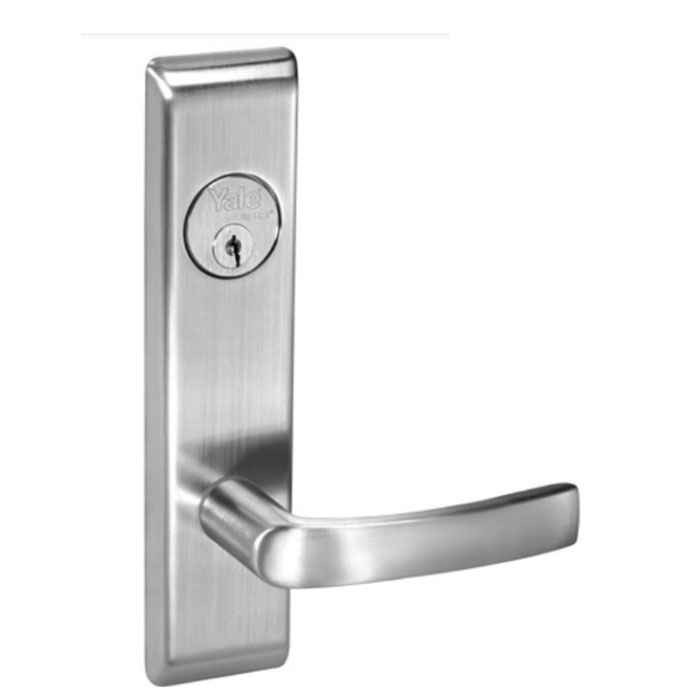

Accentra 8860FL Grade 1 Dormitory or Storeroom Mortise Lock, Monroe Lever

Accentra 8860FL Grade 1 Dormitory Storeroom Mortise Lock with Monroe Lever

(No reviews yet) Write a Review

Model: MOR-8861FL-626
From the 8800 Series Collection
$1,141.14
$679.87
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,141.14
$679.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 8860FL Grade 1 Dormitory Storeroom Mortise Lock with Monroe Lever

Heavy-Duty Commercial Mortise Lock Solution

The Accentra 8860FL Grade 1 Mortise Lock delivers uncompromising strength and durability for demanding commercial applications. This dormitory/storeroom function lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and ANSI/BHMA Grade 1 certification. With field adjustable handing, 2-3/4" backset depth, and compatibility with door thickness from 1-3/4" to 3-1/4", this lock provides professional-grade security with the attractive Monroe lever design.

Professional Features & Benefits

  • Functions available for any industrial or commercial application
  • Field adjustable handing
  • Available in a variety of attractive trims and finishes
  • Status indicator options available to provide peace of mind on the locked/unlocked status of a door
  • Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
  • Thrubolted security head screws offer added protection (Specific to 8800 SL version)
  • UL/cUL listed for 3-hour fire rated doors
  • Heavy-duty escutcheon trim for resistance against damage and vandalism
  • 10-year mechanical warranty
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 3-1/4", 2-3/4" backset depth, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 8800 Series mortise locks deliver professional-grade reliability with reinforced stainless steel deadbolt construction and heavy-duty vandal-resistant trim certified to ANSI/BHMA Grade 1 standards. The comprehensive 10-year mechanical warranty demonstrates the manufacturer's confidence in long-term performance. Engineered for demanding commercial applications where dependable security and durability are essential.

Manufacturer Resources

8800 Series Mortise Locks

Product Specs

Series:
8800 Series
Subcategory:
Lever Locksets
Keyed Function:
Single Cylinder
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Dormitory/Storeroom
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
8860
Collection:
8800 Series
Product Function:
Dormitory/Storeroom
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra MOR-8861FL-626 – Frequently Asked Questions

1) Do I have to order the Accentra 8860FL handed left or right?
No. Handing is field adjustable on the 8860FL, so one lock covers either hand and you set it during install. That makes it easier to stock a single part number across a building instead of splitting inventory by hand.
2) What does the dormitory/storeroom function on the Accentra 8860FL actually do at the door?
It is a keyed single cylinder dormitory/storeroom lock: the outside lever stays locked and is retracted by key, while the inside lever always gives free egress. The deadbolt is stainless steel and is thrown separately, which is what makes it suit dorm rooms, apartments, and storerooms where you want a locked outside lever plus a secondary bolt.
3) Can the Accentra 8860FL go on a 3-hour fire rated door?
Yes, the 8800 Series mortise lock is UL/cUL listed for 3-hour fire rated doors. It is also certified to ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
4) Should I order the CN escutcheon or the rose trim on the Accentra 8860FL?
Both are offered with the Monroe lever. The CN escutcheon is the heavy-duty vandal-resistant plate and is the version that meets Security Grade 1 in the certification; rose trim is the smaller round trim and is the cleaner look on an opening that does not take abuse. For dorms, schools, and multi-tenant corridors, the escutcheon is the one to specify.
5) Can I get the Accentra 8860FL without a cylinder so I can use my own keying?
Yes. The 8860FL is offered less cylinder, which is how most locksmiths and facilities buy it when the building is already on an existing keyway or master system. If you want it supplied ready to key, the other option is a conventional cylinder in the PARA-E1R keyway.
6) What is the closest equivalent to the Accentra 8860FL dormitory mortise lock from another manufacturer?
The Sargent 7925 is the nearest match. It is a Grade 1 heavy duty mortise lock with a corridor/dormitory function, rose trim, and a single cylinder deadbolt, which lines up with the 8860FL's dormitory/storeroom function, Grade 1 rating, and single cylinder keyed design. The Accentra 8860FL is offered with either rose or CN escutcheon trim and the Monroe lever, so trim style is the main thing to confirm when cross-referencing.
7) Will a Baldwin 6310 mortise lock body drop into the same prep as the Accentra 8860FL?
No. The Baldwin 6310 entrance/storeroom mortise lock body uses a 2-1/2 inch backset, while the Accentra 8860FL is a 2-3/4 inch backset lock. The door and frame prep differs, so the 6310 is not a retrofit for an 8860FL opening. The Baldwin 6310 is listed for doors 1-3/8 inch and over and comes in knob by knob or, as the 6310190RRLS, a right hand reverse lever by lever configuration.
8) Can I use an Alarm Lock Trilogy DL2700CR or DL3500CR on the same doors as the 8860FL?
Only on thinner doors. The Alarm Lock DL2700CR and DL3500CR are Grade 1 classroom function electronic mortise locks rated for doors 1-5/8 inch to 1-7/8 inch. The Accentra 8860FL accepts doors from 1-3/4 inch up to 3-1/4 inch, so on thick doors above 1-7/8 inch the Trilogy units are not an option. They are also classroom function rather than dormitory/storeroom.
9) I need to know at a glance whether a dorm room door is locked. Does the 8800 Series offer that?
Status indicator options are available in the 8800 Series to show locked/unlocked state on the door. That is an ordering option rather than something included by default on the standard 8860FL, so it has to be specified.
10) What is a comparable Grade 1 mortise lock to the Accentra 8860FL from another brand?
For a similar dorm/corridor application, Sargent's 7925 is a Grade 1 heavy duty mortise lock with corridor/dormitory function, rose trim, and a single cylinder deadbolt. If you want a straight storeroom function instead, Cal-Royal's NM8080 is Grade 1 with an interchangeable core option but is rated for 1-3/4 inch doors only, where the Accentra covers 1-3/4 up to 3-1/4 inches.
11) Is the Accentra 8860FL an electronic lock or can I add access control to it?
It is a purely mechanical, key-operated mortise lock with no electronics. If the opening needs credential or keypad access, look at an electrified mortise instead, such as the BEST 45HW wired electromechanical mortise lock (12V/24V) or the Command Access ML190 motorized mortise with field selectable fail safe/fail secure on 24VDC.
12) What is the classroom-function alternative to the Accentra 8860FL?
If the opening is a classroom rather than a dorm room, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors. The Cal-Royal NM8070 is another Grade 1 classroom mortise lockset with an auxiliary deadlatch, also for 1-3/4 inch doors. Both change the keyed function from the 8860FL's dormitory/storeroom operation to classroom control.
13) I need a straight storeroom mortise lock, not dormitory. What should I use instead?
The Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option, built for 1-3/4 inch doors. It gives you always-locked storeroom operation without the dormitory side of the Accentra 8860FL's dormitory/storeroom function. Choose the NM8080 when every opening in the run is pure storeroom and your doors are a uniform 1-3/4 inch; the 8860FL covers 1-3/4 inch up to 3-1/4 inch doors.
14) We want keypad or credential access on dorm doors instead of keys. What replaces the 8860FL?
For electronic control in the same mortise prep, the Dormakaba E-Plex E5086 is a Grade 1 entry/egress pushbutton and card mortise lock, and the Schlage LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. The Accentra 8860FL is a mechanical, non-electronic lock keyed to a single cylinder, so either of those is the move when you want codes or credentials rather than a key.
15) The door does not need to lock at all. Is there a cheaper non-keyed mortise lock than the 8860FL?
Yes. For passage openings the Hager 3810E is a Grade 1 passage mortise lock with escutcheon and 2-3/4 inch backset for 1-3/4 to 2-1/2 inch doors, and the 3810S is the same lock with rose trim. The Falcon MA101 is a Grade 1 heavy duty mortise passage lock that is field reversible and fire rated. None of these are keyed, so use them only where no security function is required; the 8860FL is a keyed single cylinder lock.
16) Is a mortise deadbolt like the Sargent 4874 a substitute for the 8860FL?
No. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset and no latch or lever, so it secures a door but does not operate it. The Accentra 8860FL is a full lever lockset with the Monroe lever, a latch, and a stainless steel deadbolt in one 2-3/4 inch backset case. If you need both latching and bolting from a single mortise pocket, the deadbolt alone will not do it.
17) Our behavioral health rooms need anti-ligature trim. What do we use instead of the Monroe lever?
TownSteel's MRX Series is the anti-ligature route: the MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function with satin stainless ligature resistant arch trim. The Marks USA 5PDN is a Grade 1 ligature resistant, ADA compliant hospital passage push/pull paddleset. All three are passage rather than the keyed dormitory/storeroom function of the Accentra 8860FL.
18) What should I specify if the opening needs electric lock/unlock control but the same mortise prep?
The Schlage L9092EU with 03A trim is a heavy duty electric lock/unlock outside lever mortise lock, keyed outside, with request to exit and 12/24VDC operation for 1-3/4 inch doors. Command Access ML190 is a heavy duty motorized mortise lock in storeroom function with field selectable EL/EU operation on 24VDC. Both add access control power to the opening, where the Accentra 8860FL is purely mechanical.
19) What finish does the Accentra 8860FL Monroe lever come in?
626 satin chrome, across all the cylinder and trim combinations. That is the standard commercial finish and it will match most existing 626 exit devices, closers, and hinges already in a school or office building.
20) What is the difference between the Accentra 8860FL and a BEST 45H mortise lock body?
The BEST 45H is sold as a heavy duty mortise lock body with public entrance function and field reversible operation, and the 45HCAINL is a heavy duty 45HCA lockbody with intruder function. Those are lock bodies, so trim is specified separately. The Accentra 8860FL is supplied as a complete dormitory/storeroom lockset with the Monroe lever on rose or CN escutcheon trim, in 626 satin chrome.
21) For a bed/bath or privacy door in the same building, what matches the 8860FL?
Use a privacy function lock rather than dormitory/storeroom. The Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 to 2 inch doors, matching the 8860FL's 2-3/4 inch backset prep.
How fast can I get the Accentra MOR-8861FL-626 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Accentra MOR-8861FL-626 come with a warranty?
Absolutely. The Accentra MOR-8861FL-626 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Accentra MOR-8861FL-626?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Accentra MOR-8861FL-626 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
