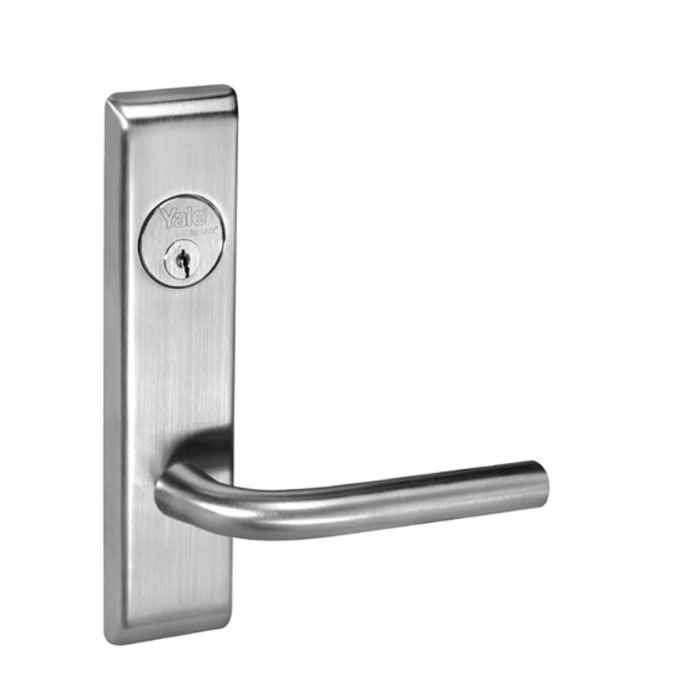

Accentra 8860FL Grade 1 Entrance or Storeroom Mortise Lock, Pinehurst Lever

Accentra 8860FL Grade 1 Entrance Mortise Lock with Pinehurst Lever

(No reviews yet) Write a Review

Model: PNR-8860FL-626
From the 8800 Series Collection
$1,320.25
$786.50
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,320.25
$786.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 8860FL Grade 1 Entrance Mortise Lock with Pinehurst Lever

Heavy-Duty Commercial Mortise Lock Solution

The Accentra 8860FL from the 8800 Series delivers Grade 1 commercial mortise lock performance with field reversible handing and 2-3/4" backset depth. This entrance/storeroom function lock accommodates door thickness from 1-3/4" to 3-1/4" with heavy-duty escutcheon trim and reinforced stainless steel deadbolt construction. UL listed for 3-hour fire rated doors with ANSI/BHMA A156.13 Series 1000 certification for demanding commercial applications.

Professional Features & Benefits

  • Functions available for any industrial or commercial application
  • Field adjustable handing
  • Available in a variety of attractive trims and finishes
  • Status indicator options available to provide peace of mind on the locked/unlocked status of a door
  • Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
  • Thrubolted security head screws offer added protection (Specific to 8800 SL version)
  • UL/cUL listed for 3-hour fire rated doors
  • Heavy-duty escutcheon trim for resistance against damage and vandalism
  • 10-year mechanical warranty
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 3-1/4", 2-3/4" backset depth, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for mortise lock installation.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for mortise lock body and strike plate.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications using provided curved lip strike.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion including lever and deadbolt function.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 8800 Series mortise locks deliver professional-grade reliability with reinforced stainless steel deadbolt construction and heavy-duty escutcheon trim rated for Grade 1 commercial performance. The 10-year mechanical warranty provides long-term protection and confidence. Engineered for demanding commercial applications where dependable security and vandal-resistant performance are essential.

Manufacturer Resources

8800 Series Mortise Locks

Product Specs

Series:
8800 Series
Subcategory:
Lever Locksets
Keyed Function:
Single Cylinder
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Entrance/Storeroom
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
8860
Collection:
8800 Series
Product Function:
Entrance/Storeroom
Lever Design Name:
Pinehurst Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PNR-8860FL-626 – Frequently Asked Questions

1) Do I have to order the Accentra 8860FL by hand?
No. Handing is field reversible on the 8860FL, so one lock covers left and right hand openings. You set it during installation rather than specifying it on the order.
2) What does the entrance/storeroom function on the Accentra 8860FL actually do at the door?
It is the standard secured-entry function: the outside lever is locked and the key retracts the latch, while the inside lever always retracts the latch for free egress. It is a single cylinder, keyed lock with a stainless steel deadbolt in the case, so you get both latch and deadbolt in one mortise body. That makes it the right pick for tenant entries, stock rooms, and back-of-house doors that must stay locked to the public.
3) Can I use the Accentra 8860FL on a 3-hour fire rated door?
Yes. The 8860FL is UL/cUL listed for 3-hour fire rated door openings, so it is usable on rated stair, corridor, and tenant separation doors.
4) Is the Accentra 8860FL Security Grade 1 or just Operational Grade 1?
It is certified to ANSI/BHMA A156.13, Series 1000, Operational Grade 1. Security Grade 1 applies to the 8800FL when ordered with the CN escutcheon (and to the SL8800). So if your spec calls out Security Grade 1, order the escutcheon version rather than the rose.
5) Can I get the Accentra 8860FL without a cylinder so it matches my building keyway?
Yes. It can be ordered less cylinder, which is what you want if you are pinning to an existing masterkey system or using your own cores. Otherwise it comes with a conventional cylinder in the PARA-E1R keyway.
6) What is a comparable Grade 1 mortise lock to the Accentra 8860FL for an entrance or office opening?
The Accentra 8860FL is a Grade 1 mortise lock with entrance/storeroom function and a Pinehurst lever. For a similar keyed entrance opening, the Cal-Royal NM8050 is a Grade 1 office/entrance mortise lockset with auxiliary deadlatch, listed for 1-3/4 inch doors. The 8860FL covers a wider door thickness range of 1-3/4 inch to 3-1/4 inch, so on thicker doors the Accentra is the one that fits.
7) What do I use for a classroom door instead of the 8860FL?
The 8860FL is an entrance/storeroom function and is not a classroom lock. For classroom function, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch. If the room needs a visible indicator, the Marks USA LA318GJ is a Grade 1 classroom security indicator mortise lockset with ANSI strike.
8) Can I use a Baldwin 6310 mortise lock in place of the Accentra 8860FL?
Both are entrance/storeroom function, but the prep is different. The Baldwin 6310 entry/storeroom mortise lock body uses a 2-1/2 inch backset and is knob by knob; the 6310190RRLS is the right hand reverse lever by lever version on the same 2-1/2 inch backset. The Accentra 8860FL uses a 2-3/4 inch backset with a Pinehurst lever, so the two are not drop-in interchangeable in an existing mortise pocket.
9) For a behavioral health room, can I use the 8860FL or do I need anti-ligature trim?
The Accentra 8860FL uses a Pinehurst lever, which is a standard commercial lever shape. Where ligature-resistant trim is required, the TownSteel MRX-A-01 is a Grade 1 heavy duty passage mortise lockset with ligature resistant arch trim in satin stainless for 1-3/4 inch doors, and the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant.
10) I need the lock to release electrically with access control - what replaces the 8860FL?
The Accentra 8860FL is mechanical only. For an access-controlled opening, the Command Access ML190 is a heavy duty motorized mortise lock in storeroom function with field selectable fail safe or fail secure operation on 24VDC, and the BEST 45HW is a heavy duty wired electromechanical mortise lock with 12V/24V operation. The Schlage L9092EU with 03A trim is a heavy duty electric lock/unlock outside lever mortise lock with request to exit on 12/24VDC for 1-3/4 inch doors.
11) Should I order the rose or the escutcheon trim on the Accentra 8860FL?
Both are offered with the Pinehurst lever in 626 satin chrome. The CN escutcheon is the heavy-duty plate, better where doors take abuse or vandalism, and it is the version that carries the Security Grade 1 rating. The R rose is the smaller, cleaner-looking trim for interior openings where that is not a concern.
12) Does a strike come with the Accentra 8860FL mortise lock?
A curved lip strike is supplied with the lock, along with mounting hardware and installation templates for the mortise pocket and frame prep. You still have to route the door for the lock body and prep the frame to the template.
13) What is a good alternative if I need a classroom or privacy function instead of entrance/storeroom?
The 8860FL is entrance/storeroom only. For a Grade 1 classroom mortise lock, the Corbin Russwin ML2003 or the Cal-Royal NM8070 both cover that function on 1-3/4 inch doors. For privacy, the Cal-Royal NM8440 is a Grade 1 privacy mortise lock with deadbolt. Note those alternatives are listed for 1-3/4 inch doors, not the wider thickness range the 8860FL handles.
14) What is the electronic equivalent if I want keypad or credential access on this opening?
The Accentra 8860FL is a mechanical, non-electronic lock. For credential or code access on a mortise prep, the Schlage LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader rated for 3-hour fire doors, and the TownSteel FME-2000 is a Grade 1 heavy duty mortise lockset with RFID for 1-3/4 inch doors. The Alarm Lock DL3500CR is a Grade 1 electronic mortise lock with 300 user codes for 1-5/8 to 1-7/8 inch doors.
15) If I need a storeroom function mortise lock instead of entrance, what should I order?
The Accentra 8860FL is catalogued as an entrance/storeroom function lock. If you need a strict storeroom lock where the outside lever is always locked, the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option, prepped for 1-3/4 inch doors.
16) I do not need the door keyed - is there a non-keyed mortise lock instead of the 8860FL?
The 8860FL is a keyed single cylinder lock. Where no key is needed, the Hager 3810E is a Grade 1 passage mortise lock with escutcheon and 2-3/4 inch backset for 1-3/4 to 2-1/2 inch doors, and the Hager 3850E is a non-keyed office mortise lock with lever and escutcheon on the same backset. Falcon MA101 is another Grade 1 heavy duty mortise passage lock with field reversible operation.
17) Are the Emtek mortise entrance locksets an alternative to the Accentra 8860FL?
No. The Emtek 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function, meaning they are non-operating trim for an inactive leaf. The Accentra 8860FL is a keyed Grade 1 entrance/storeroom lock with a working latch and stainless steel deadbolt, so the Emtek units will not secure the opening.
18) What is the difference between the Accentra 8860FL and a BEST 45H mortise lock body?
The Accentra 8860FL ships as a complete entrance/storeroom lock with Pinehurst lever trim and a choice of rose or escutcheon. The BEST 45HCAC is a heavy duty mortise lock body in public entrance function with field reversible operation, and the 45HCAINL is a heavy duty lock body with intruder function. Those are lock bodies, so trim is specified separately.
19) I need a deadbolt only on this door, not a latch - what should I order instead?
The Accentra 8860FL is a lever lockset with latch and deadbolt together. For deadbolt only on a mortise prep, the Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset, which matches the 8860FL backset. The Kaba Ilco 185 Series mortise lock is also a deadbolt function with no handing.
20) For a dorm or corridor door where the occupant locks from inside, is the 8860FL the right function?
The Accentra 8860FL is entrance/storeroom function. For a dormitory opening, the Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock with rose trim and a single cylinder deadbolt, which is the function normally specified for corridor and dorm rooms.
21) Is there a privacy version for restrooms instead of the keyed 8860FL?
The 8860FL is keyed and not intended for privacy use. For bath or bedroom doors, the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 to 2 inch doors.
22) Can I standardize the whole building on the 8800 Series but use different functions on different doors?
Yes, that is the usual approach with the 8800 Series. Functions are available across industrial and commercial applications, and the trims and finishes carry across, so corridor, tenant entry, and stock room doors can all take the same Pinehurst lever and 626 satin chrome look while each gets the function it needs. Status indicator options exist within the series where staff need to see locked/unlocked at a glance.
23) Is the Accentra 8860FL heavy enough for a high traffic school or hospital corridor?
It is built for that duty. Grade 1 commercial rating, reinforced stainless steel deadbolt, and heavy-duty escutcheon trim meant to take abuse. The listed applications are offices, schools, healthcare, retail, industrial and warehouse, multi-tenant residential, and government buildings.
