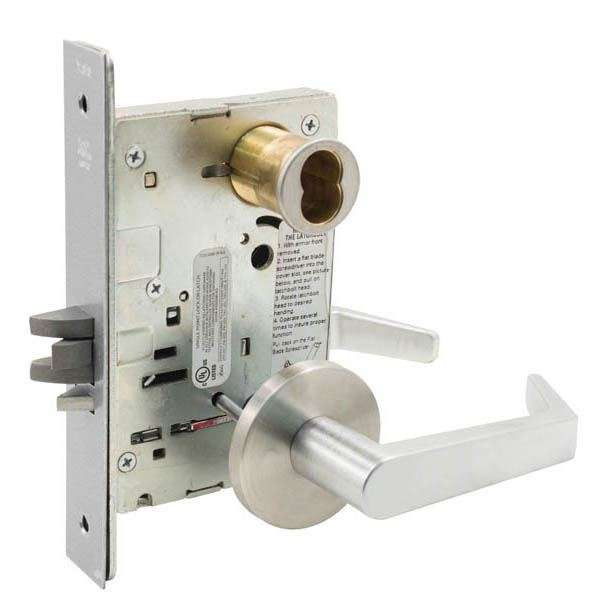

Accentra AUR8807FL Mortise Entrance Lock - Augusta Lever

Accentra AUR8807FL 8800 Series Mortise Entrance Lock with Augusta Lever - Grade 1 Commercial

(No reviews yet) Write a Review

Model: AUR8807FL 626 LESS 1220
From the 8800 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,112.18
$736.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra AUR8807FL 8800 Series Mortise Entrance Lock with Augusta Lever - Grade 1 Commercial

Heavy-Duty Commercial Mortise Lock Solution

The Accentra AUR8807FL 8800 Series Mortise Entrance Lock delivers professional-grade security with Augusta lever design for demanding commercial applications. This Grade 1 certified lock features a 2-3/4" backset, accommodates door thickness from 1-3/4" to 3-1/4", and includes field reversible handing for versatile installation. Built with reinforced stainless steel deadbolt and heavy-duty vandal-resistant trim, this entrance function lock provides reliable access control for office doors requiring selective locking capability.

Professional Features & Benefits

  • Functions available for any industrial or commercial application
  • Field adjustable handing
  • Available in a variety of attractive trims and finishes
  • Status indicator options available to provide peace of mind on the locked/unlocked status of a door
  • Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
  • Thrubolted security head screws offer added protection (Specific to 8800 SL version)
  • UL/cUL listed for 3-hour fire rated doors
  • Heavy-duty escutcheon trim for resistance against damage and vandalism
  • 10-year mechanical warranty
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 3-1/4", standard 2-3/4" backset, and handing as applicable to this mortise lock.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for mortise pocket and strike preparation.
  3. Prepare door and frame by drilling required holes and routing mortise pocket as specified in manufacturer instructions for proper lock body installation.
  4. Install mortise lock body, escutcheon trim, and strike hardware securing all components to door and frame per manufacturer torque specifications.
  5. Adjust lever handing, latchbolt direction, and operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test entrance function operation including stopwork activator, key override, and deadlocking latchbolt to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 8800 Series mortise locks deliver professional-grade reliability with reinforced stainless steel deadbolt construction and heavy-duty vandal-resistant trim certified to ANSI/BHMA Grade 1 standards. The comprehensive 10-year mechanical warranty demonstrates confidence in long-term performance and durability. Engineered for demanding commercial applications where dependable access control and fire safety compliance are essential.

Product Specs

Series:
8800 Series
Subcategory:
Lever Locksets
Keyed Function:
Single Cylinder
Grade:
Grade 1
ANSI/BHMA:
F04
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Lock
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Entry
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
8807
Collection:
8800 Series
Product Function:
Entrance/Office
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra AUR8807FL 626 LESS 1220 – Frequently Asked Questions

1) Do I need to order a left hand or right hand version of the Accentra 8807 mortise lock?
No handing call is needed at order time. The 8807 is field reversible, so the lever handing and latchbolt direction are adjusted during installation. That's useful for a property manager stocking one part number for openings that swing both ways.
2) Can the Accentra 8800 Series mortise lock go on a 3-hour fire rated door?
Yes. The 8800 Series mortise locks are UL/cUL listed for 3-hour fire rated doors, which covers stairwell and corridor openings in most commercial and institutional buildings.
3) What does the entrance/office function on the AUR8807FL actually do at the door?
It is the F04 entrance/office function: the outside lever is locked or unlocked by a stopwork activator inside the lock, the key retracts the deadbolt and gives override from outside, and the inside lever always retracts the latch for free egress. It's a single cylinder lock, keyed outside only. Use it where staff want to leave the door unlocked during business hours and secure it without a key at close.
4) Is the Accentra 8807 Grade 1 for security as well as operation?
Certification is ANSI/BHMA A156.13, Series 1000, Operational Grade 1. Security Grade 1 applies to the 8800FL with CN escutcheon and to the SL8800 version. If a spec sheet calls for Security Grade 1 specifically, the trim choice matters, not just the lock body.
5) What other Grade 1 entrance/office mortise locks could I use instead of the Accentra 8807?
Closest match in function is the Cal-Royal NM8050, a heavy duty Grade 1 office/entrance mortise lockset with auxiliary deadlatch, though it is listed for 1-3/4 inch doors only. The Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon on a 2-3/4 inch backset, non-keyed, covering 1-3/4 to 2-1/2 inch doors, so it works where no key is required. The Accentra 8807 is the one to keep if your doors run thicker than 2-1/2 inches.
6) I need a classroom or storeroom function instead of entrance/office. What should I order?
The 8807 is entrance/office only, so it is the wrong function for a classroom or storeroom opening. For classroom, the Corbin Russwin ML2003 (Grade 1, 1-3/4 inch doors) or Cal-Royal NM8070 covers it; for storeroom, the Cal-Royal NM8080 with interchangeable core option. For privacy on a restroom, the Cal-Royal NM8440 Grade 1 privacy mortise lockset with deadbolt.
7) What is the closest cross-brand equivalent to the Accentra AUR8807FL entrance/office mortise lock?
The Cal-Royal NM8050 is the nearest match by function: a heavy duty Grade 1 mortise lockset listed as Entrance/Office, the same function class as the AUR8807FL, which is a Grade 1 entrance/office mortise lock with the Augusta lever. The difference to check is door thickness - the NM8050 is listed for 1-3/4 inch doors, while the AUR8807FL covers 1-3/4 inch through 3-1/4 inch.
8) What is the difference between the Accentra AUR8807FL and a storeroom function mortise lock?
The AUR8807FL is an entrance/office function lock, so the outside lever can be left unlocked for normal business hours and locked when needed. A storeroom lock keeps the outside lever locked at all times with key access only - the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option, and the Baldwin 6310 is an entrance/storeroom mortise lock body. Choose storeroom for doors that must never be left unsecured.
9) My door is thicker than 2 inches - which mortise locks will still work?
The Accentra AUR8807FL accommodates door thickness from 1-3/4 inch to 3-1/4 inch, the widest range among the comparable entrance-type mortise locks. Among peers, the Baldwin 6301 entry/apartment mortise lock body is listed for 1-3/4 inch and over, while the Cal-Royal NM8050 and Corbin Russwin ML2003 are listed for 1-3/4 inch doors and the Hager 3850E tops out at 2-1/2 inch.
10) What finish does the Accentra AUR8807FL come in, and will it match my other satin chrome hardware?
It is supplied in 626 satin chrome, the standard commercial finish that pairs with 626 closers, exit devices and cylindrical locks already on most office openings. Lever style is the Augusta design on escutcheon trim.
11) Is this a complete lockset or just a mortise lock body?
The AUR8807FL is a complete lever lockset: mortise lock body with escutcheon trim and Augusta levers, plus strike. If you only need to replace a worn lock body behind existing trim, a lock-body-only item like the BEST 45H public entrance mortise body is the kind of part to look at instead.
12) Should I use a mortise lock like this or an electronic mortise lock for an office door?
The AUR8807FL is fully mechanical, no wiring or batteries, keyed with a single cylinder. That suits an office door where one or two keyholders lock up manually. If you need audit trail, user codes or credentials, look at an electronic mortise lock such as the Alarm Lock DL3500CR Trilogy (Grade 1, classroom function) or the TownSteel FME-2000 Series RFID mortise lockset. Note those electronic units are listed for narrower door thicknesses in the Alarm Lock case, 1-5/8 to 1-7/8 inches.
13) How much door prep does the Accentra 8807 need compared with a cylindrical lock?
It needs a routed mortise pocket in the door edge plus cross-bores for the lever spindles and cylinder, and an ANSI strike prep in the frame, all off the manufacturer template, at a 2-3/4 inch backset. A cylindrical lock only needs a bored hole. If your doors are prepped for a bored lock and you don't want to mortise them, a cylindrical unit like the Schlage PC10 Grade 1 is the direction to go instead.
14) Is the deadbolt on this Accentra mortise lock strong enough for a high-traffic tenant entry?
The 8807 uses a reinforced stainless steel deadbolt with a deadlocking latchbolt, and the escutcheon trim is heavy duty and vandal resistant, which is what carries it on high-traffic commercial openings: office buildings, schools, healthcare, retail, multi-tenant residential and municipal work.
15) If the door does not need to be keyed, is there a simpler alternative to the Accentra AUR8807FL?
Yes. For a non-keyed opening, the Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon rated non-keyed on a 1-3/4 inch to 2-1/2 inch door, and the Hager 3810E is a Grade 1 passage mortise lock with escutcheon and a 2-3/4 inch backset. The Accentra AUR8807FL is keyed with a single cylinder, so it is the one to specify only when key control is part of the opening.
16) Can I use an electronic mortise lock in place of the Accentra AUR8807FL on the same door?
Electronic mortise locks are a different install and access model. The Schlage CO-100-MS-40-KP is a Grade 1 standalone keypad mortise lock for 1-3/4 inch doors, the TownSteel FME-2000 is a Grade 1 RFID mortise lockset for 1-3/4 inch doors, and the Alarm Lock DL3500CR is a Grade 1 electronic mortise lock. Note their narrower door ranges - the Alarm Lock DL3500CR covers 1-5/8 inch to 1-7/8 inch, while the mechanical AUR8807FL covers 1-3/4 inch to 3-1/4 inch and requires no power or credential management.
17) Is a Sargent 130KB or 130W a substitute for the Accentra AUR8807FL?
No. The Sargent 130KB and 130W are mortise thumbturns - trim pieces that operate a deadbolt from the inside, not complete locks. The Accentra AUR8807FL is a complete keyed mortise entrance lock with Augusta lever trim and a reinforced stainless steel deadbolt. Order a thumbturn only as trim on an existing mortise body.
18) Will an Emtek Brisbane or Manhattan mortise entrance lockset work in place of the Accentra AUR8807FL?
No. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton, and 3106 Manhattan mortise entrance locksets are dummy function, meaning they are fixed trim with no latching or locking action. The Accentra AUR8807FL is a keyed entrance/office lock certified ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and UL/cUL listed for 3-hour fire rated doors.
19) What mortise lock should I use for a bathroom instead of the Accentra AUR8807FL?
Use a privacy function lock. The Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 inch to 2 inch doors. The Accentra AUR8807FL is keyed entrance/office function, intended for office and tenant doors rather than restrooms.
20) I need a behavioral health or anti-ligature mortise lock - is the Accentra AUR8807FL suitable?
For ligature-resistant openings, look at the TownSteel MRX-L-01, a Grade 1 heavy duty anti-ligature lever mortise lockset in passage function, the MRX-A-01 with ligature resistant arch trim, or the Marks USA 5PDN Grade 1 hospital passage push/pull paddleset. The Accentra AUR8807FL uses a standard Augusta lever with heavy-duty escutcheon trim, which suits commercial office and multi-tenant doors rather than ligature-sensitive rooms.
21) Does the Accentra AUR8807FL include a lock body and trim, or do I need to order trim separately like with the BEST 45H?
The Accentra AUR8807FL is supplied as a complete mortise entrance lock with Augusta lever and heavy-duty escutcheon trim. The BEST 45HCAC public entrance and 45HCAINL intruder items are heavy duty mortise lock bodies, and the Baldwin 6301LS and 6310190RRLS are mortise lock bodies as well - with those you specify trim to match the opening.
22) For a dormitory or corridor door, is there a better fit than the Accentra AUR8807FL?
The Sargent 7925 is a Grade 1 heavy duty corridor/dormitory exit function mortise lock with rose trim and a single cylinder deadbolt, which suits doors that need a separate deadbolt thrown from inside. The Accentra AUR8807FL is entrance/office function with a single cylinder and a stopwork activator for selective locking of the outside lever.
23) I need access control tied to a card reader - what mortise lock replaces the Accentra AUR8807FL?
For credential-based access, the Schlage LEMD-GRW is a Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader rated for 3-hour fire doors, and the Dormakaba E-Plex E5086 is a Grade 1 pushbutton/card mortise lock. The Accentra AUR8807FL is a mechanical, non-electronic lock and is UL/cUL listed for 3-hour fire rated doors as well, so the fire rating is not what separates them - the credential system is.
24) Can I see at a glance whether the door is locked with the Accentra 8800 Series?
Status indicator options are offered in the 8800 Series to show locked/unlocked state, but the AUR8807FL as configured is a standard entrance/office lock with Augusta lever on escutcheon. If an indicator is a requirement, specify an indicator variant of the series, or look at the Marks USA LA318GJ classroom security indicator mortise lockset.
