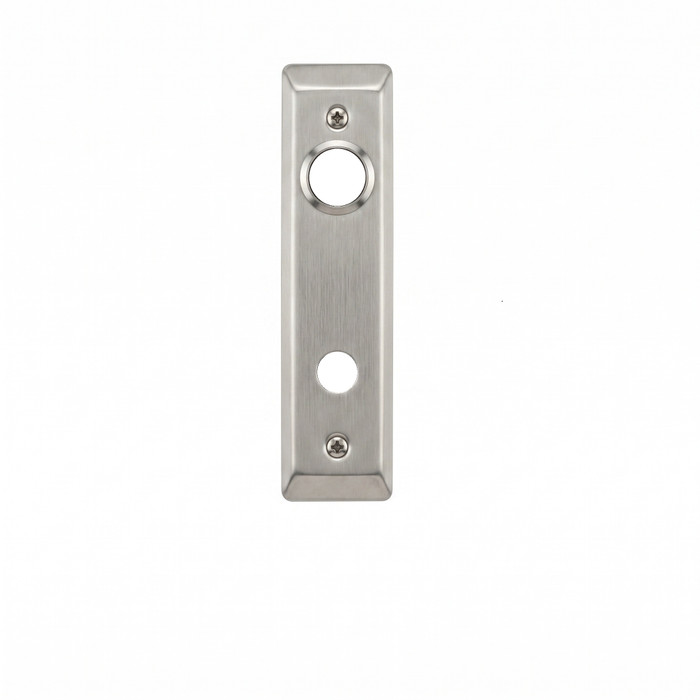

Accentra CN88-208 - 8800 Mortise Outside Escutcheon, Cylinder and Grip

8800 Series

Mortise Locks

Yale® 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free. When you can’t compromise on the quality of your security, Yale Works for You℠. MicroShield® As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silverbased antimicrobial coating designed to inhibit the growth of bacteria. MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Heavy-Duty Outside Mortise Escutcheon

Benefits

• Superior Security: Features a stainless steel reinforced deadbolt for maximum protection.

• Vandal Resistant: Heavy-duty trim prevents physical damage, while the lack of visible screws acts as a strong deterrent to tampering.

• Maximum Durability: Built with a wrought steel, zinc-dichromated case to resist abuse and environmental wear.

• Flexible Installation: Field-reversible lever handing and latchbolt simplify the setup process.

Product Features

• Certified Strength: ANSI/BHMA Grade 1 certified to ensure a long life-cycle and consistent performance.

• Fire Safety: UL/cUL listed for use on 3-hour fire-rated doors.

• Premium Materials: Includes nickel-plated components and heat-treated solid steel hubs for added structural integrity.

• Comprehensive Coverage: Backed by a 10-year mechanical warranty.

Technical Specifications

• Backset: 2-3/4" only.

• Door Thickness: Standard 1-3/4"; compatible with doors up to 3-1/4" thick.

• Deadbolt: 1" throw, cast stainless steel.

• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction design.

• Armor Front Dimensions: 8" x 1-1/4".

• Strike: 1-1/4" curved lip strike standard (Model 2815).

• Finish: 626/US26D – Satin Chrome.

Compatibility

Designed specifically for use as a part/component within the Parts/Accessories Series. This outside mortise escutcheon is compatible with the following models:

• 8800 Series: 8805, 8807, 8808, 8809, 8822, 8823, 8824, 8829, 8832, 8840, 8847, 8860, 8861, 8867, 8890, 8891, 8896, 8897, 8898, 8899.

• Enhanced Models: 8808-2, 8811-2, 8812-2, 8817-2, 8818-2, 8830-2, 8860-2, 8894-2, 8895-2, 8896-2, 8897-2, 8898-2, 8899-2.
