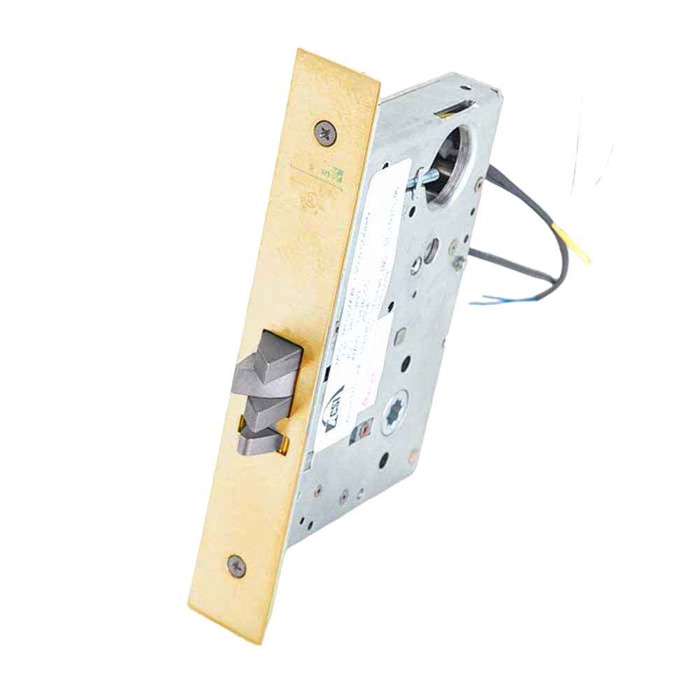

ACSI ACSI M1510M-AE-1-ML2055 - Corbin Russwin 2000 Series Classroom Mortise Lever Lock Body Modified with Fail Safe Operation, Authorized Egress, Motor Controlled ACSI-M1510M-AE-1-ML2055-LL

ACSI M1510M-AE-1-ML2055 - Corbin Russwin 2000 Series Classroom Mortise Lever Lock Body Modified with Fail Safe Operation, Authorized Egress, Motor Controlled

(No reviews yet) Write a Review

Model: ACSI-M1510M-AE-1-ML2055-LL-626
From the 1500 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$886.60
$539.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI M1510M-AE-1-ML2055-LL CORBIN RUSSWIN 2000 SERIES OFFICE, ENTRY MORTISE LEVER LOCK FAIL SAFE AUTHORIZED EGRESS OVERVIEW

M1510M-AE-1-ML2055-LL Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled L Rose L Lever Design Authorized Egress. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Body Modified with Fail Safe Operation (Power Lock), Authorized Egress (Request to Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled.

ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.

Buy the ACSI M1510M-AE-1-ML2055-LL Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled L Rose L Lever Design Authorized Egress for easy installation and dependable door hardware solution.

ACSI M1510M-AE-1-ML2055-LL CORBIN RUSSWIN 2000 SERIES OFFICE, ENTRY MORTISE LEVER LOCK FAIL SAFE AUTHORIZED EGRESS PRODUCT FEATURES

  • Function: 1510M AE-Fail Safe w/Authorized Egress
  • Product Type: Lock Part/Accessory
  • For Use With: Corbin Russwin 2000 Series Mortise Locks
  • Handle Type: Lever
  • ADA Compliant: No
  • Standards: UL Listed; California State Fire Marshall Approved; Continuous Duty Rated
  • Function Family: Part/Component
  • Features: Motor Controlled; 12/24 V Operation; Low Power Consumption; Unlocks Outside Lockset in the Event of a Power Failure
  • Manufacturer Parent: ACSI

ACSI-M1510M-AE-1-ML2055-LL ELECTRIFIED MORTISE LOCKS AVAILABLE CONFIGURATION

ACSI M1510M-AE-1-ML2055-LL Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled L Rose L Lever Design Authorized Egress
ACSI M1510M-AE-1-ML2055-LL-605 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 605 - Bright Brass
ACSI M1510M-AE-1-ML2055-LL-605-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 605 - Bright Brass
ACSI M1510M-AE-1-ML2055-LL-606 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 606 - Satin Brass
ACSI M1510M-AE-1-ML2055-LL-606-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 606 - Satin Brass
ACSI M1510M-AE-1-ML2055-LL-612 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 612 - Satin Bronze
ACSI M1510M-AE-1-ML2055-LL-612-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 612 - Satin Bronze
ACSI M1510M-AE-1-ML2055-LL-613 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 613 - Satin Bronze Oil-Rubbed
ACSI M1510M-AE-1-ML2055-LL-613-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 613 - Satin Bronze Oil-Rubbed
ACSI M1510M-AE-1-ML2055-LL-625 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 613E - Dark Oxidized Satin Bronze
ACSI M1510M-AE-1-ML2055-LL-625-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 613E - Dark Oxidized Satin Bronze
ACSI M1510M-AE-1-ML2055-LL-626 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 629 - Bright Stainless Steel
ACSI M1510M-AE-1-ML2055-LL-626-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 629 - Bright Stainless Steel
ACSI M1510M-AE-1-ML2055-LL-630 Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 630 - Satin Stainless
ACSI M1510M-AE-1-ML2055-LL-630-LC Corbin Russwin 2000 Series Mortise Lock Fail Safe Authorized Egress 630 - Satin Stainless

Product Specs

Series:
1500 Series
Collection:
1500 Series
Product Type:
Electronic Mortise Locks
ADA Compliant:
No
Features:
Motor Controlled, 12/24 V Operation, Low Power Consumption, Unlocks Outside Lockset in the Event of a Power Failure
Subcategory:
Electrified Mortise Locks
Commercial/Residential:
Commercial
UL Listing Type:
UL Listed, California State Fire Marshall Approved, Continuous Duty Rated
Lock Type:
Mortise
Electronic:
Yes
Compatibility:
Corbin Russwin 2000 Series Mortise Locks
Handle Type:
Lever
Lock Function:
Part/Component
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Function:
Part/Component
Product Category:
Mechanical Locks
Department:
Door Hardware

ACSI ACSI-M1510M-AE-1-ML2055-LL-626 – Frequently Asked Questions

1) What does the ACSI M1510M-AE-1-ML2055 lock body actually do when the power drops?
It unlocks. The M1510M-AE-1-ML2055 is a fail safe (power lock) conversion of a Corbin Russwin 2000 Series mortise lock body, so on power failure the outside lockset unlocks and the door is free to enter. That is the behavior you want on a stairtower or a controlled area where people have to be able to get back into the building if the panel or power goes down. If your opening needs to stay locked from the outside when power is lost, this is the wrong device and you need a fail secure version instead.
2) What does authorized egress mean on an electrified mortise lock?
Authorized egress is request-to-exit signalling. Turning the inside lever to leave sends a signal out of the lock so your access control system knows the exit was legitimate and does not read it as a forced door. Free egress from inside is always mechanical on this lock body, the electronics only control the outside (secure side) trim. That combination, latching plus monitored exit, is why these get specified on stairtowers and controlled areas rather than a plain maglock.
3) Is the ACSI M1510M-AE-1-ML2055 UL Listed and accepted for fire doors in California?
UL Listed, California State Fire Marshal approved, and continuous duty rated. Those three are the ones that come up when an institutional spec or a California AHJ reviews an electrified opening on a stairtower. Worth knowing on the accessibility side: this lock body is not ADA compliant, so if your opening has to meet accessible operation requirements you will need to resolve that with the trim and the specifier before you order.
4) Should I use a motor controlled or a solenoid controlled electric mortise lock?
ACSI's 1500 Series comes both ways and the M1510M is the motor controlled one. Motor control moves the locking element with a motor and then rests, so it draws power only during the transfer, which matters when you are running a long run of wire or stacking several openings on one supply. Solenoid control holds an energized coil and is the more familiar choice where an installer wants the simplest possible driver. Either way you get remote electric locking and unlocking that still conforms to life safety codes because egress stays mechanical.
5) What finishes does the ACSI M1510M-AE-1-ML2055 come in for matching the rest of my building's doors?
Seven finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright polished chrome, 626 satin chrome, and 630 satin stainless. For a property manager standardizing a stairwell or a floor, 626 satin chrome and 630 satin stainless are the two that match most existing commercial lever hardware. Order the finish that matches the trim already on the opening, since the body finish needs to agree with the rose and lever you are keeping.
