Adams Rite 1000 Series Turns

1000 SERIES TURNS

The 1000 Series Turns are designed to operate Adams Rite MS1847® Deadlock and the 5017 Wood Door Deadlock.

FUNCTION

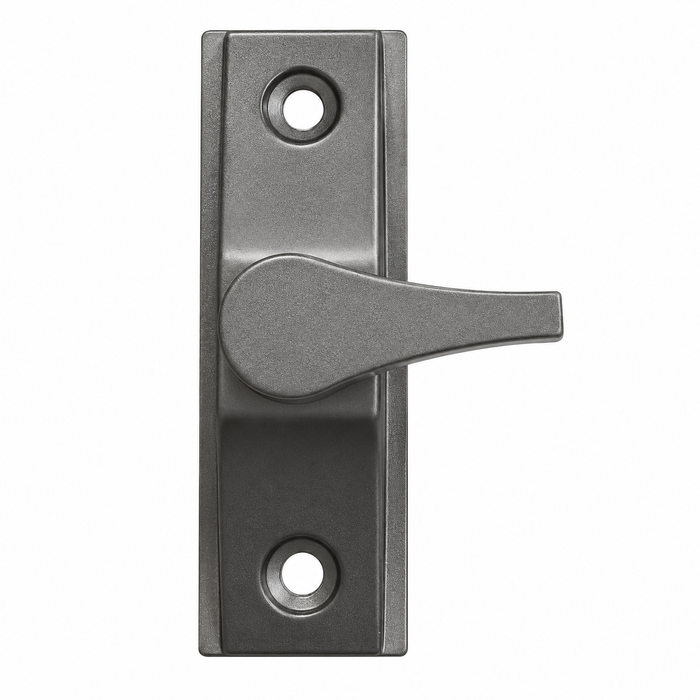

1000 Turns are designed to operate Adams Rite MS®1847 Deadlocks and 5017 Wood Door Deadlock. 1000-11 and 1000-21 have a rectangular escutcheon for mounting directly on door. 1000-01 and 1000-02 are without escutcheon, designed for easy push-nut mounting to door pull or other trim plate.

FEATURES & BENEFITS

Materials: Turn Lever is zinc alloy. Escutcheon is stainless steel. Trim finish 130 Clear to match 628 Clear Anodized.

Spindles: Hardened steel, plated for corrosion resistance. First dash number in order guide indicates spindle parallel or perpendicular to turn lever (turn drawings below). Second dash number indicates spindlelength “L” (see dash table on attached catalog page download).

Turn

• 1004 Turn has a longer, more ergonomically-friendly turn lever.

• 1015 Turn is available with 1016 Blank Plate for doors from 5/8" [15.9 mm] to 2-1/4" [57.2 mm] thickness. Without blank plate turn available (for use with cylinder pull) on doors from 7/16" [11.1 mm] to 2" [50.8 mm] thickness.

• Standard finish 130 Clear to match 628 Clear Anodized. 1015 Turn for use with 5017 Wood Door Deadlock is specifically designed for wood door applications.1016 Blank Plate available separately.

Standard Package: Individually packaged. The -11 and -21 are assembled with escutcheon. The-01 and -02 are unassembled, include turn, spindle, washer and push nut for assembly on the door pull plate.

Shipping Weight: 1/4 lb [0.11 kg].

OPTION

• The availability of both perpendicular and parallel drives in these turns, coupled with the three hub drive positions of the MS1847 lock, provides several options.

• Choice of turn drive position relates directly to the particular lock hub drive position. Special care in specifying both the proper turn and lock in ordering is recommended.

• Chart (in attached catalog page download)  shows turn positions relative to lock hub positions. Broken line indicates direction of travel (45°) to retract bolt
